Hertel C.40W.0238 Taper Length Drill 3/32 in Hss

Product Description

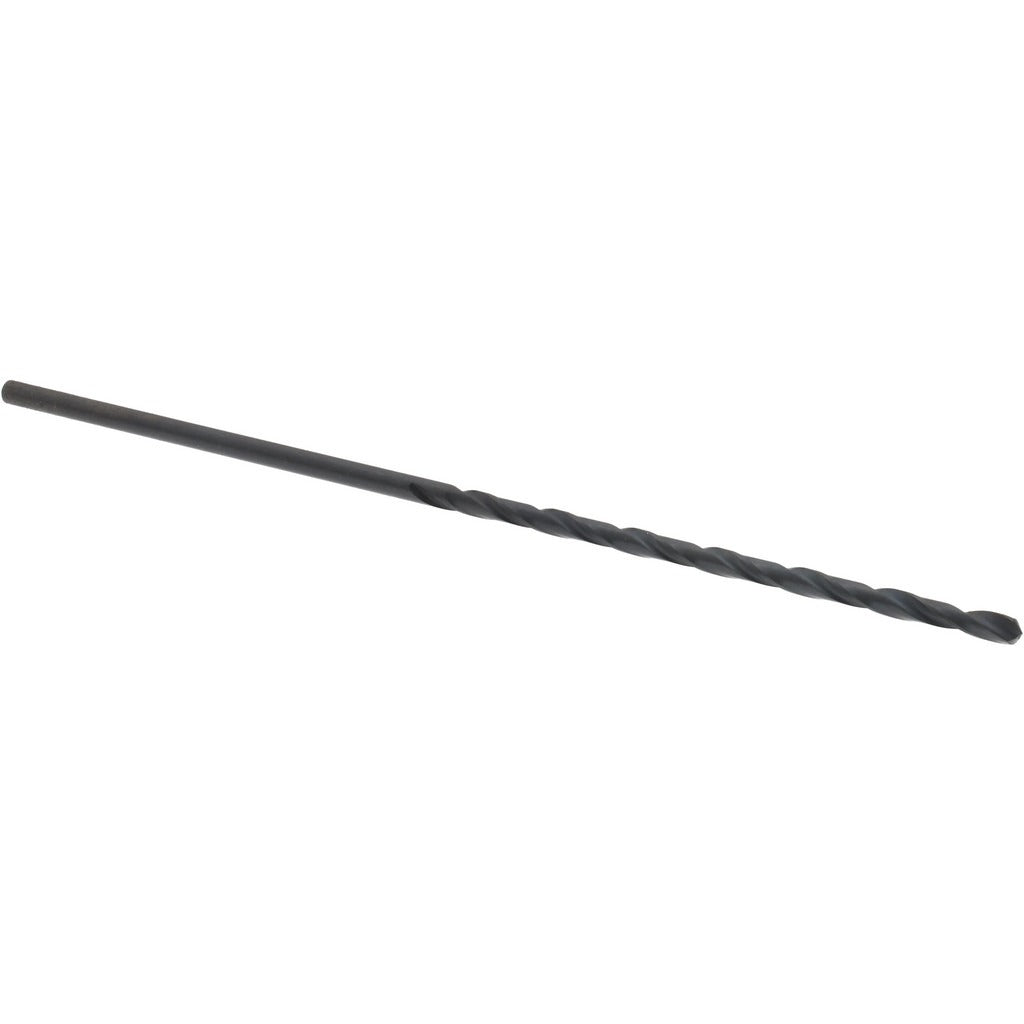

The HERTEL C.40W.0238 is a taper length twist drill bit machined from high-speed steel (HSS) with a black oxide finish. It carries a 3/32 inch (0.0938 inch) diameter, a standard 118-degree split point, and an overall length of 4.25 inches. The taper length body provides more reach than a jobber-length bit without sacrificing rigidity, making it well suited for drilling through thin stock, sheet metal, and structural steel where a standard-length bit falls short. The black oxide surface finish reduces friction and provides light corrosion resistance during service. This bit is sold individually and is intended for professional machining and fabrication environments.

This drill bit is used in general metalworking, fabrication shops, maintenance and repair operations, and light manufacturing. Its straight-cylindrical shank seats in standard three-jaw drill chucks on benchtop drill presses, CNC drilling centers, and handheld power drills. The right-hand spiral flute geometry and web-thinned point are appropriate for drilling mild steel, aluminum, brass, cast iron, and similar materials. The 2.25-inch flute length supports chip evacuation in moderate-depth holes.

Key Features

• HSS construction provides toughness and heat resistance for drilling ferrous and non-ferrous metals
• Black oxide finish reduces friction and offers light corrosion resistance
• 118-degree standard point angle suits a wide range of common metal and plastic materials
• Web-thinned, tapered web configuration reduces thrust and improves point penetration
• Taper length body gives added reach compared to jobber-length equivalents of the same diameter
• Straight-cylindrical shank fits standard drill chucks without adapters

Compatibility

Designed as a taper length replacement drill bit for use in standard three-jaw drill chucks accepting a 3/32 inch straight shank, suitable for drill presses, CNC drilling equipment, and portable power drills in metalworking and fabrication applications.

Installation Notes

Installed by machinists, tool-and-die professionals, and maintenance technicians. Secure the shank fully into the chuck and confirm it is centered before applying power. Always wear appropriate eye protection and secure the workpiece firmly before drilling. Do not exceed the recommended RPM range for the material and bit diameter being used.
