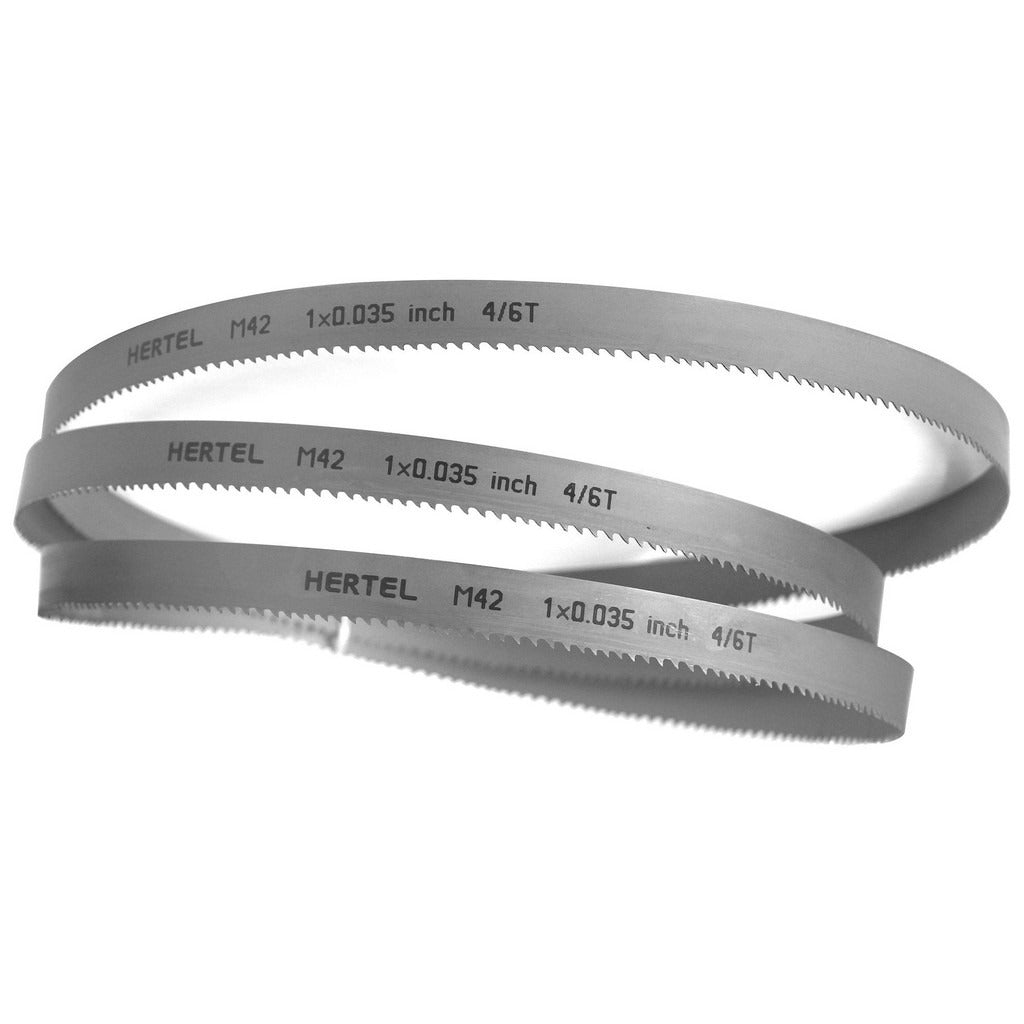

Hertel 96153 Bi-metal Band Saw Blade 1 in 4-6 Tpi

Product Description

The HERTEL 96153 is a welded bi-metal band saw blade designed for demanding metal-cutting applications in industrial and fabrication environments. The blade measures 10 feet 10 inches in total length and 1 inch in width, with a thickness of 0.035 inches. It runs a variable-pitch pattern at 4-6 teeth per inch, which reduces harmonic vibration and helps prevent tooth stripping on varied cross-sections. The tooth form is a duplex configuration, and the cutting teeth are made from M42 high-speed steel — an 8-percent cobalt HSS alloy that holds an edge at elevated cutting temperatures. Licensed metalworking technicians and industrial maintenance crews are the primary installers of this blade type.

This blade is suited for production band saw operations cutting structural steel, alloy steel, stainless steel, and similar ferrous materials. The bi-metal construction bonds a hardened M42 HSS tooth edge to a flexible alloy steel backer, making it appropriate for both solid bar stock and structural profiles. The variable 4-6 TPI pitch is well matched to medium-section cuts where a constant-pitch blade would generate chatter or uneven surface finish. It is sold individually and is intended for band saws accepting a 130-inch loop blade in a 1-inch width.

Key Features

• M42 high-speed steel teeth with 8-percent cobalt content for heat and wear resistance
• Bi-metal construction — HSS tooth edge bonded to flexible alloy steel backer for durability under flex fatigue
• Variable 4-6 TPI pitch reduces vibration and tooth loading on varied cross-sections
• Duplex tooth form for efficient chip clearance in metal cutting
• 0.035-inch blade thickness for compatibility with standard 1-inch band saw guide assemblies
• Factory-welded loop — ready to mount with no field joining required

Compatibility

Designed as an OEM-style replacement band saw blade for industrial band saws accepting a 130-inch loop in a 1-inch width with 0.035-inch blade thickness.

Installation Notes

Installation should be performed by qualified personnel following the band saw manufacturer's blade-change procedure. Disconnect and lock out the machine from its power source before removing or mounting any blade. Verify wheel diameter, blade guide spacing, and tension settings match the blade width and thickness before powering the saw. Blade tension and guide alignment directly affect blade life and cut accuracy — follow the saw manufacturer's specifications for these settings.
