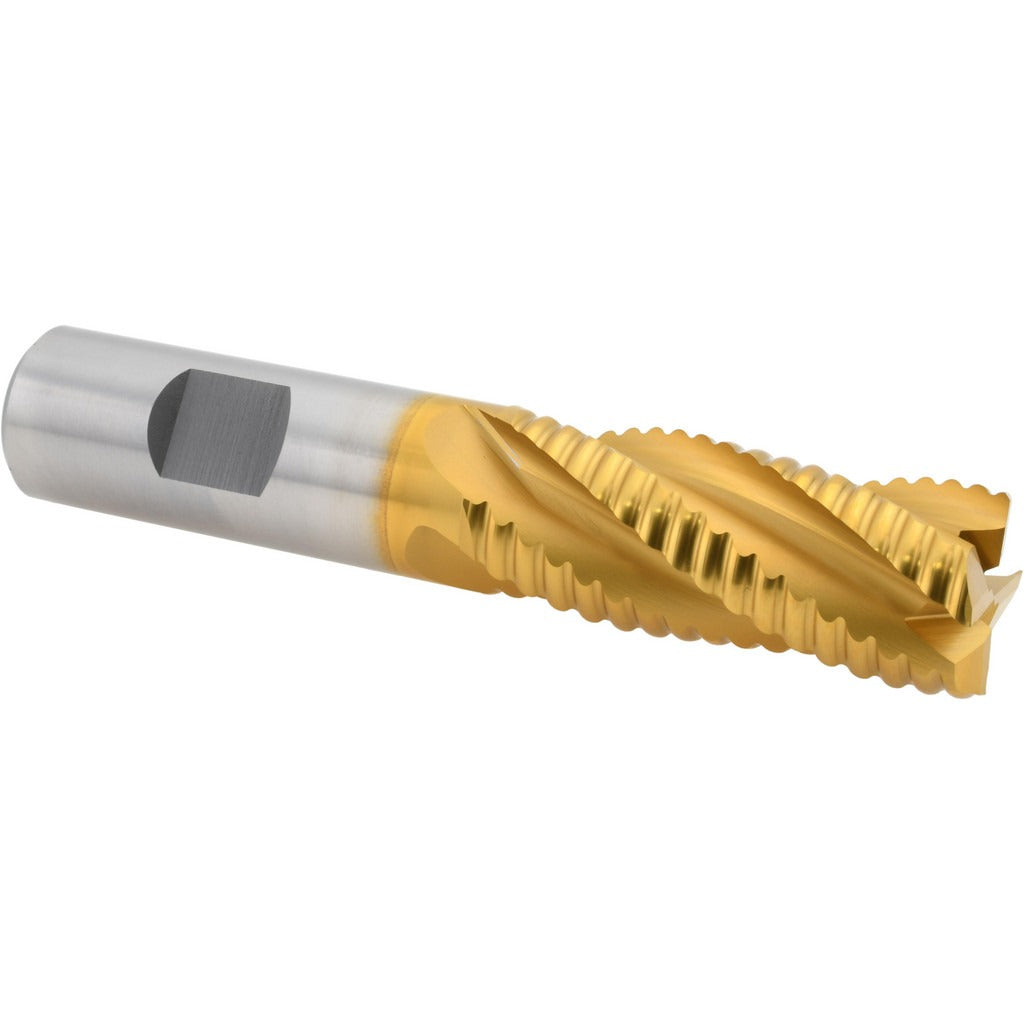

Hertel 91193102 Roughing End Mill 13/16 in Cobalt Tin

Product Description

The HERTEL 91193102 is a single-end roughing end mill designed for aggressive material removal in milling applications. Built from M42 cobalt high-speed steel, it carries a TiN coating and features a coarse-pitch flute geometry that breaks chips efficiently and reduces cutting forces at the tool. The cutter measures 13/16 inches (0.8125 inches) in diameter with a 3/4-inch shank, a 1-7/8-inch length of cut, and a 4-1/8-inch overall length. Four right-hand flutes and right-hand cutting direction are standard. Center-cutting geometry allows plunge entry. Licensed machinists and tool-and-die professionals are the primary users of this tool.

This roughing end mill is suited for roughing passes in ferrous and non-ferrous metals on vertical mills, knee mills, and CNC machining centers. The coarse pitch removes stock quickly before a finishing pass is made with a standard end mill. The TiN coating extends tool life in steel, cast iron, and similar materials. The 3/4-inch straight shank seats in standard R8 collets, end mill holders, and Weldon-flat holders common in job shop and production environments.

Key Features

• M42 cobalt HSS construction for heat and wear resistance in ferrous materials
• TiN coating reduces friction and extends cutting life
• Coarse-pitch flute geometry breaks chips and lowers cutting forces on heavy roughing passes
• Center-cutting design allows direct plunge entry without pre-drilling
• Right-hand cut and right-hand flute orientation for standard spindle rotation
• Single-end configuration with 4-flute geometry balances chip evacuation and rigidity

Compatibility

Designed as a standard roughing end mill with a 3/4-inch straight shank, compatible with R8 collets, Weldon-flat end mill holders, and other standard 3/4-inch tool-holding systems used on manual and CNC milling machines.

Installation Notes

A licensed machinist or tooling professional should install and operate this end mill. Ensure the machine spindle is fully stopped and locked out before changing tooling. Seat the shank fully in the holder and verify runout before beginning a cut. Follow shop safety standards and machine manufacturer guidelines for speed and feed selection based on workpiece material.
