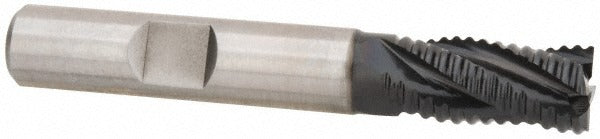

Hertel 91192625 Roughing End Mill 3/8 in 4 Flute Cobalt

Product Description

The HERTEL 91192625 is a single-end roughing end mill designed for aggressive material removal in milling operations. Built from M42 cobalt high-speed steel and coated with TiAlN for heat and wear resistance, this tool handles tough ferrous materials at elevated cutting speeds. The coarse pitch flute geometry breaks up chips along the cutting edge, reducing vibration and cutting forces compared to standard end mills. At 3/8 inch diameter with a 3/4 inch length of cut and 2.5 inch overall length, it fits standard tool holders used in vertical mills, knee mills, and CNC machining centers. Machinists and toolroom operators use this type of end mill for roughing passes before finishing.

This end mill is suited for roughing operations in ferrous and difficult-to-machine alloys where chip control and tool life under heat are priorities. The 3/8 inch shank diameter matches the mill diameter, allowing direct mounting in standard collet chucks or end mill holders. The right-hand cut and right-hand flute direction are the conventional configuration for most vertical and horizontal milling setups. The center-cutting geometry allows plunge entry in addition to peripheral cuts.

Key Features

• M42 cobalt HSS construction for improved red hardness and wear resistance over standard M2 HSS
• TiAlN coating extends tool life in high-temperature cutting conditions
• Coarse pitch roughing profile reduces cutting forces and manages chip load on each flute
• Center-cutting design permits direct plunge entry without a pilot hole
• Right-hand cut, right-hand helix — standard orientation for most milling machines
• Single-end configuration with 3/4 inch length of cut suitable for shallow-to-moderate depth passes

Compatibility

Designed for use in standard 3/8 inch collet chucks, end mill holders, and milling arbors on vertical mills, knee mills, and CNC machining centers.

Installation Notes

Installation and tool changes must be performed with the machine spindle fully stopped and locked out per OSHA lockout/tagout procedures. Seat the shank fully in the holder and torque the retention screw or collet nut to the tool holder specification. Inspect the cutting edges for chips or wear before each use. Verify spindle speed and feed rate are within the recommended range for the workpiece material before initiating a cut.
