Hertel 8850571 Turning Insert TPG322T00320 HP610CA Ceramic

Product Description

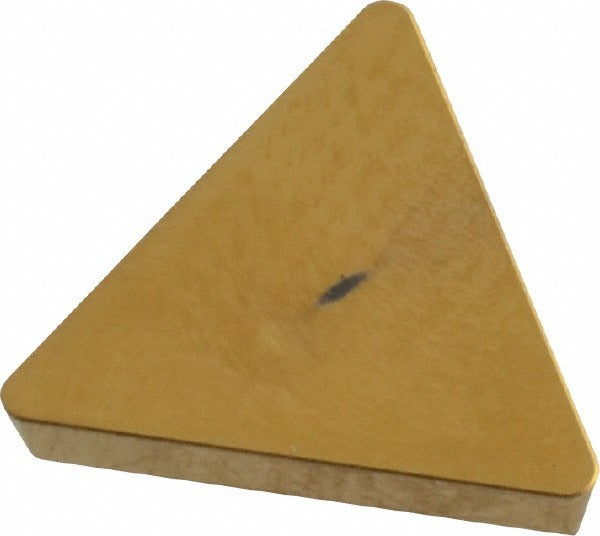

The HERTEL 8850571 is a TPG-style ceramic turning insert with a TiN (titanium nitride) PVD coating, designed for precision metal cutting on CNC and manual lathes. The insert features a 60-degree triangular shape, a 3/8-inch inscribed circle, and a 1/32-inch corner radius, making it well-suited for finishing and semi-finishing operations on hard or abrasive workpiece materials. At 0.63 inches in length and 1/8 inch thick, the insert fits standard TPG toolholders and uses a clamp-style holding method. The neutral hand orientation allows flexible mounting in a range of turning setups. Machining professionals and toolroom technicians are the primary installers.

This insert is applied in turning operations where ceramic cutting grades offer thermal and wear resistance advantages over carbide. Typical use cases include machining hardened steels, cast iron, and heat-resistant alloys at elevated cutting speeds. The HP610CA ceramic grade with TiN coating is suited for dry or minimally lubricated cutting environments where heat generation is a factor. The positive rake geometry and chip breaker-neutral designation (style T00320) support controlled chip flow during continuous or light-interrupted cuts on production lathes.

Key Features

• Ceramic insert material with TiN PVD coating for extended wear resistance
• TPG insert style with clamp-style holding method for secure seating in compatible toolholders
• 60-degree triangular shape provides three usable cutting edges per insert
• 1/32-inch corner radius for semi-finishing and finishing passes
• Positive rake geometry reduces cutting forces on light-duty and finishing cuts
• Neutral hand orientation compatible with left-hand and right-hand toolholder configurations

Compatibility

Designed as an OEM-style replacement insert for toolholders accepting TPG-style turning inserts with a 3/8-inch inscribed circle and clamp-style holding.

Installation Notes

Installation is performed by machinists or toolroom technicians on a powered-down lathe with the spindle locked and all motion fully stopped before changing inserts. Use the appropriate clamp and torque wrench per the toolholder manufacturer specifications to secure the insert without over-stressing the ceramic body. Ceramic inserts are brittle and should not be used for heavy interrupted cuts or conditions with significant vibration. Inspect the insert seat for chips or debris before seating a new insert to ensure proper support and edge presentation.
