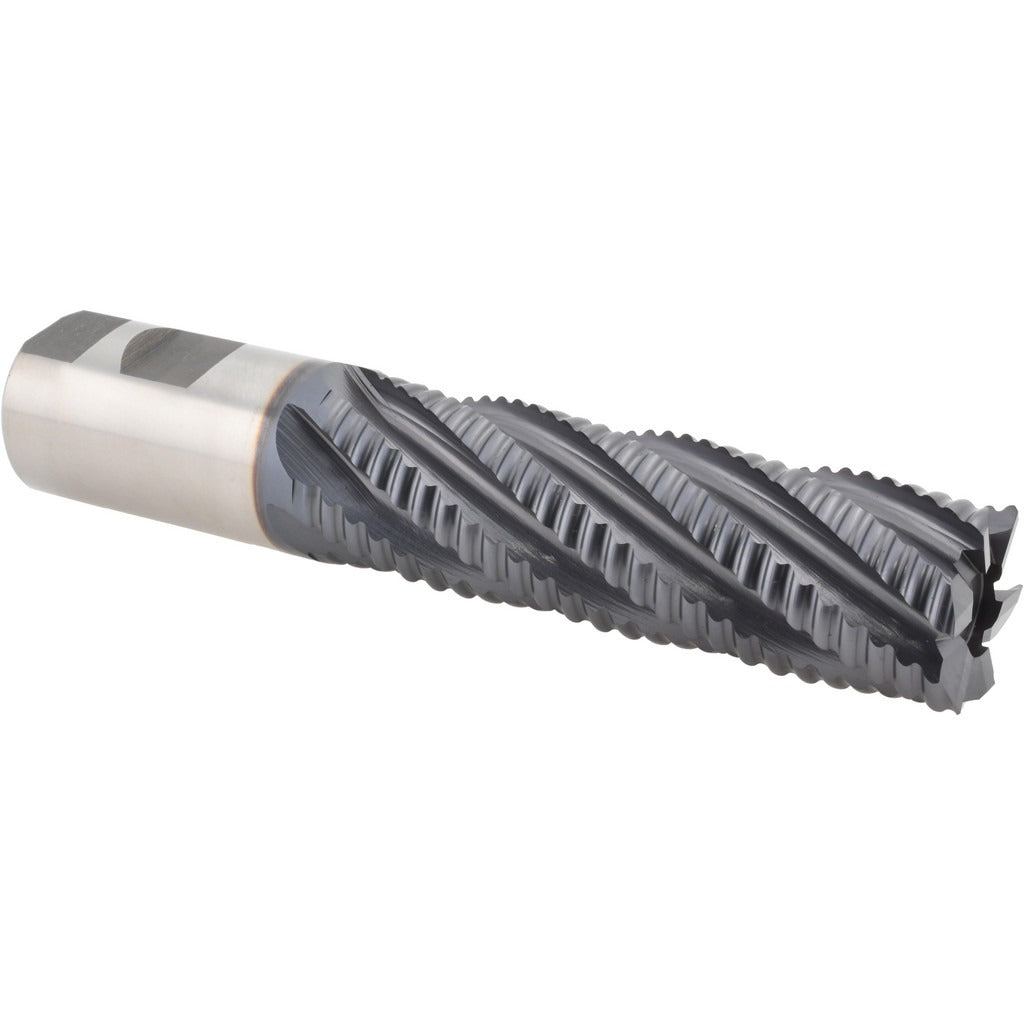

Hertel 87144770 Roughing End Mill 1-1/4 in 6 Flute Cobalt

Product Description

The HERTEL 87144770 is a single-end roughing end mill designed for aggressive material removal in metal-cutting applications. Built from M42 cobalt high-speed steel with a TiCN coating, it delivers elevated heat and wear resistance compared to standard HSS tooling. The cutter measures 1.25 inches in diameter with a 4-inch length of cut and a 6-1/2-inch overall length. Six right-hand flutes with a coarse pitch geometry break chips efficiently and reduce cutting forces during heavy roughing passes. Machinists and tool-and-die professionals rely on this geometry for hogging stock in ferrous and high-temperature alloys.

This end mill is suited for roughing operations on machining centers, vertical mills, and manual knee mills running ferrous metals, stainless steel, and similar materials. The coarse pitch flute design handles deep axial cuts where chip evacuation is critical. The 1.25-inch shank diameter matches the cutter diameter for direct ER or side-lock collet clamping without a reduction adapter. It is a right-hand cutting, right-hand flute tool intended for conventional or climb roughing passes before a finishing operation.

Key Features

• M42 cobalt HSS substrate for elevated red hardness in demanding materials
• TiCN coating extends tool life and reduces friction at the cutting edge
• 6-flute coarse pitch design promotes aggressive chip breaking and stock removal
• 4-inch length of cut accommodates deep pocket and slot roughing operations
• 1.25-inch shank diameter matches cutter diameter for rigid, concentric clamping
• Right-hand cut and right-hand flute geometry for standard spindle rotation

Compatibility

Designed as an OEM-style replacement or direct-fit roughing end mill for standard 1-1/4-inch toolholders, ER collet chucks, and side-lock holders used in general machining applications.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer's clamping torque and runout specifications. De-energize and lock out the machine spindle before installing or removing the cutter. Verify tool projection and runout with a dial indicator before beginning a cut. This is a non-centercutting tool and is not suitable for plunge entry.
