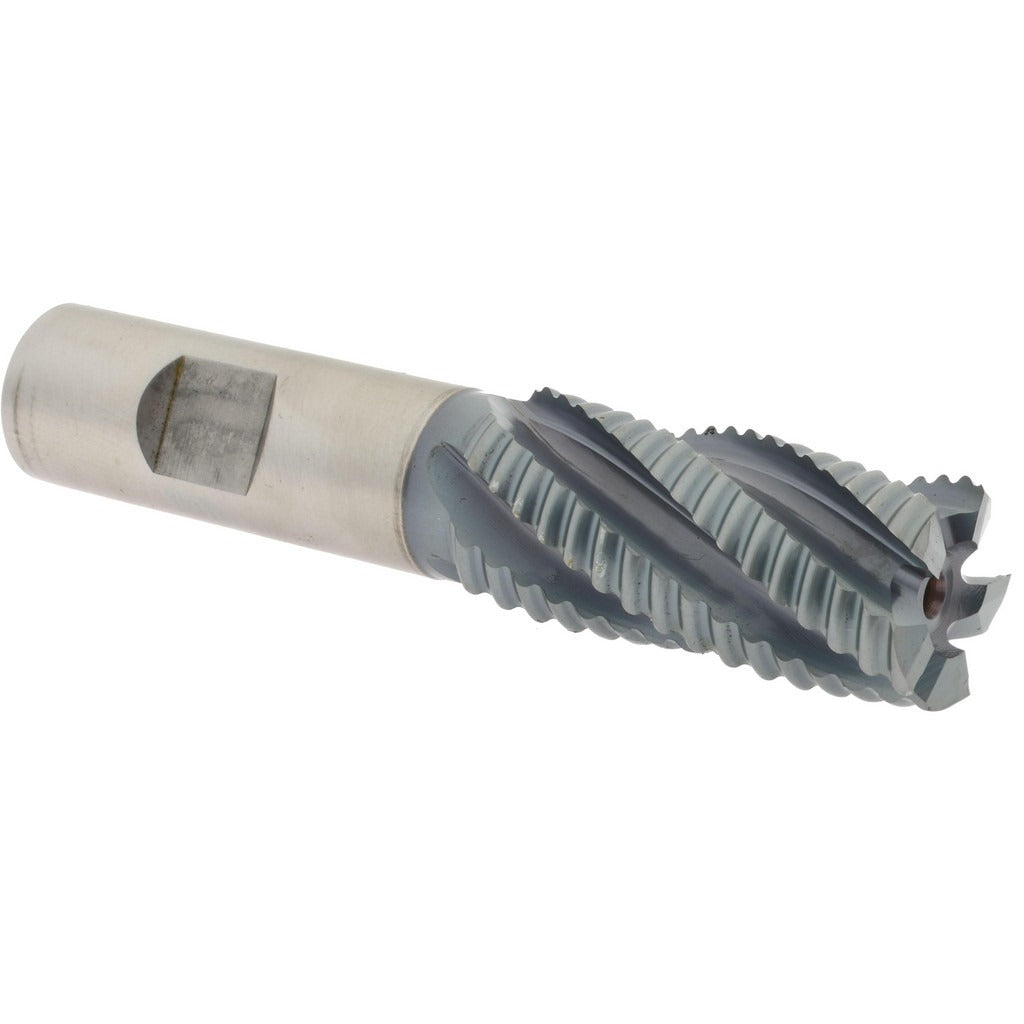

Hertel 87144713 Roughing End Mill 7/8 in 5 Flute Cobalt

Product Description

The HERTEL 87144713 is a single-end roughing end mill designed for high-material-removal-rate milling operations in ferrous and hard materials. Built from M42 cobalt high-speed steel and finished with a TiCN coating, this tool handles interrupted cuts, tough alloys, and heavy roughing passes where standard HSS tooling falls short. It features a 7/8 inch cutting diameter, five flutes, and a right-hand cutting and flute direction. The 1.875 inch length of cut and 4.125 inch overall length make it well suited for standard-depth roughing applications on vertical mills, knee mills, and CNC machining centers.

This end mill is intended for roughing operations in job shops, maintenance machining environments, and production floor applications where stock removal speed is the priority over surface finish. It is not center-cutting, making it appropriate for side milling, slotting from an existing pocket, and peripheral cuts. The 3/4 inch shank diameter fits standard ER collet systems, side-lock holders, and Weldon-style tool holders commonly used in manual and CNC milling setups.

Key Features

• M42 cobalt construction for elevated heat and wear resistance versus standard M2 HSS
• TiCN coating reduces friction and extends tool life in ferrous materials
• Five-flute geometry increases chip load capacity for faster roughing passes
• Right-hand cut and right-hand helix for conventional milling machine spindles
• Regular length profile for rigid setups with minimal overhang
• Non-center-cutting design suited for peripheral and side milling applications

Compatibility

Designed as an OEM-style replacement or direct-use roughing end mill compatible with milling machines accepting a 3/4 inch shank diameter in standard ER collet chucks, Weldon flat shank holders, or equivalent tool holding systems.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the machine spindle is fully stopped and locked out before mounting or removing the tool. Seat the shank fully into the holder to the minimum insertion depth recommended for the holder type to prevent tool pullout under load. Verify runout with a dial indicator after tooling is secured before beginning a cut.
