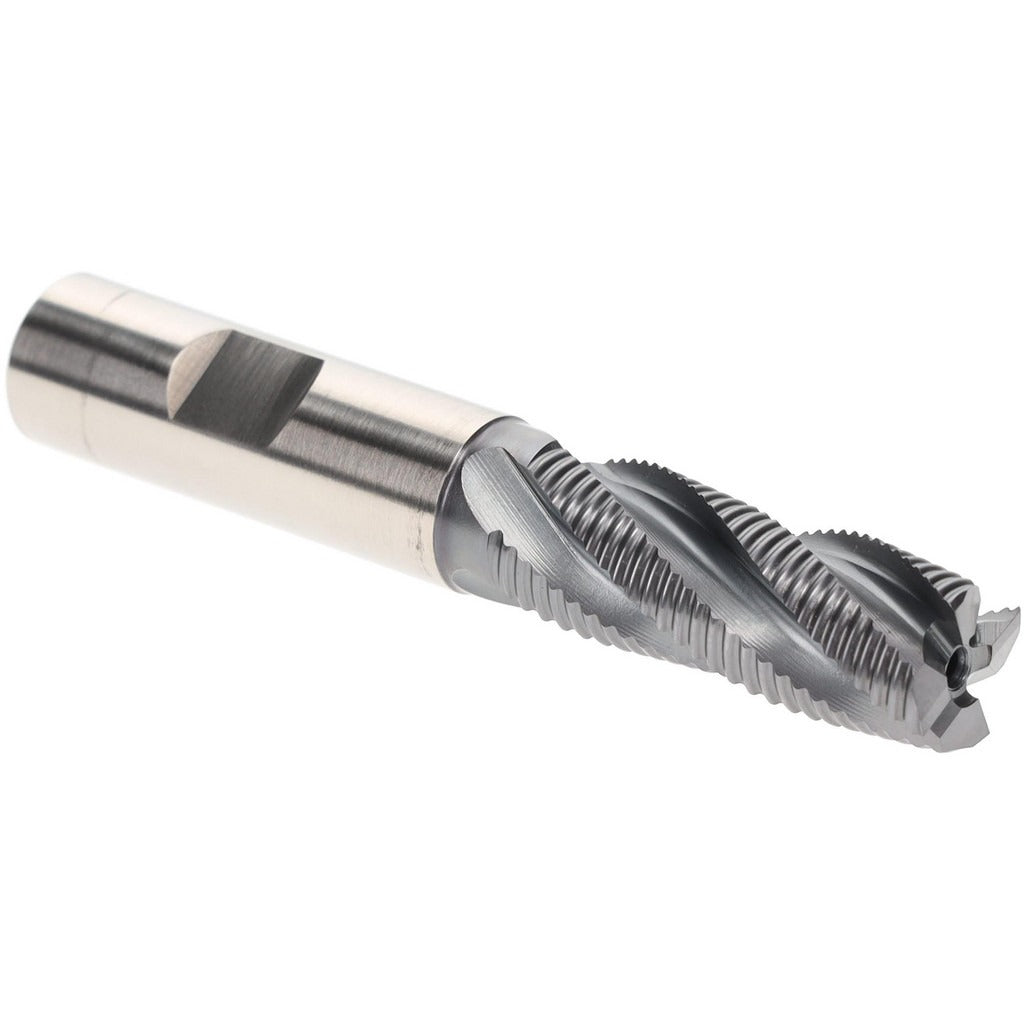

Hertel 84511849 Roughing End Mill 5/8 in 4 Flute Cobalt

Product Description

The HERTEL 84511849 is a single-end roughing end mill designed for high-material-removal-rate milling operations in ferrous and hard metals. Built from M42 cobalt high-speed steel and finished with a TiCN coating, it delivers increased hardness and wear resistance compared to standard HSS tooling. The cutter measures 5/8 inch in diameter with a 1-5/8 inch length of cut and a 3-3/4 inch overall length. Four right-hand flutes with a roughing profile break chips aggressively, reducing heat buildup and cutting forces during roughing passes. Machinists and toolroom operators use this style of end mill when removing large amounts of stock before a finishing pass.

This end mill suits vertical mills, knee mills, and CNC machining centers running ferrous workpiece materials including alloy steels, tool steels, and stainless. The 5/8 inch shank seats directly in standard R8, ER, or Weldon-style toolholders of the same bore size. It is appropriate for roughing slots, pockets, and peripheral cuts in job shop, production, and maintenance-repair environments. The non-centercutting geometry means it is not intended for direct plunge entry without a pre-drilled or ramped lead-in.

Key Features

• M42 cobalt HSS construction for elevated red hardness and extended tool life in tough materials
• TiCN coating increases surface hardness and reduces friction at the cutting edge
• 4-flute roughing profile breaks chips into shorter segments and reduces cutting force
• Right-hand cut and right-hand flute direction for conventional and climb milling
• Non-centercutting end — use ramp or helical entry instead of direct plunge
• Consistent 5/8 inch shank and cutter diameter simplifies toolholder selection

Compatibility

Designed as a standard-shank roughing end mill compatible with any 5/8 inch bore toolholder, including R8 collets, ER collet chucks, and Weldon-flat side-lock holders used on vertical knee mills and CNC machining centers.

Installation Notes

Installation is performed by a machinist or toolroom technician. Power down and lock out the spindle drive before changing tooling. Seat the shank fully into the collet or toolholder before torquing the retention mechanism to the toolholder manufacturer specification. Inspect the cutting edges for chips or wear before each use, and confirm runout with a dial indicator when tolerance-critical work is planned.
