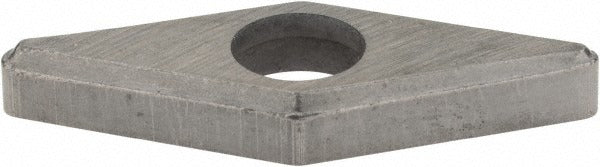

Hertel 8000177 Carbide Shim Indexable 3/8 in External Turning

Product Description

The HERTEL 8000177 is a carbide shim designed for use with indexable cutting inserts in external turning applications. Shims of this type seat beneath the insert in a tool holder pocket, providing a hardened bearing surface that protects the holder body from cutting forces and chip impact. This shim follows the IVSN style and is configured for diamond-shaped inserts with a negative rake and neutral cutting direction. It measures 0.125 inches thick and is sized for inserts with a 3/8 inch inscribed circle. Installation is performed by qualified machinists and toolroom technicians during insert changes or holder reconditioning.

This shim is suited for external turning operations on CNC lathes and manual turning centers where diamond-shaped indexable inserts are used. It is specified for use with the A16RPTFNR11 complete tool holder. The IVSN shim style and negative rake configuration make it appropriate for general-purpose external turning on a range of workpiece materials. Sold individually with a minimum order quantity of 5 units.

Key Features

• IVSN shim style engineered for diamond-shaped indexable inserts
• Negative rake, neutral cutting direction configuration
• Carbide construction provides hardened seat to protect tool holder pocket
• 3/8 inch inscribed circle sizing matches standard diamond insert geometry
• 0.125 inch thickness for precise insert seating depth
• Compatible with A16RPTFNR11 tool holder

Compatibility

Specified for use with the A16RPTFNR11 complete tool holder. Compatible with diamond-shaped indexable inserts having a 3/8 inch inscribed circle in an IVSN-style pocket with negative rake orientation.

Installation Notes

Installation is performed by machinists or toolroom technicians during routine insert changes or holder maintenance. Power down and lock out the machine spindle before accessing the tool holder pocket. Inspect the shim seat and pocket for chips or damage before placing the new shim. Do not reuse a shim that shows cracking, chipping, or deformation at the seating surface.
