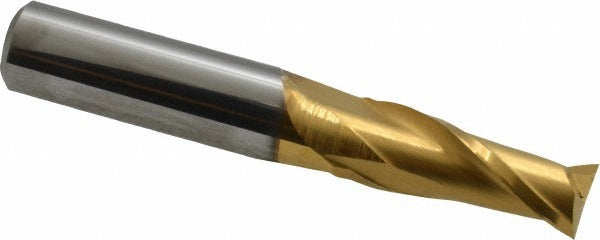

Hertel 750675 Square End Mill 13/32 Inch 2 Flute Carbide

Product Description

The HERTEL 750675 is a solid carbide square end mill designed for precision metal removal in milling applications. It features a 13/32 inch (0.4063 inch) cutting diameter and a 1 inch length of cut, making it well suited for slotting, profiling, and peripheral milling operations. The 2-flute geometry combined with a 30-degree helix angle promotes efficient chip evacuation. A titanium nitride (TiN) coating increases surface hardness and wear resistance. Micrograin carbide construction provides rigidity and edge retention in demanding cutting conditions. This tool is installed and operated by machinists and CNC machine operators working with metalcutting equipment.

This end mill is used in vertical and horizontal milling machines, CNC machining centers, and manual knee mills. It is suited for cutting steel, cast iron, aluminum, and similar machinable metals in job shop, production, and maintenance machining environments. The center-cutting design allows plunge entry directly into the workpiece, enabling ramping and pocket milling operations without a pre-drilled pilot hole. The right-hand cut and right-hand flute configuration is standard for conventional spindle-direction setups.

Key Features

• 13/32 inch (0.4063 inch) cutting diameter with 1 inch length of cut
• Solid micrograin carbide construction for rigidity and long edge life
• TiN coating for increased wear resistance and reduced friction
• 30-degree helix angle promotes smooth cutting action and chip evacuation
• Center-cutting design enables direct plunge entry and pocket milling
• Right-hand cut, single-end tool for standard spindle configurations

Compatibility

Designed as a standard single-end square end mill with a 7/16 inch shank diameter, compatible with ER collet chucks, end mill holders, and milling machine spindles accepting 7/16 inch round shanks.

Installation Notes

Installation is performed by a machinist or CNC operator. Power down and lock out the machine spindle before inserting or removing the tool from the holder. Ensure the shank is clean and fully seated in the collet or end mill holder before tightening to prevent runout. Verify spindle speed and feed rate against manufacturer recommendations for the workpiece material before engaging the cut.
