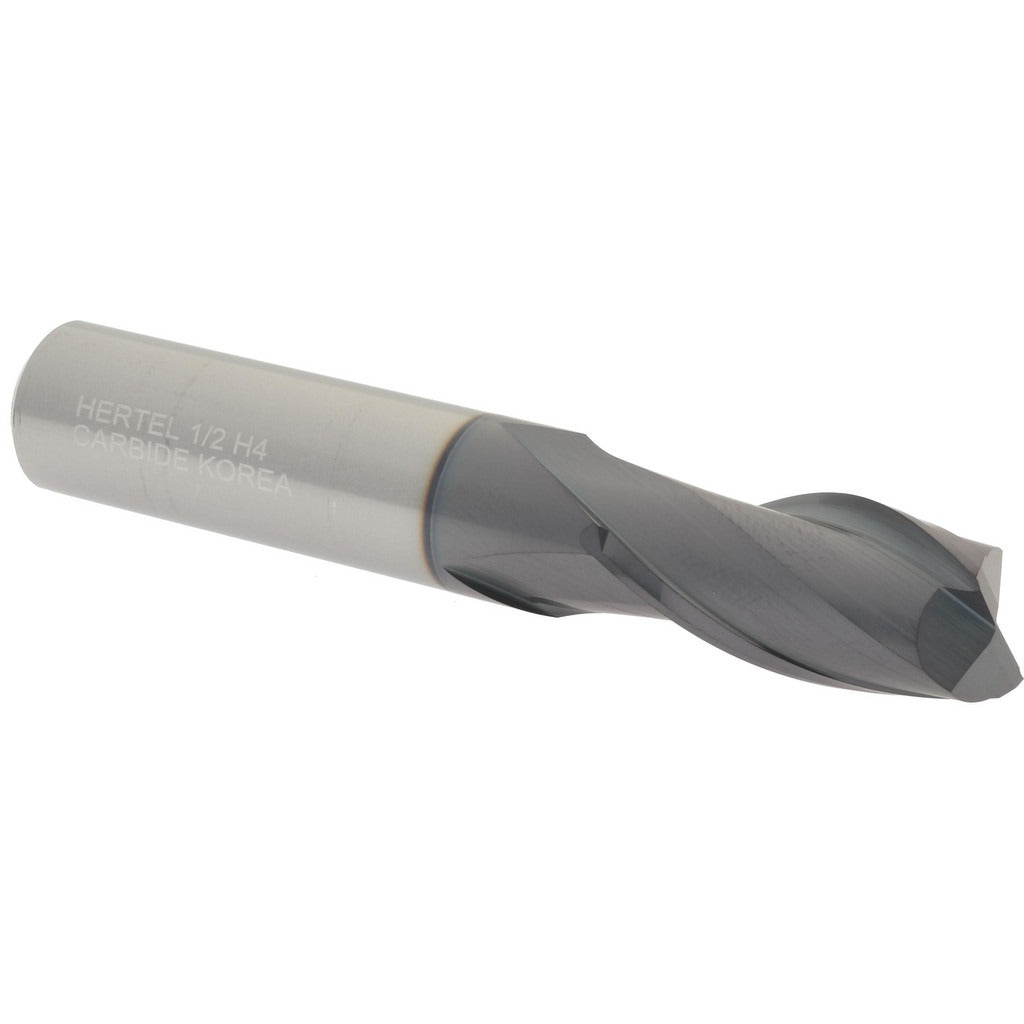

Hertel 750313 Solid Carbide Square End Mill 2 Flute Altin

Product Description

The HERTEL 750313 is a single-end, solid carbide square end mill designed for precision milling in demanding machining environments. It features a 0.5 inch cutting diameter, 1 inch length of cut (LOC), and an overall length (OAL) of 3 inches with a 0.5 inch shank diameter. The two-flute geometry and 30-degree helix angle promote efficient chip evacuation, while the AlTiN (aluminum titanium nitride) coating provides elevated heat resistance and extended tool life during high-speed or dry cutting operations. This end mill is center-cutting capable, allowing direct plunge entry into workpieces.

This end mill is suited for use in CNC machining centers and manual mills across metalworking shops, tool rooms, and production environments. The right-hand cut orientation and AlTiN finish make it well matched for hard ferrous materials, stainless steels, and high-temperature alloys where heat generation is a concern. It is commonly applied in profile milling, slotting, and peripheral milling operations requiring tight tolerances.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding cuts
• AlTiN coating for superior heat resistance and extended tool life
• 30-degree helix angle promotes smooth chip flow and reduced cutting forces
• Center-cutting design allows direct plunge milling without a pre-drilled entry hole
• Right-hand cut, single-end configuration for standard CNC and manual mill setups
• Two-flute geometry provides ample chip clearance in slotting and full-width cuts

Compatibility

Designed as a standard 0.5 inch shank, solid carbide square end mill compatible with ER and straight-bore collet systems accepting 0.5 inch shank tooling in CNC machining centers and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist following standard tooling change procedures. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before changing tooling. Seat the shank fully in the collet or tool holder to the minimum engagement depth recommended for the holder type, and verify runout with a dial indicator before beginning a cut. Consult machine and toolholder manufacturer guidelines for appropriate clamping torque on collet nuts.
