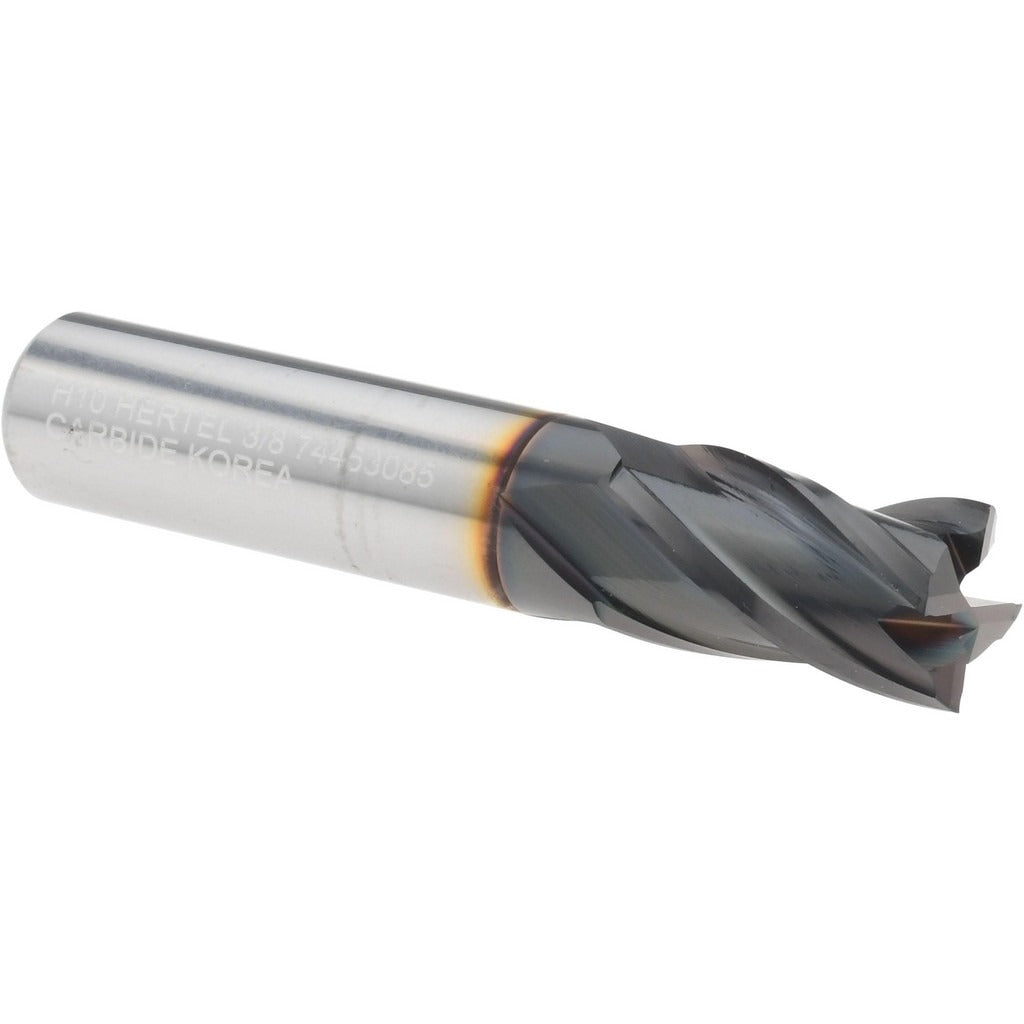

Hertel 750302 Square End Mill 3/8 in 4 Flute Carbide Ticn

Product Description

The HERTEL 750302 is a 4-flute, solid carbide square end mill designed for precision milling in ferrous and non-ferrous metals. With a 3/8 inch mill diameter, a 5/8 inch length of cut, and a 2 inch overall length, this stub-length tool delivers rigidity in tight setups where reach is not required. The 30-degree right-hand spiral helix promotes efficient chip evacuation and reduces cutting forces. A TiCN (titanium carbonitride) coating increases surface hardness and wear resistance compared to uncoated carbide, extending tool life in abrasive materials. The micrograin carbide substrate provides a fine grain structure suited for maintaining sharp cutting edges at close tolerances.

This end mill is suited for general-purpose peripheral and slot milling operations in machine shops and production environments. The stub length and 3/8 inch shank make it compatible with standard collet chucks and end mill holders on vertical machining centers, knee mills, and CNC milling machines. Centercutting geometry allows plunge entry directly into the workpiece. It is commonly used in steel, stainless steel, cast iron, and high-temp alloys where a TiCN coating provides a performance advantage over uncoated or TiN-coated tools.

Key Features

• Solid micrograin carbide construction for superior edge retention and rigidity
• TiCN coating for enhanced wear resistance in ferrous and abrasive materials
• 4 flutes with right-hand spiral flute direction for efficient chip removal
• 30-degree helix angle balances chip flow and cutting stability
• Centercutting design allows direct plunge milling
• Stub length profile maximizes rigidity and minimizes deflection

Compatibility

Designed for use in standard 3/8 inch collet chucks and end mill holders on CNC machining centers, manual knee mills, and similar milling equipment.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer guidelines. Ensure the spindle is fully powered down and the machine is in a safe state before changing tooling. Seat the shank fully into the collet or holder and tighten to the manufacturer specified clamping torque using the appropriate wrench. Verify runout with a dial indicator after installation to confirm proper seating before beginning any cutting operation.
