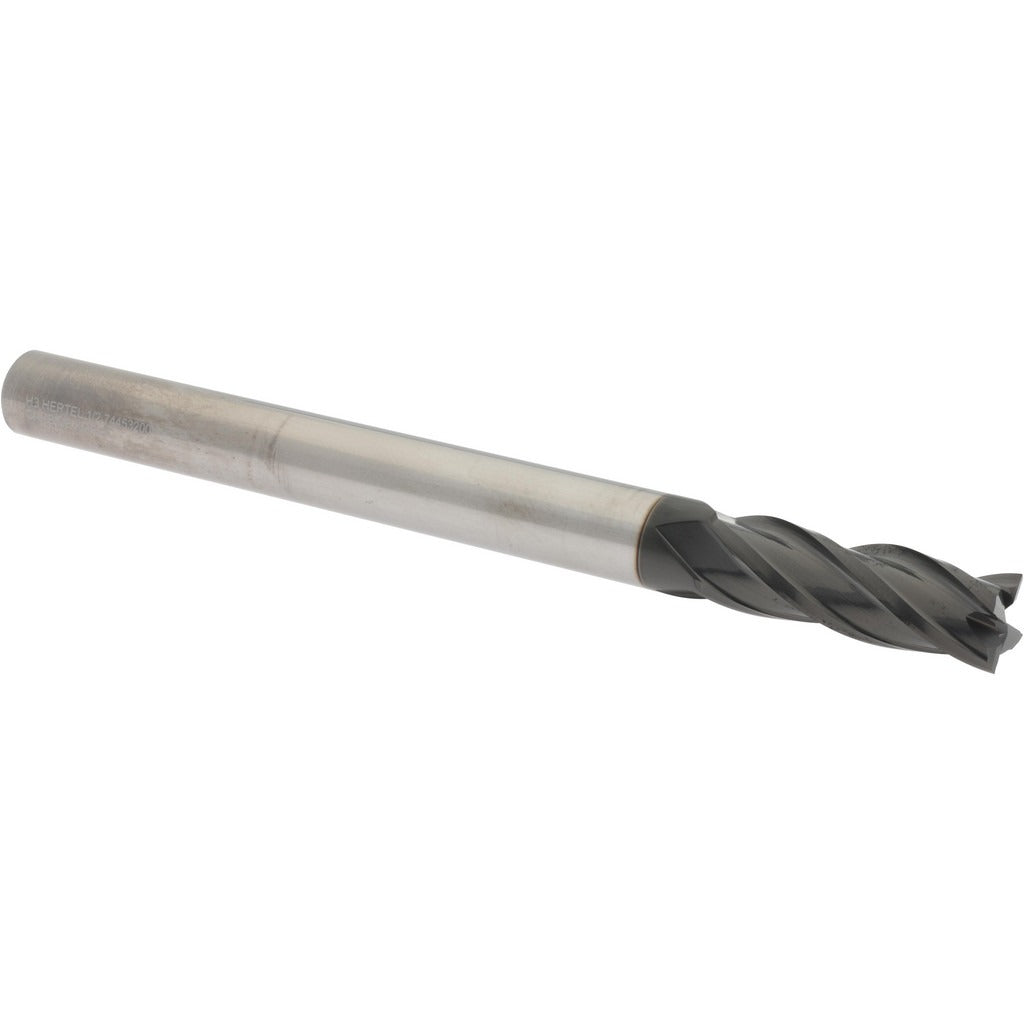

Hertel 750300 Square End Mill 0.5in 4 Flute Solid Carbide

Product Description

The HERTEL 750300 is a solid carbide square end mill designed for precision milling operations in metal-cutting environments. It features a 0.5-inch diameter, a 1.5-inch length of cut, and a 6-inch overall length, making it well suited for extended-reach applications where standard-length tooling cannot access the workzone. The micrograin carbide substrate supports the TiCN coating, which improves surface hardness and wear resistance over uncoated tooling. Four spiral flutes with a 30-degree helix angle promote efficient chip evacuation and smooth cutting action. This is a centercutting tool, allowing plunge cuts in addition to peripheral and slot milling.

This end mill is used in CNC machining centers and manual milling machines for slotting, profiling, and peripheral milling in ferrous and non-ferrous materials. The extra-long length classification makes it a practical choice when clearing deep pockets, tall workpiece features, or fixtures that obstruct shorter tooling. The right-hand cut and right-hand flute configuration is standard for conventional spindle setups. Machinists, tool-and-die makers, and CNC operators in job shops and production environments are the primary users of this tool.

Key Features

• Solid micrograin carbide construction for rigidity and edge retention
• TiCN finish increases surface hardness and extends tool life in abrasive materials
• 30-degree helix spiral flute promotes efficient chip evacuation
• Centercutting geometry allows direct plunge entry without pre-drilling
• Extra-long 6-inch OAL provides extended reach for deep-feature milling
• Right-hand cut and right-hand flute for standard spindle compatibility

Compatibility

Designed as a direct-fit replacement or standard tooling selection for 0.5-inch collet chucks, end mill holders, and shrink-fit holders accepting a 0.5-inch shank diameter in CNC machining centers and manual knee mills.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the machine spindle is fully stopped and power is off before loading or changing tooling. Use a properly sized collet or end mill holder torqued according to the toolholder manufacturer's specifications. Verify runout with a dial indicator after seating the tool before beginning a cut, particularly given the extended overall length of this tool.
