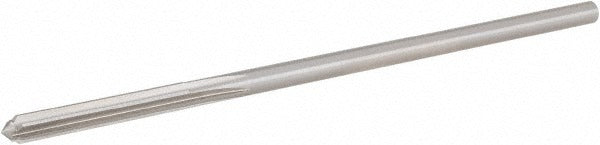

Hertel 72015001 Chucking Reamer 0.1500 in Hss Straight Flute

Product Description

The HERTEL 72015001 is a straight-flute chucking reamer designed for precision hole finishing in metal machining applications. Ground from high-speed steel (HSS) with a bright, uncoated finish, it delivers accurate sizing in drilling and boring operations where tight tolerances are required. The reamer measures 0.1500 inches in diameter with a 4-inch overall length and a 1-inch flute length. The four-flute, right-hand cutting configuration provides smooth material removal and consistent surface finish. The straight-cylindrical shank mounts directly into standard drill chucks or collet holders on lathes, drill presses, and CNC machining centers.

This chucking reamer is suited for finishing pre-drilled or bored holes to close dimensional tolerances in ferrous and non-ferrous metals. It is a standard tool for machine shops, maintenance and repair operations, and production environments where holes at or near 0.1500 inches must be brought to final size and finish. Licensed machinists and tool-and-die technicians are the primary installers and users.

Key Features

• 0.1500 inch reamer diameter for precise hole finishing to close tolerances
• High-speed steel (HSS) construction provides toughness and wear resistance across a range of workpiece materials
• Straight flute geometry delivers smooth cutting action and easy chip clearance
• Four-flute design for consistent surface finish and dimensional accuracy
• Right-hand cutting direction compatible with standard spindle rotation
• Straight-cylindrical shank for direct mounting in drill chucks or collet holders
• Bright, uncoated finish suitable for use with standard cutting fluids

Compatibility

Designed as an OEM-style replacement or standard stock chucking reamer for use in any machine tool equipped with a drill chuck or straight-shank collet holder sized to accept a 0.1500 inch diameter straight-cylindrical shank tool.

Installation Notes

Chucking reamers are installed by qualified machinists on lathes, drill presses, milling machines, or CNC machining centers. Always bring the spindle to a complete stop and lock the machine before mounting or removing the reamer from the chuck or collet. Use the appropriate cutting fluid for the workpiece material to extend tool life and improve surface finish. The pre-drilled hole should be sized appropriately undersize before reaming to allow proper material removal without overloading the tool.
