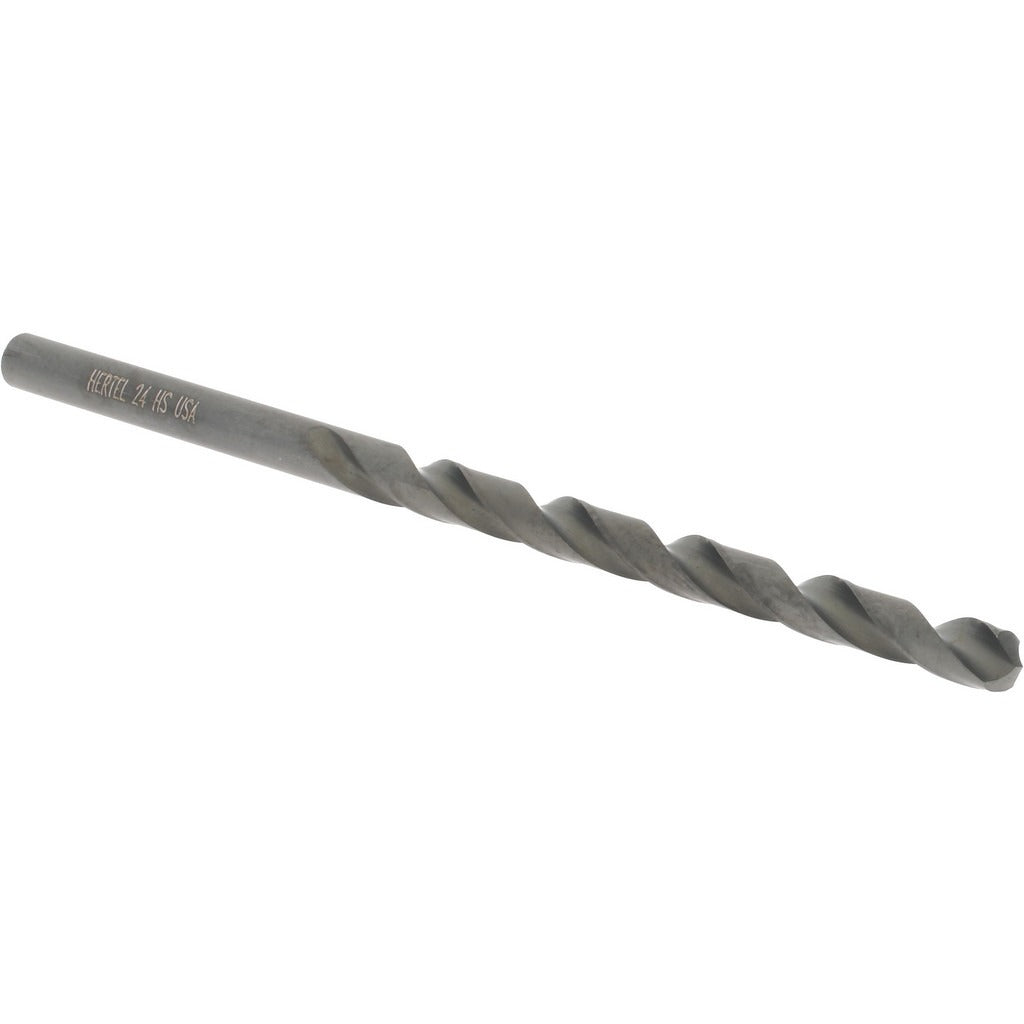

Hertel 71206411 Jobber Drill Bit Wire 24 Hss Oxide

Product Description

The HERTEL 71206411 is a jobber-length drill bit in wire gauge size 24 (0.1520 inches), manufactured from high speed steel with an oxide coating for added wear resistance. The bit features a 118-degree standard point angle, a spiral flute with regular helix, and a straight-cylindrical shank. At 3-1/8 inches overall length with a 2-inch flute length, it fits standard drill chucks and is suited for general-purpose metal drilling in production and maintenance environments. The two-flute geometry and web-thinned, tapered web design promote efficient chip evacuation and reduce entry thrust. Licensed trades and industrial maintenance technicians reach for this bit in everyday ferrous and non-ferrous drilling work.

This bit is a general-purpose jobber-length tool rated for drilling in mild steel, aluminum, brass, and similar materials in light industrial and MRO settings. The right-hand cutting direction and straight-cylindrical shank make it compatible with standard keyed and keyless chucks on bench drills, hand drills, and drill presses. The 0.1520-inch diameter falls within the 0.1500 to 0.2000 inch size range bracket. It is sold individually (package quantity of 1), with a minimum order quantity of 12 units.

Key Features

• Wire size 24 diameter at 0.1520 inches for precise small-hole drilling
• 118-degree standard point angle for general-purpose use across common materials
• Oxide coating improves surface hardness and corrosion resistance
• Web-thinned, tapered web reduces thrust and improves penetration
• 2-inch flute length with regular spiral promotes consistent chip clearance
• Straight-cylindrical shank fits standard drill chucks without adapters

Compatibility

Designed as a general-purpose jobber-length drill bit compatible with standard keyed and keyless drill chucks accepting a 0.1520-inch straight-cylindrical shank, suitable for bench drills, hand drills, and drill presses used in industrial and MRO applications.

Installation Notes

Install in a properly rated drill chuck and tighten securely before operation. Always wear appropriate eye protection when drilling. Secure the workpiece before applying feed pressure to prevent bit walking, particularly at small diameters. Inspect the cutting edges for wear or chipping before each use and replace bits that show signs of dulling to maintain hole quality and prevent breakage.
