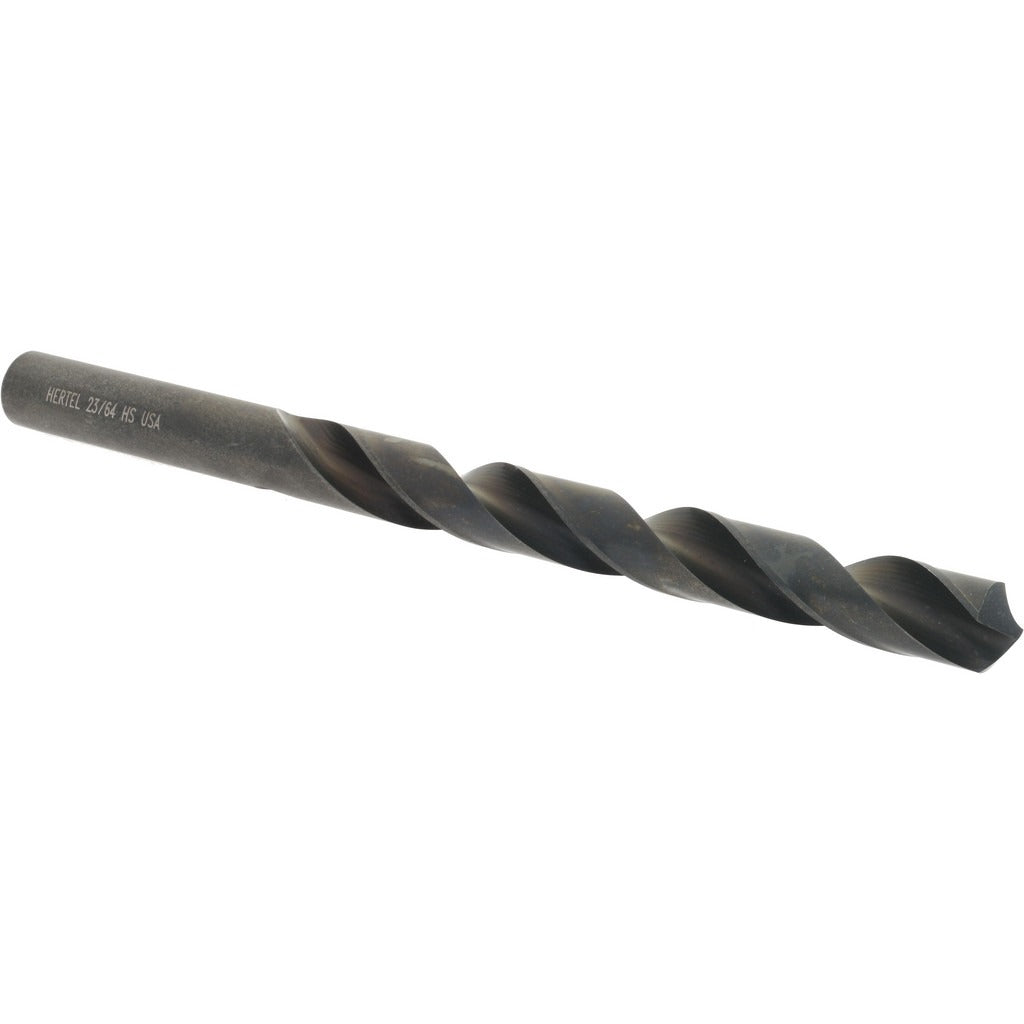

Hertel 71205827 Jobber Drill Bit 23/64 in Hss Oxide

Product Description

The HERTEL 71205827 is a jobber-length drill bit designed for general-purpose drilling in metal, wood, and plastic. Built from high speed steel with an oxide coating, it offers basic surface protection and reduced friction during cutting. The bit features a 118-degree standard point angle, a right-hand spiral flute configuration, and a straight-cylindrical shank. At 23/64 inch in diameter and 4-7/8 inches overall length, this is a standard trade-shop size suited for maintenance technicians, pipefitters, HVAC installers, electricians, and general fabrication work requiring a reliable jobber-length bit.

This drill bit is used in residential and light commercial trade applications where a standard jobber-length HSS bit is required. Common scenarios include drilling clearance holes for conduit fittings, sheet metal fasteners, pipe hangers, and structural attachments. The 23/64 inch diameter falls within the 0.3500 to 0.4000 decimal inch size range, making it a practical selection for hole sizing in steel framing, electrical enclosures, and mechanical equipment housings. It is sold as a single bit per package with a minimum order quantity of 6 units.

Key Features

• 23/64 inch diameter (0.3594 decimal inch) for consistent, on-size hole production
• 118-degree standard point angle for general-purpose drilling across common materials
• High speed steel construction handles moderate heat and repeated use in trade applications
• Oxide coating reduces friction and provides light corrosion resistance
• Right-hand spiral flute with regular spiral type for efficient chip evacuation
• Web-thinned, tapered web configuration reduces thrust required at drill entry

Compatibility

Designed as a general-purpose jobber-length drill bit compatible with any standard 3-jaw drill chuck accepting a straight-cylindrical shank in the 23/64 inch size.

Installation Notes

Install and remove this bit only with the drill unplugged or the power source locked out per standard lockout/tagout procedure. Secure the straight-cylindrical shank fully into the chuck and tighten with a chuck key before use. Use cutting fluid when drilling ferrous materials to extend bit life and maintain hole quality. Inspect the cutting edges before each use and replace the bit if chipping or dulling is observed.
