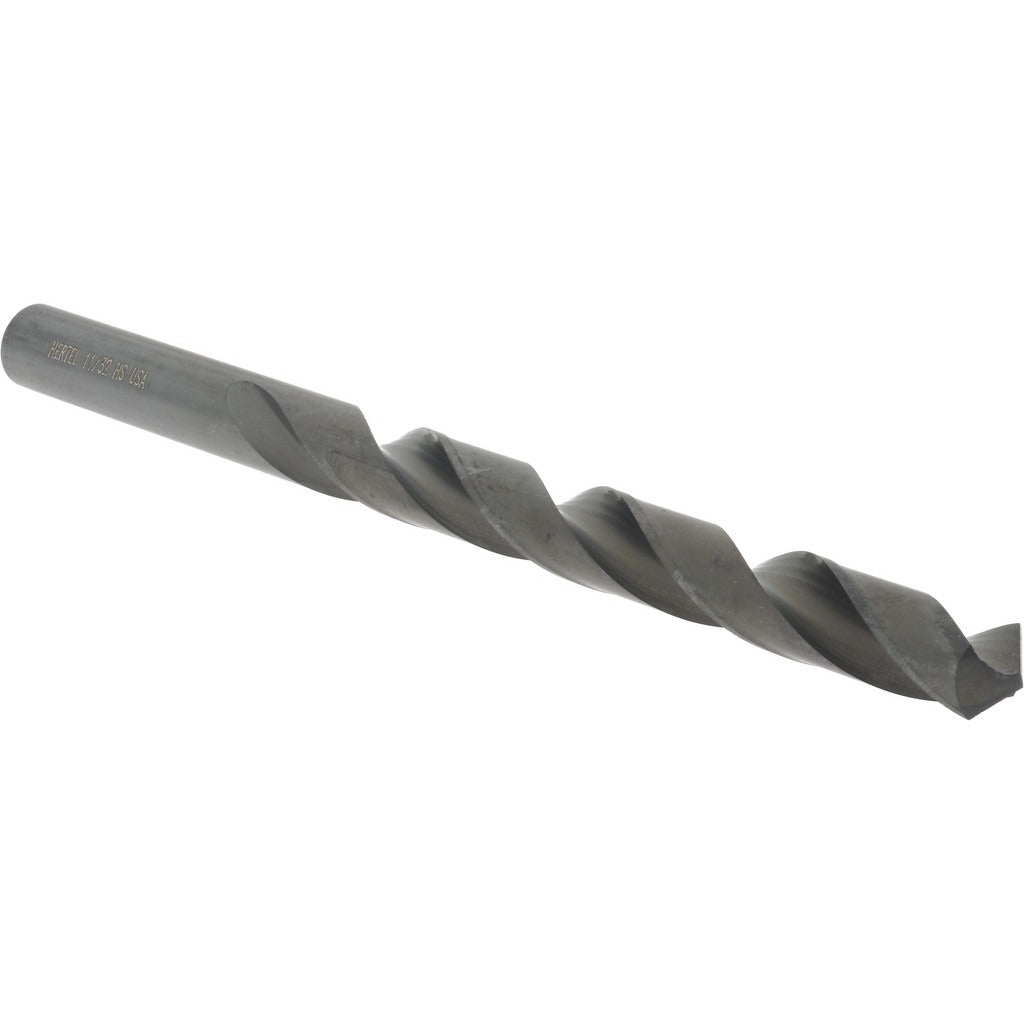

Hertel 71205819 Jobber Length Drill Bit 11/32 Inch Hss

Product Description

The HERTEL 71205819 is a jobber length drill bit designed for general-purpose drilling in metal, wood, and plastic. It is manufactured from high speed steel with an oxide coating that helps reduce friction and extend tool life under normal operating conditions. The bit measures 11/32 inch (0.3438 inch decimal) in diameter with a standard 118-degree point angle and a right-hand spiral flute configuration. At 4-3/4 inches overall length with a 3-7/16 inch flute length, it fits standard drill chucks and press spindles used daily in fabrication, mechanical, and maintenance trade work.

This bit is suited for production and maintenance drilling applications in fabrication shops, mechanical rooms, and field service environments. The straight cylindrical shank accepts standard three-jaw chucks on both hand drills and drill presses. The regular spiral and tapered web with web thinning improve chip evacuation and reduce the thrust needed to start and complete a hole, making it practical for repetitive drilling tasks across a range of base materials.

Key Features

• 11/32 inch diameter (0.3438 inch decimal) for precise fractional sizing
• High speed steel construction with oxide coating for reduced friction and wear resistance
• 118-degree standard point angle for general-purpose material entry
• Right-hand cut with regular spiral flute and 3-7/16 inch flute length for efficient chip removal
• Web-thinned tapered web reduces drilling thrust and improves penetration
• Straight cylindrical shank compatible with standard three-jaw drill chucks

Compatibility

Designed as a general-purpose jobber length drill bit compatible with any standard three-jaw chuck accepting a straight cylindrical shank in the 11/32 inch diameter range.

Installation Notes

Installation and use of this bit should be performed by qualified machinists, maintenance technicians, or trade professionals familiar with rotating tool safety. Secure the shank fully in the chuck and verify concentricity before operating. Always wear appropriate eye protection and ensure the workpiece is properly clamped before drilling. Do not exceed the rated speed range for the bit diameter and material being drilled.
