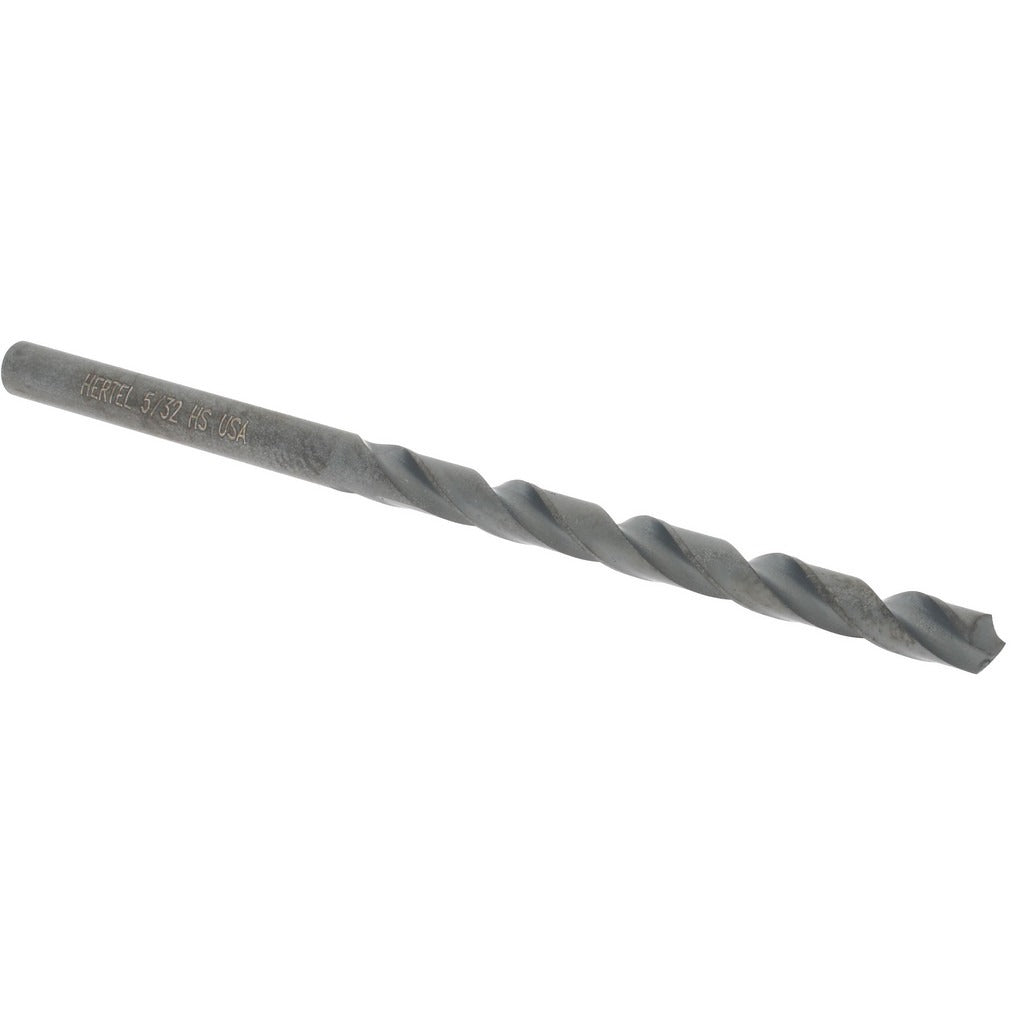

Hertel 71205694 Jobber Drill Bit 5/32 Inch Hss Oxide

Product Description

The HERTEL 71205694 is a jobber-length drill bit designed for general-purpose drilling in metal, wood, and plastic. It measures 5/32 inch (0.1562 inch decimal) in diameter with a 3-1/8 inch overall length and a 2-inch flute length. The bit is manufactured from high speed steel with an oxide coating that reduces friction and helps extend tool life during repeated use. The 118-degree standard point angle is the conventional geometry for general-purpose applications across a wide range of materials. A web-thinned, tapered web configuration reduces the thrust required to start and advance the cut. Licensed tradespeople and maintenance technicians will find this bit suited for everyday jobsite and shop drilling tasks.

This drill bit is appropriate for residential and light commercial trade work where a standard fractional-size hole is required. Typical applications include drilling pilot holes for fasteners, conduit knockouts, pipe hangers, and mounting hardware. The straight-cylindrical shank fits standard 3-jaw drill chucks without modification. Right-hand cutting direction is compatible with conventional forward-rotation drills. The 5/32 inch size falls within the 0.1500 to 0.2000 inch decimal range, a common size for sheet metal and structural drilling tasks encountered in HVAC, plumbing, and electrical rough-in work.

Key Features

• 5/32 inch diameter (0.1562 inch decimal) for precise fractional sizing
• High speed steel construction for durability across general-purpose materials
• Oxide coating reduces friction and helps resist heat buildup
• 118-degree standard point angle for broad material compatibility
• Web-thinned tapered web reduces starting thrust and walking
• Straight-cylindrical shank fits standard 3-jaw chucks
• Right-hand spiral flute efficiently clears chips during drilling

Compatibility

Designed as a general-purpose jobber-length drill bit compatible with any standard 3-jaw drill chuck accepting a straight-cylindrical shank in the 5/32 inch diameter range.

Installation Notes

Install this bit into a properly tightened 3-jaw chuck before starting the drill. Secure the workpiece firmly to prevent movement during drilling. Use appropriate cutting fluid when drilling ferrous metals to extend bit life and improve hole quality. Inspect the cutting edges before each use and replace the bit if chipping or excessive wear is observed.
