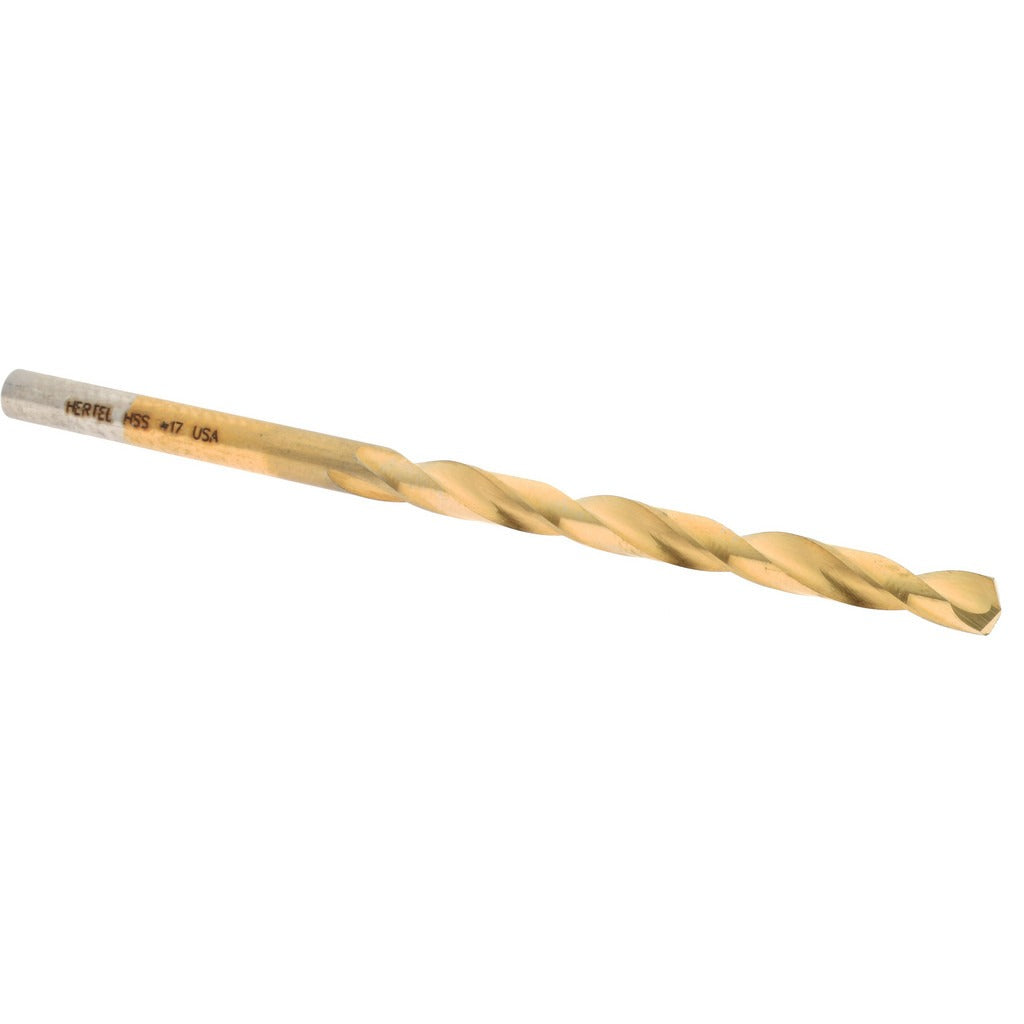

Hertel 66694167 Jobber Drill No. 17 Hss Tin 135 Deg

Product Description

The HERTEL 66694167 is a No. 17 wire-size jobber-length drill bit ground from high speed steel and finished with a titanium nitride (TiN) coating. The 135-degree split point reduces walking on entry and lowers thrust requirements compared to a conventional 118-degree grind. At 3-3/8 inches overall length with a 2-3/16-inch flute length and a straight-cylindrical shank diameter of 0.1730 inches, this bit fits standard drill chucks without an adapter. The heavy-duty grade designation and web-thinned, tapered-web construction make it well-suited for repetitive holemaking in steel, aluminum, and general-purpose metals.

This drill bit is intended for general industrial and trade holemaking applications where a wire-gauge size in the 0.1500 to 0.2000 inch range is required. Typical uses include drilling pilot holes, clearance holes, and tap-drill holes in ferrous and non-ferrous stock. The right-hand spiral flute pulls chips up and out of the hole during cutting. It is sold individually and is appropriate for use in hand-held drills, drill presses, and CNC drilling operations. The NAS specification designation confirms dimensional and performance standards compliance.

Key Features

• No. 17 wire size - 0.1730 inch decimal equivalent for precise hole sizing
• 135-degree split point with web thinning reduces thrust and minimizes walking on entry
• TiN coating extends tool life and reduces friction on cutting edges
• High speed steel construction handles a broad range of metal drilling applications
• Straight-cylindrical shank fits standard three-jaw chucks without a reducer
• Regular spiral, two-flute geometry promotes efficient chip evacuation

Compatibility

Designed as a standard jobber-length drill bit for use in any drill press, hand drill, or CNC spindle accepting a 0.1730-inch straight-cylindrical shank, within the No. 17 wire-size application range.

Installation Notes

Installation is performed by machinists, toolroom technicians, and trade professionals using standard drill presses or hand-held power drills. Secure the shank fully in the chuck before operation and verify chuck key is removed prior to starting the machine. Use appropriate cutting fluid or lubricant when drilling ferrous metals to preserve coating and edge life. Follow shop safety protocols and applicable OSHA machine-guarding requirements when operating drilling equipment.
