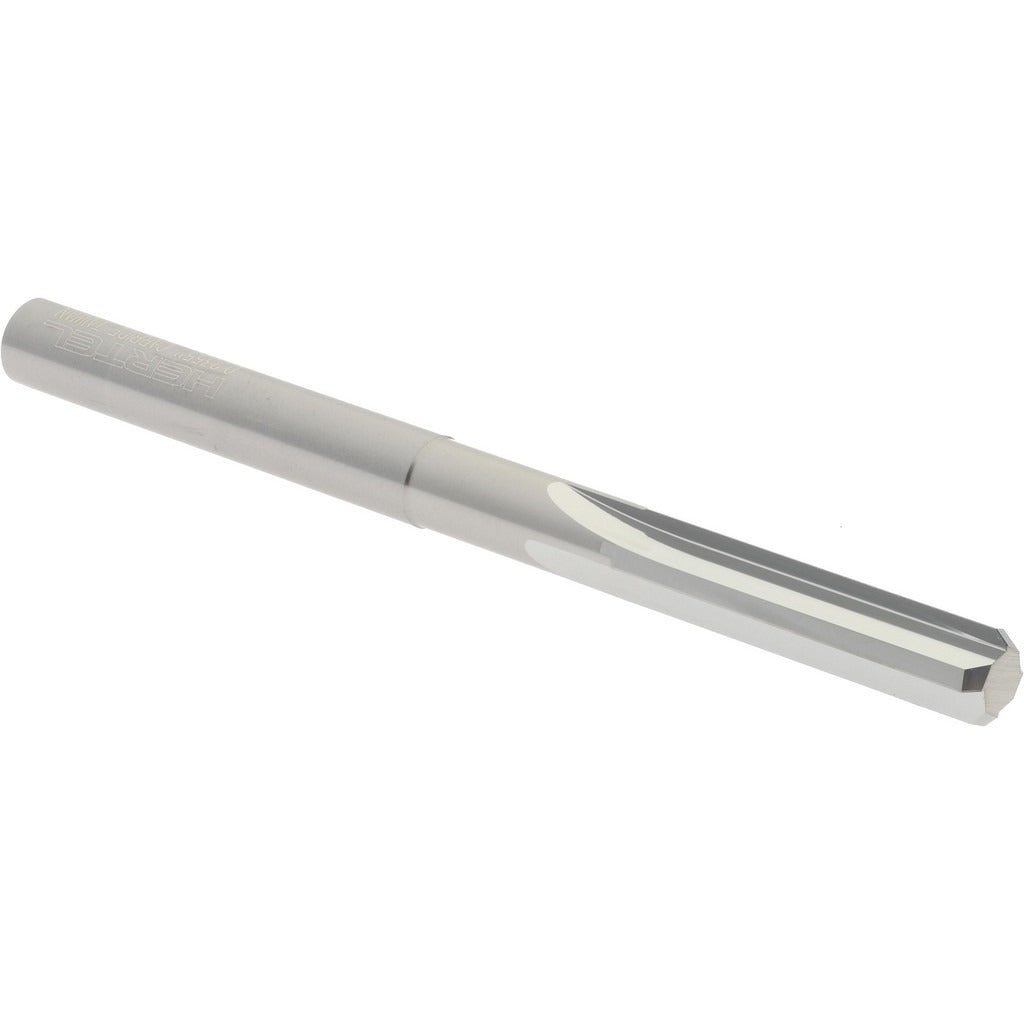

Hertel 45675469 Chucking Reamer 0.2355 in Solid Carbide

Product Description

The HERTEL 45675469 is a solid carbide chucking reamer designed for precision hole finishing in machine tool applications. With a reamer diameter of 0.2355 inches and an overall length of 3 inches, this tool delivers tight dimensional accuracy in through-hole and blind-hole reaming operations. The straight flute geometry and bright polished finish reduce cutting resistance and promote clean chip evacuation. Four right-hand cutting flutes provide balanced cutting action across a range of workpiece materials. Machinists and tool-and-die professionals rely on solid carbide construction for its rigidity and wear resistance compared to high-speed steel alternatives.

This chucking reamer is suited for use in CNC machining centers, manual lathes, and drill presses where a straight shank chuck mount is appropriate. It falls within the 0.2000 to 0.2499 inch reamer diameter range and is a standard non-dowel-pin, non-over-under size configuration. Typical applications include finish reaming of drilled holes to close tolerance in steel, cast iron, aluminum, and similar machinable materials. It is sold individually and ordered in single-unit quantities.

Key Features

• Solid carbide construction for maximum rigidity and extended tool life
• 0.2355 inch reamer diameter with bright polished finish for smooth bore surfaces
• 4 straight right-hand flutes for balanced cutting and efficient chip clearance
• Straight shank design compatible with standard drill chucks and collet holders
• 1 inch flute length suitable for moderate-depth hole finishing
• Non-dowel-pin, non-over-under-size configuration for standard tolerance reaming

Compatibility

Designed as a standard straight-shank chucking reamer for use in CNC machining centers, manual lathes, and drill presses equipped with compatible chuck or collet systems accepting a straight shank in this diameter range.

Installation Notes

Installation and use should be performed by a qualified machinist familiar with rotating cutting tool safety. Ensure the machine spindle is fully stopped and the tool is securely clamped in the chuck or collet before operation. Apply appropriate cutting fluid for the workpiece material to extend tool life and maintain bore finish quality. Follow shop-standard speeds and feeds for solid carbide reamers in the applicable material.
