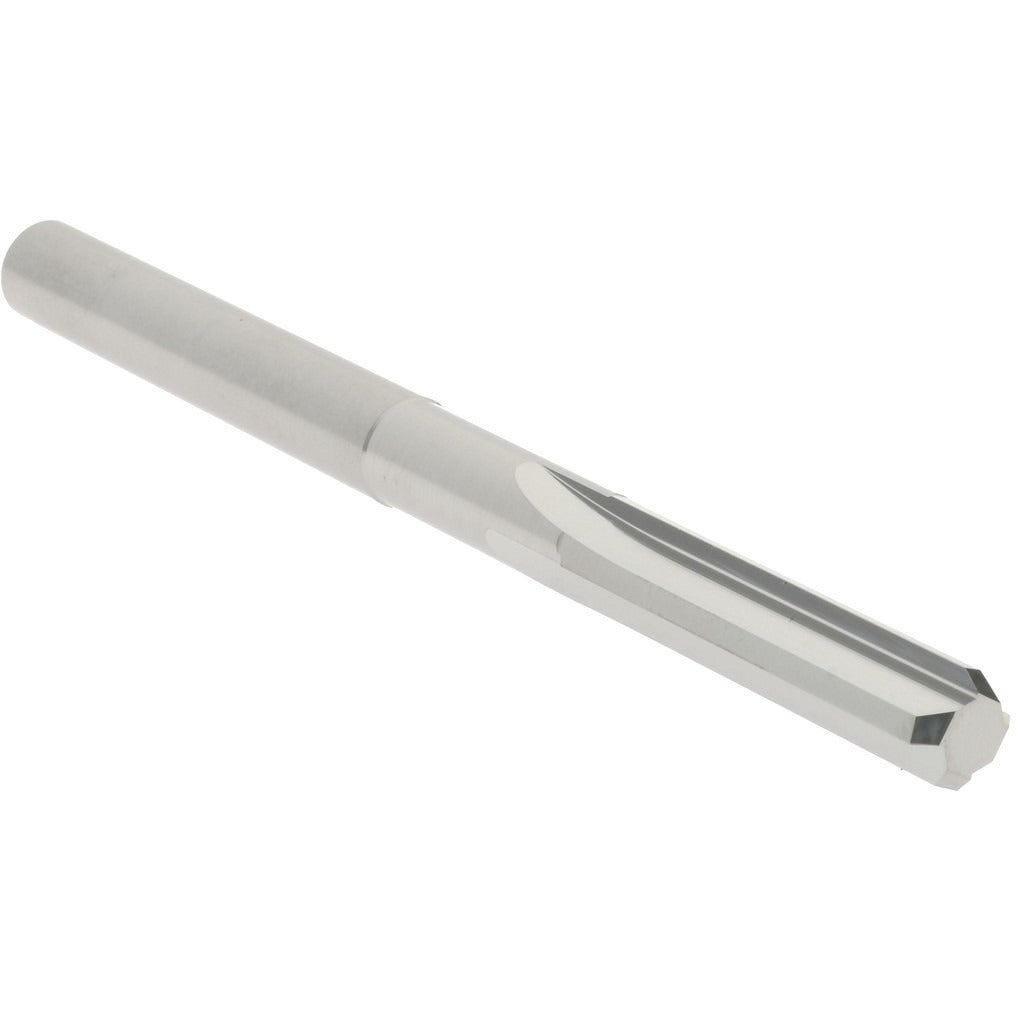

Hertel 45675410 Chucking Reamer 0.229in Solid Carbide

Product Description

The HERTEL 45675410 is a solid carbide chucking reamer designed for precision hole finishing in machine tool applications. With a reamer diameter of 0.229 inches and a 3-inch overall length, this tool delivers tight-tolerance bore sizing in production and job-shop environments. The bright polished finish reduces friction and promotes smooth chip evacuation during the cut. Four straight flutes and a right-hand cutting direction make this reamer well suited for through-hole and blind-hole finishing operations on ferrous and non-ferrous materials. Machinists and tool-and-die professionals typically specify solid carbide reamers where dimensional accuracy and surface finish are critical.

This chucking reamer is intended for use in CNC machining centers, drill presses, and lathes equipped with a standard straight-shank chuck or collet. The 1-inch flute length accommodates moderate-depth reaming passes, making it practical for precision work in automotive, aerospace, mold-and-die, and general metalworking applications. Its straight shank allows secure seating in collet holders and drill chucks across a wide range of machine setups. The 0.229-inch diameter falls in the 0.2000 to 0.2499 inch reamer diameter range.

Key Features

• Solid carbide construction for superior wear resistance and dimensional stability
• 0.229 inch reamer diameter for precision hole finishing
• 4 straight flutes with right-hand cutting direction
• Bright polished finish reduces cutting friction and promotes chip flow
• Straight shank for compatibility with standard drill chucks and collet holders
• 3-inch overall length with 1-inch flute length for controlled reaming depth

Compatibility

Designed as an OEM-style chucking reamer for use in machine tools accepting a straight-shank tool in the 0.229-inch diameter class.

Installation Notes

Chucking reamers are installed and operated by machinists using CNC machining centers, lathes, or drill presses. Ensure the machine spindle and workpiece are properly secured before initiating the cut. Use appropriate cutting fluid for the workpiece material to extend tool life and achieve the desired surface finish. Never run a chucking reamer in reverse, as this will damage the cutting edges.
