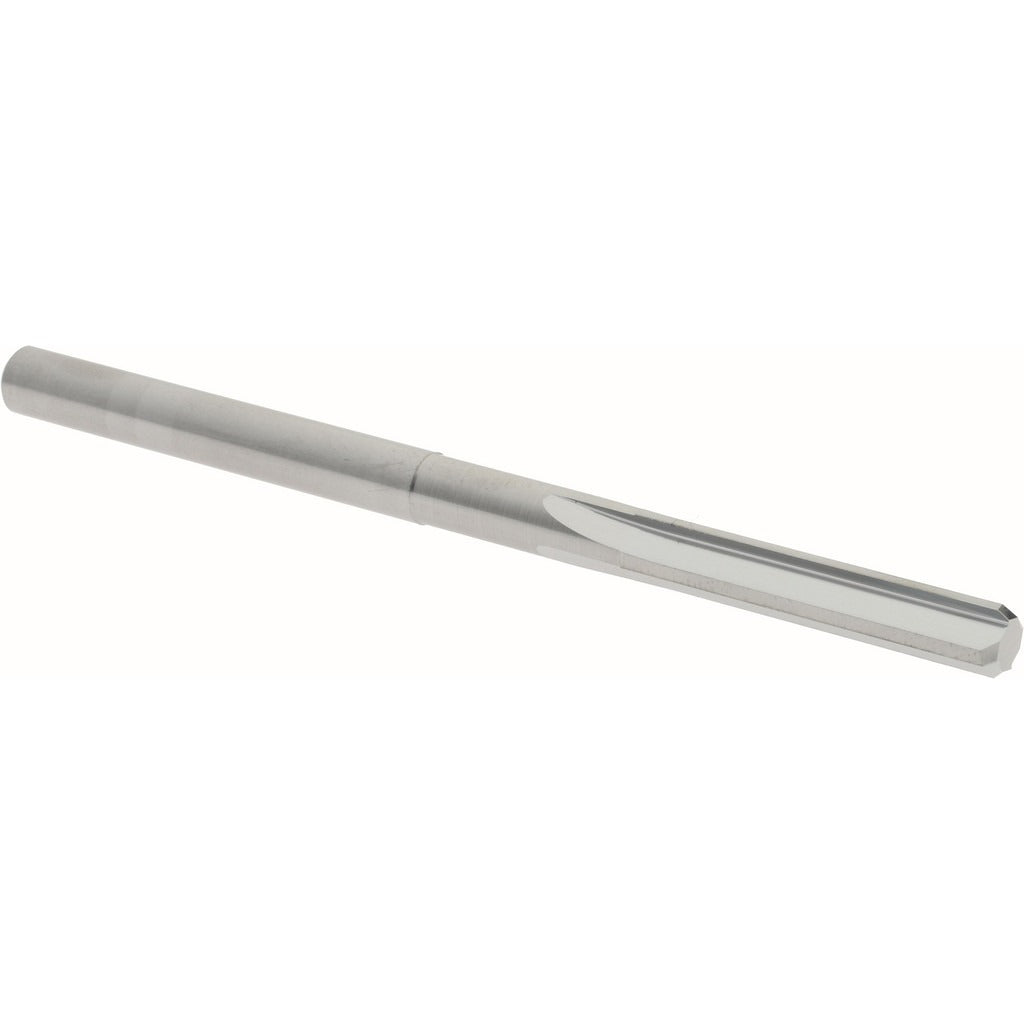

Hertel 45675105 Chucking Reamer 0.1925 in Solid Carbide

Product Description

The HERTEL 45675105 is a solid carbide chucking reamer designed for precision hole finishing in metalworking and machining applications. With a reamer diameter of 0.1925 inches and a 4-flute straight flute geometry, it delivers consistent sizing and smooth surface finishes in through and blind holes. The bright polished coating reduces friction and aids chip evacuation. At 3 inches overall length with a 1-inch flute length and a straight shank, this reamer mounts directly in standard chucks or collets on CNC machines, lathes, and drill presses. It cuts in a right-hand direction and is suited for production environments requiring tight dimensional tolerances.

This chucking reamer is intended for use in machine shop and manufacturing environments where hole sizing accuracy is critical. It is appropriate for reaming holes in ferrous and non-ferrous materials where a clean, finished bore diameter is required. The straight shank makes it compatible with standard collet chucks and keyless drill chucks commonly found in machining centers and CNC lathes. Typical applications include fixture work, jig boring, and production line reaming where repeatable results are necessary.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding machining conditions
• 0.1925 inch reamer diameter for precision hole finishing
• 4-flute straight flute design for smooth cutting action and consistent surface finish
• Bright polished finish reduces friction and improves chip flow
• Right-hand cutting direction compatible with standard machine spindle rotation
• Straight shank for direct mounting in collets or standard chucks without adapters

Compatibility

Designed as a machine-mounted chucking reamer compatible with standard collet chucks and drill chucks accepting a straight shank; suitable for use in CNC machining centers, lathes, and drill presses requiring a 0.1925 inch finished bore diameter.

Installation Notes

Installation and use of this reamer should be performed by a qualified machinist. Ensure the machine spindle is fully stopped and the chuck is secured before mounting or removing the reamer. Verify proper chuck or collet size matches the straight shank diameter before clamping to prevent runout. Use appropriate cutting fluid for the workpiece material to extend tool life and maintain bore quality.
