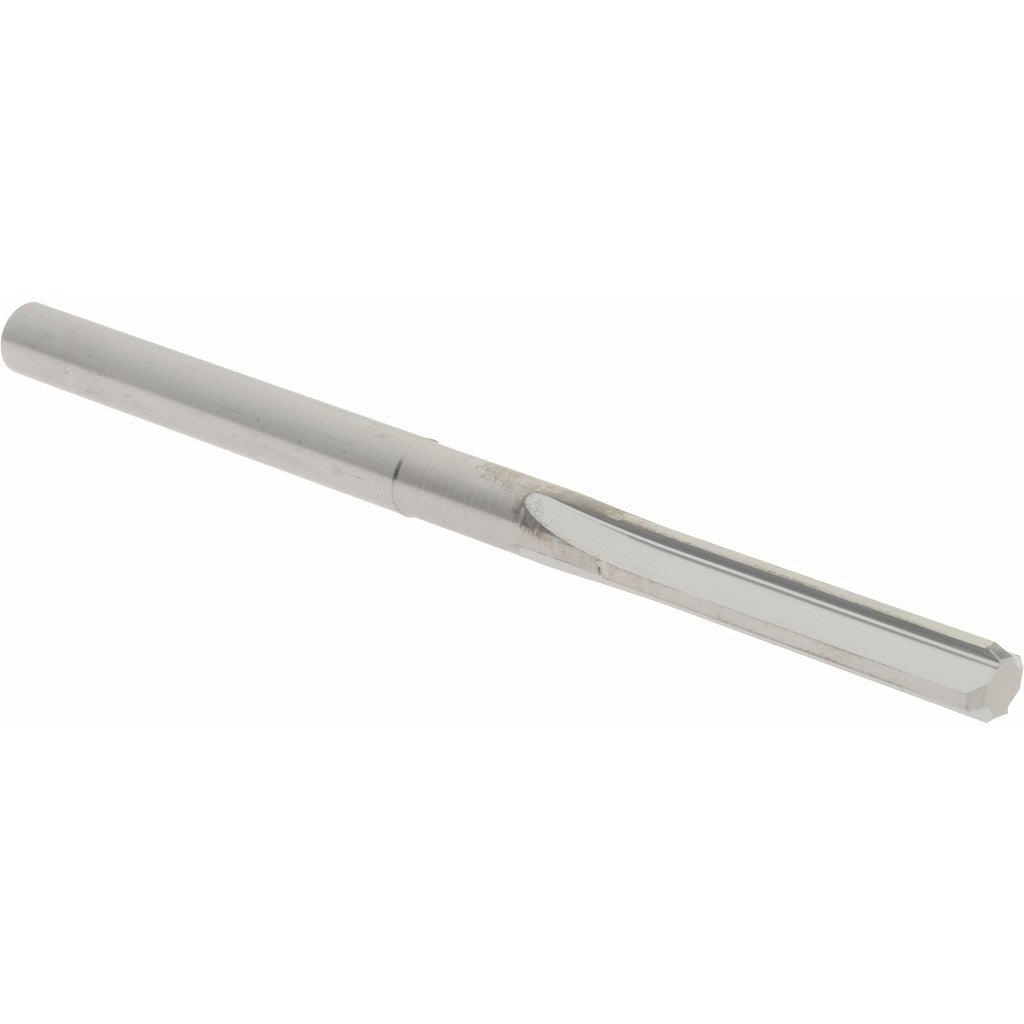

Hertel 45675071 Chucking Reamer 0.1905 in Solid Carbide

Product Description

The HERTEL 45675071 is a solid carbide chucking reamer designed for precision hole finishing in metalworking and machining applications. With a 0.1905-inch reamer diameter and a 3-inch overall length, this tool delivers accurate, repeatable bore sizing in a compact straight-shank configuration. The 4-flute straight flute geometry combined with a bright polished finish reduces friction and promotes clean chip evacuation during right-hand cutting operations. Solid carbide construction provides the rigidity and wear resistance needed for consistent performance in production environments.

This chucking reamer is suited for use in CNC machining centers, manual drill presses, and lathes where precise bore tolerances are required. The straight shank allows direct mounting in standard drill chucks or collet holders without additional adapters. Typical applications include finishing drilled or bored holes in ferrous and non-ferrous metals, plastics, and composite materials where a controlled fit is specified. Machinists, tool-and-die makers, and precision machining shops are the primary users of this tool.

Key Features

• 0.1905-inch reamer diameter for precise hole finishing to tight tolerances
• Solid carbide construction for superior rigidity and extended tool life compared to HSS
• 4-flute straight flute design promotes smooth cutting action and efficient chip clearance
• Bright polished finish reduces built-up edge and friction during cutting
• Straight shank fits standard chucks and collet holders without adapters
• Right-hand cutting direction for use with conventional clockwise spindle rotation

Compatibility

Designed as an OEM-style chucking reamer for use in standard drill chucks and collet-style toolholders on CNC machining centers, manual mills, drill presses, and lathes accepting straight-shank tooling.

Installation Notes

Installation is performed by qualified machinists familiar with rotary cutting tool setup. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before mounting or removing the reamer. Secure the straight shank firmly in a properly sized collet or drill chuck to prevent runout, which will negatively affect bore accuracy and tool life. Always run reamers at appropriate speeds and feeds for the workpiece material and apply cutting fluid where applicable to maximize finish quality and tool longevity.
