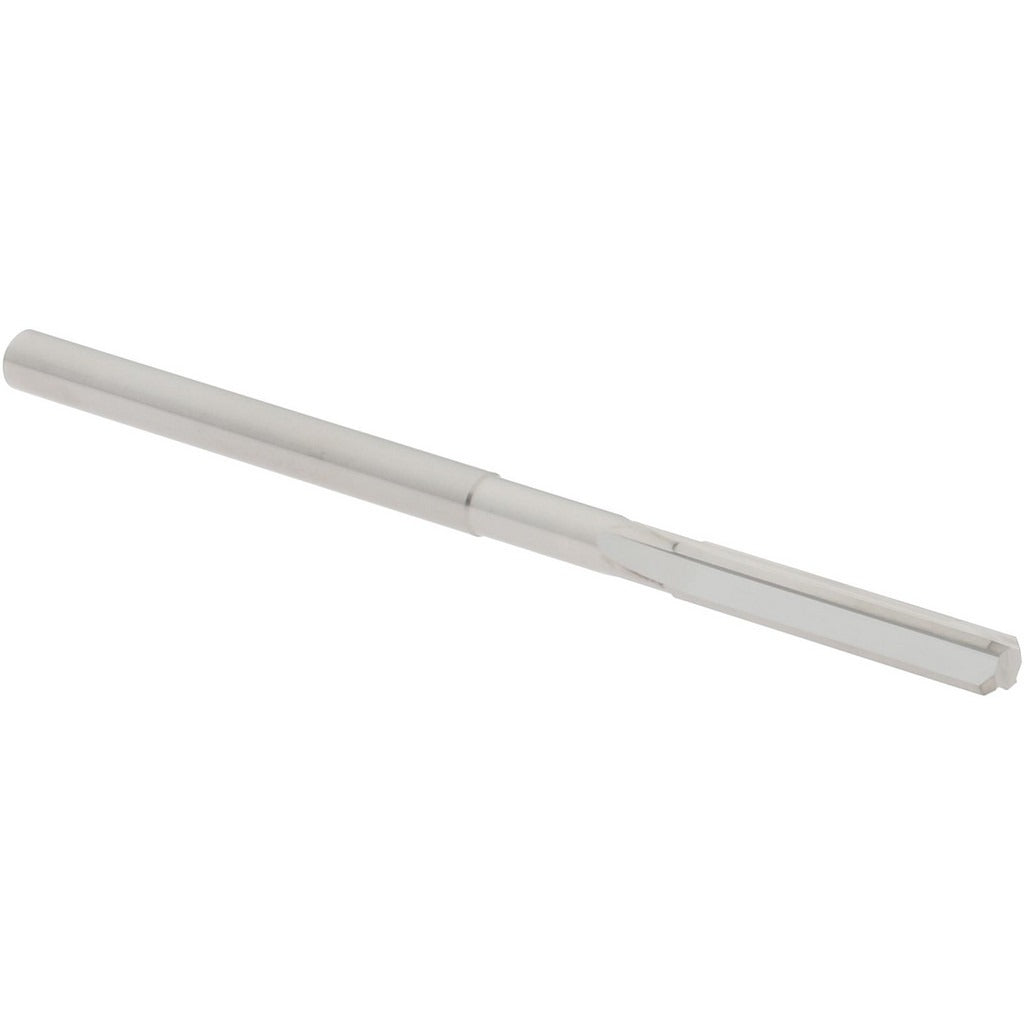

Hertel 45674793 Chucking Reamer 0.1315 in Solid Carbide

Product Description

The HERTEL 45674793 is a solid carbide chucking reamer designed for precision hole finishing in machining applications. With a 0.1315-inch diameter and a bright polished finish, this reamer delivers accurate, smooth bores in a variety of workpiece materials. The straight flute design and right-hand cutting direction make it well-suited for through-hole and blind-hole reaming where consistent sizing and surface finish are required. At 2.5 inches overall length with a 0.75-inch flute length, it fits standard machining center and drill press setups. Machinists and toolroom professionals rely on solid carbide construction for its rigidity and wear resistance in demanding production environments.

This chucking reamer is used in precision machining shops, toolrooms, and production environments where tight hole tolerances are required. Its straight shank allows direct mounting in standard drill chucks, collet chucks, and floating reamer holders. The 0.1315-inch diameter falls in the 0.1000 to 0.1499 inch reamer diameter range, making it appropriate for small-diameter hole finishing in metals and engineered plastics. It is a single-piece, non-adjustable tool intended for consistent repetitive use on CNC machining centers, manual mills, and drill presses.

Key Features

• Solid carbide construction for rigidity and extended tool life
• Bright polished finish reduces friction and aids chip evacuation
• Straight flute geometry suited for through-hole and blind-hole reaming
• Right-hand cutting direction compatible with standard spindle rotation
• Straight shank fits standard chucks and collet holders without adapters
• 4-flute design balances material removal with bore surface finish

Compatibility

Designed as a standard chucking reamer for use in drill chucks, collet chucks, and floating holders on CNC machining centers, manual mills, and drill presses accepting a straight shank in the 0.1315-inch diameter range.

Installation Notes

Installation and use should be performed by a qualified machinist or toolroom professional. Ensure the machine spindle is fully stopped and locked out before mounting or removing the reamer. Secure the straight shank firmly in the chuck or collet to the proper clamping depth to prevent pullout during cutting. Use appropriate cutting fluid for the workpiece material to extend tool life and maintain bore quality.
