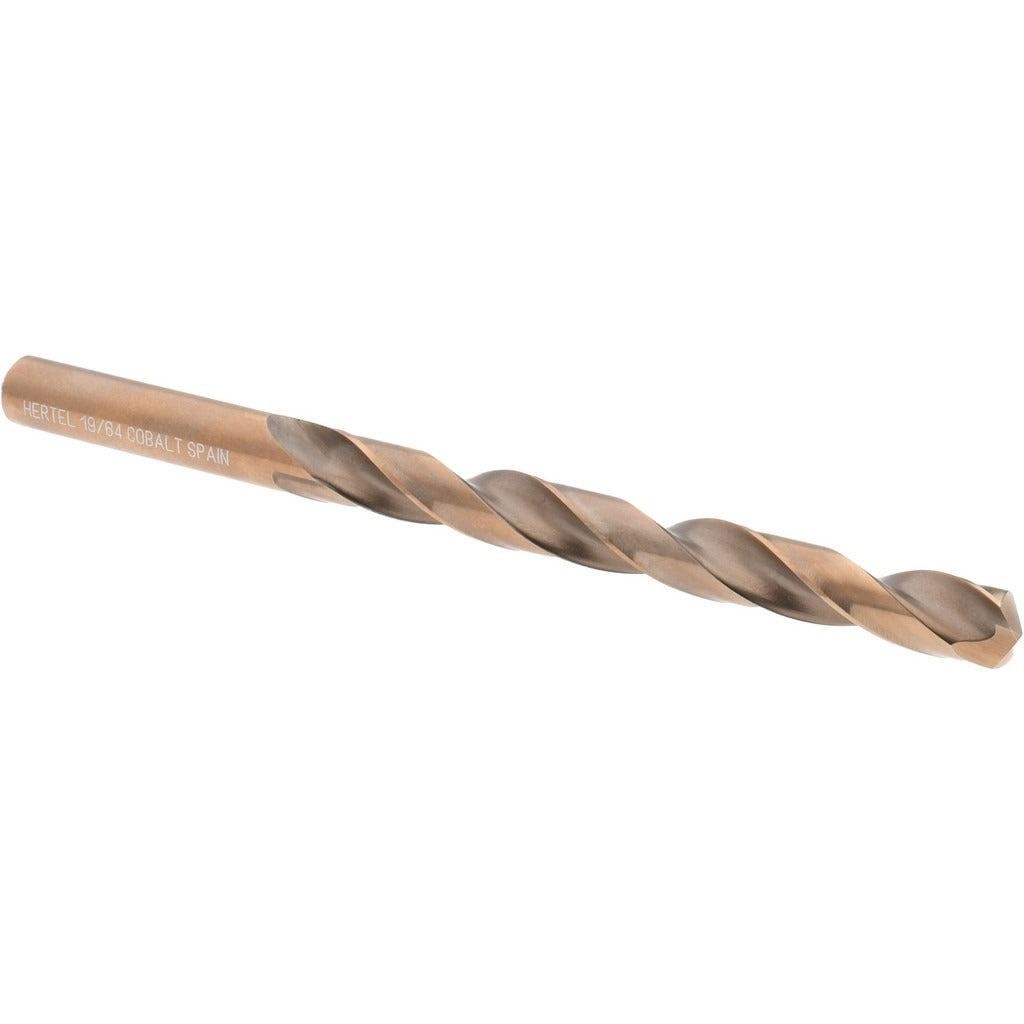

Hertel 42003 Cobalt Jobber Drill Bit 19/64 in 135 Deg

Product Description

The HERTEL 42003 is a cobalt jobber-length drill bit designed for demanding metal drilling applications in trade and industrial environments. It measures 19/64 inch (0.2969 inch decimal) in diameter with an overall length of 4-3/8 inches and a flute length of 3-1/16 inches. The 135-degree split point reduces walking on contact and lowers thrust requirements when starting a hole in hard or work-hardened materials. An oxide and gold coating provides added surface hardness and lubricity. This bit is installed and used by machinists, pipefitters, HVAC technicians, and electricians working with ferrous metals, stainless steel, and other hard alloys.

This drill bit is suited for right-hand drilling operations in residential and commercial trade applications where standard high-speed steel bits wear prematurely. The straight cylindrical shank fits standard 3-jaw drill chucks on corded drills, drill presses, and magnetic base drills. With a 5xD flute-to-diameter ratio, it handles moderate chip evacuation in through-hole and blind-hole drilling. It is packaged individually and ships as a quantity of one.

Key Features

• Cobalt construction for drilling hard and abrasive metals including stainless steel and high-alloy materials
• 135-degree split point reduces drill walking and lowers feed force at hole start
• Oxide and gold coating improves surface lubricity and extends tool life
• Spiral flute with regular helix promotes consistent chip evacuation
• Straight cylindrical shank fits standard drill chucks without adapters
• Right-hand cutting direction for use with conventional forward-rotation drilling equipment

Compatibility

Designed as an OEM-style replacement or direct-use jobber-length drill bit compatible with standard 3-jaw drill chucks accepting a straight cylindrical shank in the 0.2500 to 0.3000 inch diameter range.

Installation Notes

Secure the shank fully in the drill chuck and verify chuck key is removed before operation. Use appropriate cutting fluid or lubricant when drilling ferrous metals to extend bit life and improve hole quality. Operators should wear ANSI-rated eye protection during all drilling operations. Allow the bit to cool between cuts when working in hard alloys to prevent heat buildup that can soften the cutting edges.
