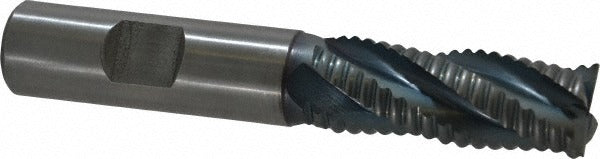

Hertel 41120643 Roughing End Mill 5/8 in 4 Flute Cobalt

Product Description

The HERTEL 41120643 is a single-end cobalt roughing end mill designed for aggressive material removal in milling operations. Built from M42 cobalt high-speed steel and coated with TiCN, it handles tough ferrous and non-ferrous metals with reduced heat buildup and extended tool life. The 4-flute, coarse-pitch geometry produces rapid stock removal while maintaining edge integrity. At 5/8 inch in diameter with a 1-5/8 inch length of cut and 3-3/4 inch overall length, it fits standard vertical mills, CNC machining centers, and knee mills. Centercutting capability allows plunge entry without a pre-drilled pilot hole. Licensed machinists, tool-and-die makers, and CNC operators are the primary users.

This end mill is suited for roughing passes on steel, stainless, cast iron, and similar hard materials in both job shop and production environments. The right-hand cut and right-hand flute direction are standard for conventional CNC and manual milling setups. Regular length geometry keeps deflection low during heavy roughing cuts. The 5/8 inch shank seats directly in ER collet chucks, end mill holders, and Weldon-style tool holders common in both manual and CNC spindles.

Key Features

• M42 cobalt HSS construction for heat and wear resistance in hard materials
• TiCN coating reduces friction and extends tool life compared to uncoated HSS
• Coarse-pitch 4-flute roughing geometry for high material removal rates
• Centercutting design allows direct plunge milling without a pilot hole
• Right-hand cut, right-hand flute — compatible with standard milling spindle rotation
• 5/8 inch shank matches mill diameter for direct collet or end mill holder mounting

Compatibility

Designed as an OEM-style replacement or standard tooling selection for milling machines accepting 5/8 inch shank end mills, including vertical knee mills and CNC machining centers with ER, Weldon, or hydraulic toolholders in the appropriate bore size.

Installation Notes

Installation is performed by qualified machinists or CNC setup personnel. Power down and lock out the spindle before changing tooling. Seat the shank fully in the tool holder and torque the set screw or collet nut to the holder manufacturer specification before operation. Verify runout with a dial indicator after seating, as excessive runout accelerates edge wear on roughing geometry.
