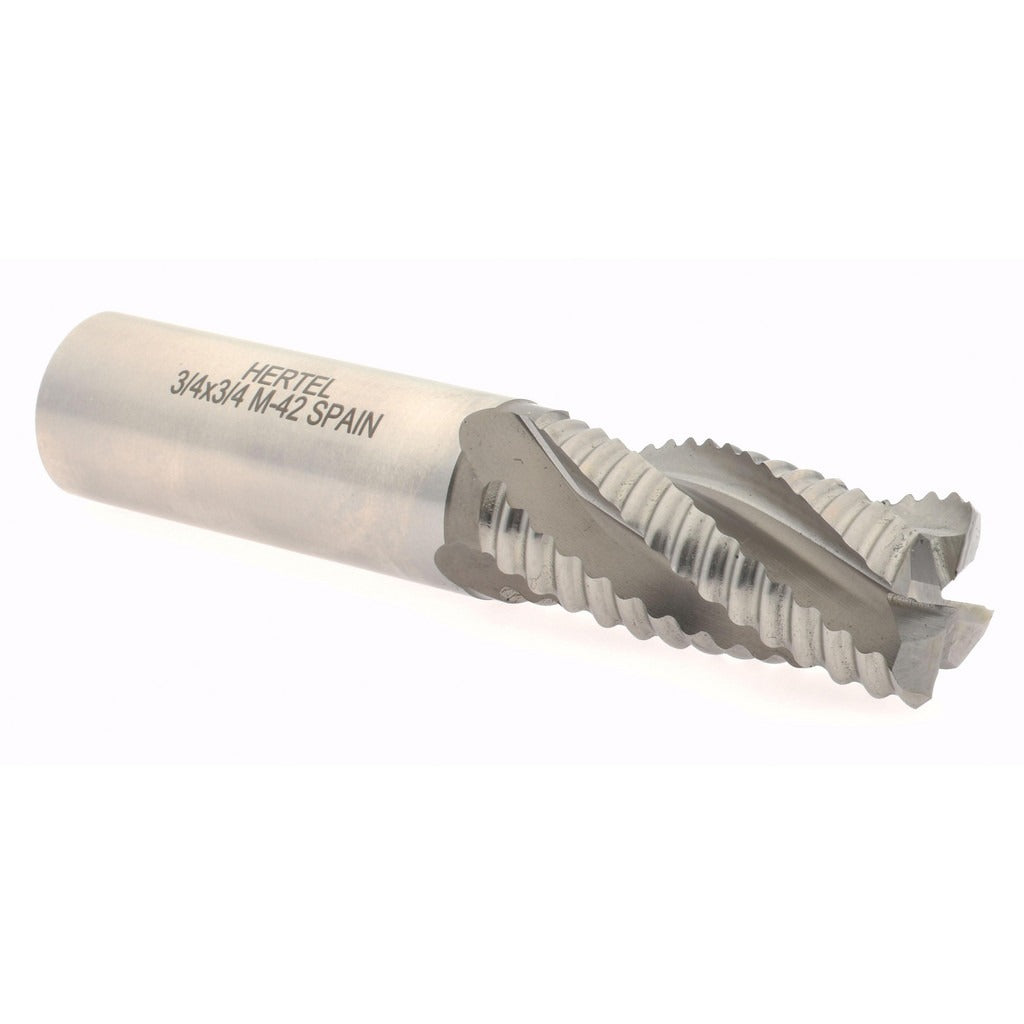

Hertel 41120445 Roughing End Mill 3/4 in 4 Flute Cobalt

Product Description

The HERTEL 41120445 is a single-end roughing end mill designed for aggressive material removal in milling operations. Built from M42 cobalt high-speed steel with a bright, uncoated finish, it delivers toughness and heat resistance under heavy chip loads. The 3/4-inch diameter cutter runs 4 flutes in a right-hand cutting, right-hand flute configuration with a 1.625-inch length of cut and a 3.75-inch overall length. The center-cutting geometry allows plunge entry as well as conventional side milling. Licensed machinists and tool-and-die technicians install this type of end mill on manual knee mills and CNC machining centers for roughing passes on steel, stainless, and high-temp alloys.

This end mill is suited for roughing applications in ferrous and difficult-to-machine materials where cobalt tooling outperforms standard M2 high-speed steel. The regular-length body and 3/4-inch shank make it compatible with standard ER, R8, and CAT toolholders commonly found in job shops and maintenance machining environments. The single-end design is the standard choice when the full shank is needed for extended clamping depth or when stub-arbor holders are in use.

Key Features

• M42 cobalt construction for improved red hardness and wear resistance over standard HSS
• Center-cutting geometry supports plunge milling and slot entry
• Right-hand cut and right-hand helix for conventional chip evacuation
• Bright, uncoated finish suited for use with cutting fluid on ferrous materials
• Regular-length profile with matched 3/4-inch shank and cutter diameter for rigid setups
• 4-flute design balances material removal rate with chip clearance on tough alloys

Compatibility

Designed as a standard single-end roughing end mill with a 3/4-inch shank, compatible with any toolholder accepting a 3/4-inch straight shank including ER collet chucks, R8 collets, and similar systems on vertical milling machines and CNC machining centers.

Installation Notes

Installation is performed by qualified machinists following standard toolholding procedures. Ensure the spindle is fully stopped and the machine is in a locked or e-stop state before changing tooling. Seat the shank to the full recommended clamping depth in the holder to prevent pullout under interrupted or heavy cuts. Confirm runout with a dial indicator before beginning a roughing pass on close-tolerance work.
