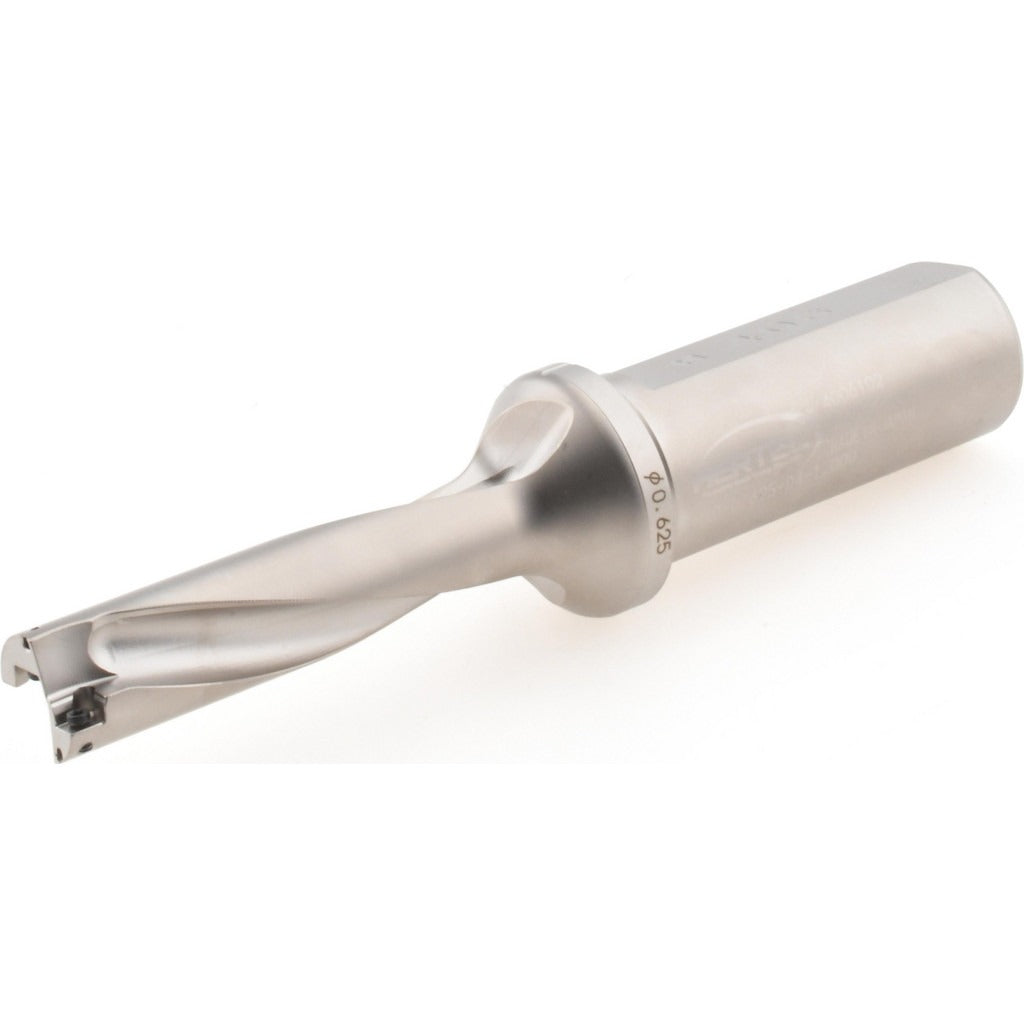

Hertel 4006102 Indexable Insert Drill 5/8 Inch 4xd

Product Description

The HERTEL 4006102 is a 5/8 inch diameter indexable insert drill designed for precision hole-making in metalworking applications. Built on a 4xD depth-to-diameter ratio, it reaches a maximum drill depth of 2.5 inches in a single pass. The tool accepts two HPMT052804-GP inserts and features a 1 inch straight cylindrical shank for rigid, repeatable clamping in standard drill chucks or toolholders. A coolant-through design with a 1/4 inch shank-end coolant thread supports high-speed metal removal while managing heat at the cutting zone. Right-hand cutting geometry and a steel body make this a durable workhorse for production drilling environments.

This drill is suited for CNC machining centers, mill-turns, and horizontal boring machines running production volumes on steel, cast iron, and similar ferrous workpiece materials. The HID-compatible drill style fits setups requiring a modular indexable drilling system. With a flute length of 2.618 inches and an overall body length of 5.709 inches, it fits standard tooling envelopes on most horizontal and vertical machining platforms. A collar diameter of 1.26 inches provides a positive stop reference during setup.

Key Features

• 5/8 inch (15.88 mm) drill diameter with a maximum drill diameter of 0.644 inches
• 4xD depth ratio delivers up to 2.5 inches maximum drill depth in one pass
• Accepts 2 HPMT052804-GP indexable inserts for quick edge changes without regrinding
• Coolant-through body with 1/4 inch threaded coolant port at shank end
• 1 inch straight cylindrical shank for broad toolholder compatibility
• Right-hand cutting direction; steel body construction

Compatibility

Compatible with HID drill style tooling systems. Designed to accept HPMT052804-GP indexable inserts. Fits toolholders with a 1 inch bore straight shank interface.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the machine spindle is fully stopped and locked out before mounting or changing inserts. Secure the shank to the specified clamping torque range of the toolholder manufacturer. Verify coolant line connection at the shank-end port before initiating a cutting cycle to protect insert life and workpiece finish.
