Hertel 2558252 Chucking Reamer 0.2495 in Hss Straight Flute

Product Description

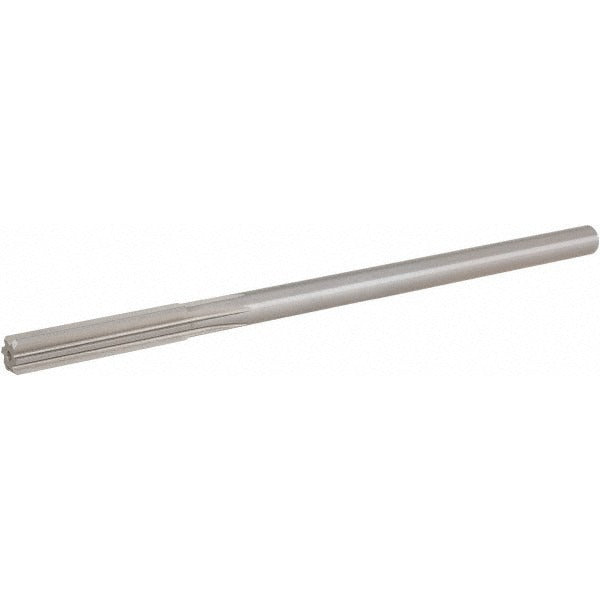

The HERTEL 2558252 is a straight-flute chucking reamer designed for precision hole finishing in metal machining operations. Manufactured from high-speed steel (HSS) with a bright, uncoated finish, this reamer delivers accurate, controlled material removal to bring drilled or bored holes to a tight final diameter of 0.2495 inches. The straight-cylindrical shank allows secure chucking in standard drill chucks, collets, or machine tool holders. At 6 inches overall length with a 1.5-inch flute length, it is well suited for through-hole and blind-hole finishing at moderate depths. Right-hand cutting direction follows conventional reaming practice for CNC machining centers, lathes, and drill presses.

This chucking reamer is used in machine shops, toolrooms, and production environments where close-tolerance hole finishing is required. It is appropriate for reaming ferrous and non-ferrous workpieces where a precision diameter in the 0.2000 to 0.2499 inch range is specified. The dowel pin reamer designation indicates suitability for finishing holes that accept standard dowel pins requiring a snug or press fit. Installation and use are performed by machinists and tool-and-die professionals working to engineering drawings that call out final hole size.

Key Features

• 0.2495 inch finished hole diameter for close-tolerance dowel pin and precision bore applications
• High-speed steel (HSS) construction provides good hardness and wear resistance across a range of workpiece materials
• Straight flute geometry suited for through-holes and materials that do not require the chip-breaking action of spiral flutes
• Bright, uncoated finish — no coating buildup to affect diameter accuracy
• Straight-cylindrical shank for straightforward mounting in standard chucks and collets
• Right-hand cutting direction consistent with conventional machine-tool spindle rotation

Compatibility

Designed as an OEM-style chucking reamer for use in standard drill chucks, collets, and machine tool holders accepting a straight-cylindrical shank in the 0.2495 inch diameter class.

Installation Notes

Chucking reamers are installed and operated by qualified machinists following standard shop practices. Power down and lock out the machine spindle before mounting or removing the reamer from the chuck or collet. Use appropriate cutting fluid for the workpiece material to extend tool life and maintain dimensional accuracy. Pre-drill or bore the hole to within recommended reaming stock allowance before final reaming — do not attempt to remove excessive material in a single reaming pass.
