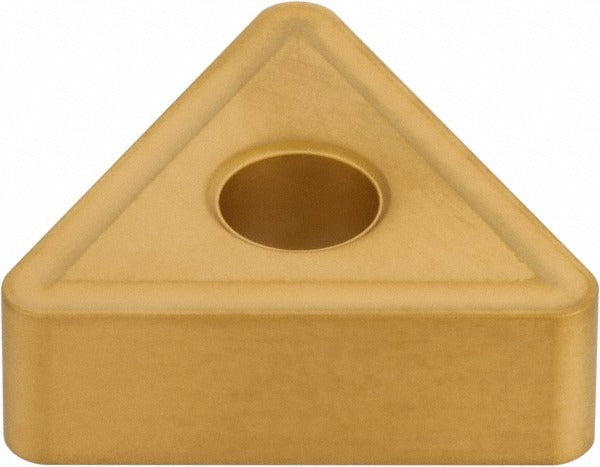

Hertel 1000293 TNMG666R HC335 Carbide Turning Insert

Product Description

The HERTEL 1000293 is a TNMG666R-style indexable turning insert manufactured from solid carbide and finished with a CVD-applied multilayer coating of TiC, TiCN, and TiN under the manufacturer grade HC335. The insert features a 60-degree triangular shape with a neutral hand orientation and a 3/32-inch corner radius. At 1.299 inches in length with a 3/4-inch inscribed circle and 3/8-inch thickness, this insert is sized for medium-to-heavy turning operations. It is intended for use by machinists and CNC lathe operators working in production or job-shop environments.

This insert is suited for turning applications involving steel and stainless steel workpiece materials, corresponding to ISO material groups P and M. The TNMG style with G-type chip breaker geometry is commonly applied in continuous and semi-interrupted cuts at moderate to high feed rates. The HC335 grade and CVD multilayer coating provide wear resistance and thermal stability appropriate for these material groups. The insert is held using either a clamp or a pin-lock method, offering flexibility across a range of compatible toolholders. Each package contains one insert; the minimum order quantity is 10 pieces.

Key Features

• Solid carbide substrate with CVD-applied TiC, TiCN, and TiN multilayer coating for extended tool life
• TNMG666 style with 60-degree triangle insert shape and neutral hand orientation
• 3/32-inch (0.0938-inch) corner radius for controlled surface finish on steel and stainless steel
• G-type chip breaker geometry suited for moderate to high feed turning
• Compatible with clamp and pin-lock holding methods for broad toolholder versatility
• Clearance code N, tolerance code M for standard TNMG seat fitment

Compatibility

Designed as an OEM-style replacement or direct-fit indexable insert for TNMG-style toolholders accepting a 3/4-inch inscribed circle, 3/8-inch thickness, and 0.315-inch hole diameter. Material grades C5 and C6 apply.

Installation Notes

Insert indexing and replacement should be performed by a qualified machinist with the machine powered down and the spindle fully stopped. Use the appropriate torx or hex key to secure the clamp or pin-lock per the toolholder manufacturer specifications. Inspect the insert pocket and seating surface for chips or debris before seating the new insert. Handle carbide inserts with care to avoid chipping the cutting edge prior to use.
