Hertel 1-201-0601 3-jaw Self-centering Lathe Chuck 6 in

Product Description

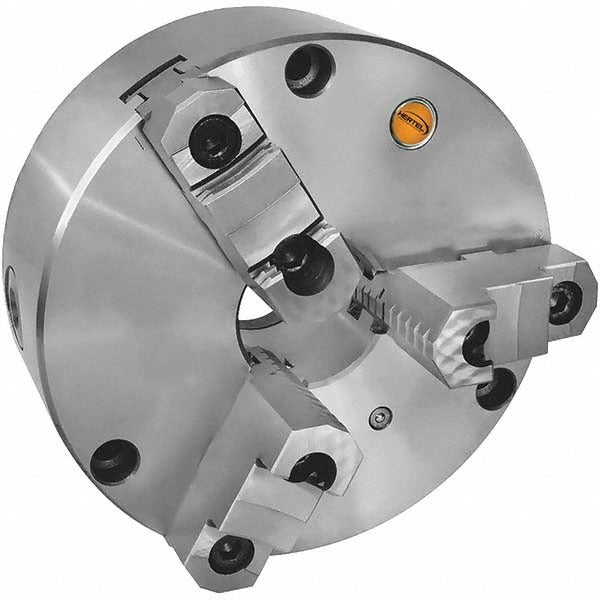

The HERTEL 1-201-0601 is a self-centering 3-jaw manual lathe chuck with a 6-inch body diameter, designed for use on manual engine lathes in machine shop and industrial turning applications. The cast iron body is rated to 3,000 RPM and delivers tight runout tolerances, with an axial runout of 0.0008 inches and a radial runout of 0.0012 inches. The chuck accepts a jaw capacity range from 1/8 inch minimum up to 6-19/64 inches maximum, making it suitable for gripping a wide range of round and hex stock. The through-hole diameter measures 1.6535 inches. The reversible jaws extend workholding flexibility for both inside and outside gripping.

This chuck is intended for manual lathe setups in production machine shops, tool rooms, and maintenance facilities. It is well suited to turning, facing, and boring operations on steel, aluminum, and other machinable materials. The self-centering scroll mechanism allows rapid three-jaw simultaneous movement for fast part changeover. At 20 pounds, the unit is sized for mid-range engine lathes. Machinists and machine tool technicians are the primary installers and users of this chuck.

Key Features

• Self-centering 3-jaw scroll design for fast, repeatable workholding
• Cast iron body rated to 3,000 RPM for general-purpose turning
• Axial runout of 0.0008 inches and radial runout of 0.0012 inches for precision turning
• Jaw capacity range from 1/8 inch to 6-19/64 inches for versatile stock sizes
• Reversible jaws for both inside-diameter and outside-diameter clamping
• Through-hole diameter of 1.6535 inches accommodates bar stock pass-through

Compatibility

Designed as an OEM-style replacement or direct-mount manual lathe chuck for mid-range engine lathes accepting a 6-inch chuck body with a standard spindle nose configuration.

Installation Notes

Installation should be performed by a qualified machinist or machine tool technician. Power down and lock out the lathe spindle drive before mounting or removing the chuck. Verify that the spindle nose type and thread or taper specification of the lathe matches the chuck backing plate before installation. Torque all mounting hardware evenly and confirm runout with a test indicator before returning the machine to service.
