Copeland RST70C1E-TA5-959 Hermetic Compressor 7,160 BTU @ 20 230 VAC 3 PH R448A

Product Description

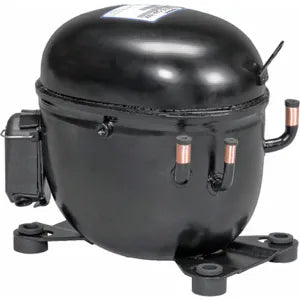

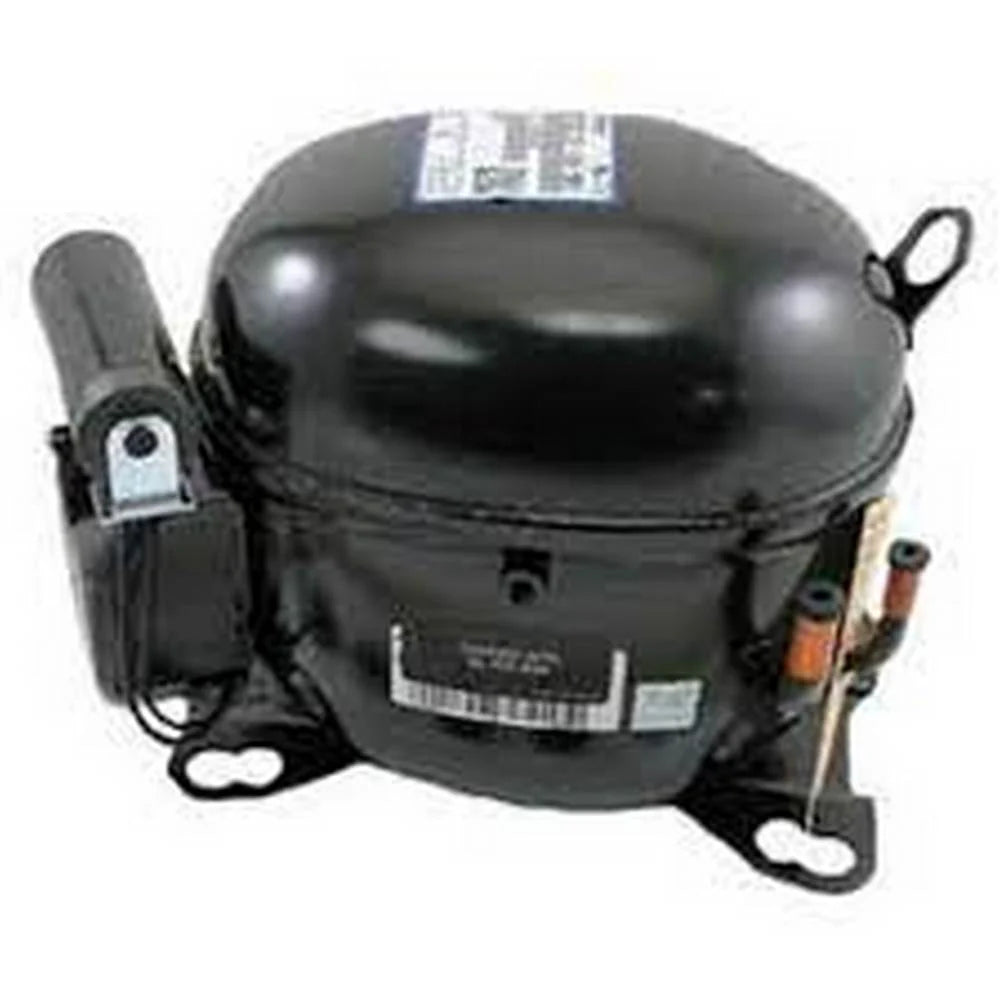

The Copeland hermetic compressor, model RST70C1E-TA5-959, is designed for air conditioning and heat pump applications. This model supports refrigerants R-404A and R-407C. It features a cooling capacity of 6,980 BTU/hour and operates within an extended medium temperature range. The compressor is suitable for commercial refrigeration and HVAC applications.

• Application: A/C or H/P
• Voltage: 208-230/3/60
• Weight: 50 lbs

Product Highlights

This compressor is built for high performance and reliability in various temperature conditions. It includes built-in electrical components and is compatible with R-404A and R-407C refrigerants.

Product Information

Standard Information

• Body Type: RS
• Mounting Dimensions: 8 inches x 4.8 inches

Technical Specifications

• Cooling Capacity: 6980 BTU/H
• Discharge Line Size: 3/8 inch
• Suction Line Size: 1/2 inch
• Power Rating: 1160 W
• Sound Level: 72 dBA
• Dimensions: 10.3 inches L x 7.1 inches W x 9.8 inches H
• Refrigerant Type: R-404A or R-407C
• Phase: Three
