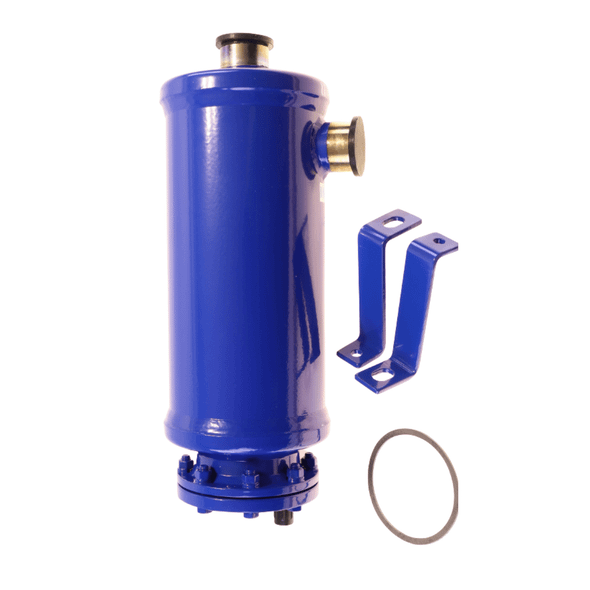

Henry Technologies S-1903 Oil Separator Conventional Serviceable 49.0 CFM (2-5/8 inches ODS)

Product Description

Henry Technologies S-1903 is a conventional serviceable oil separator with a 2-5/8 inch ODS refrigerant connection and 49.0 CFM capacity. It separates oil from refrigerant lines for refrigeration applications and is compatible with scroll and reciprocating compressors in multi-compressor racks and remote condensing units. The unit features SAE flare oil connections, a 1/8 inch NPT oil drain, a magnetized oil float for debris collection, and no moving parts in the separation zone.

• Conventional serviceable design; 2-5/8" ODS refrigerant connection; 49.0 CFM capacity.
• 3/8" SAE flare oil connections; 1/8" NPT oil drain; magnet on oil float for debris collection.
• No moving parts in oil separation zone; low pressure drop; compatible with scroll and reciprocating compressors; not recommended for screw or rotary vane compressors.

Product Highlights

Conventional serviceable oil separator with 49.0 CFM capacity, 2-5/8" ODS connection, 3/8" SAE flare oil connections, 1/8" NPT drain, and magnetic oil float.

Product Information

Standard Information

• Brand: HENRY TECHNOLOGIES
• Manufacturer Part Number: S-1903
