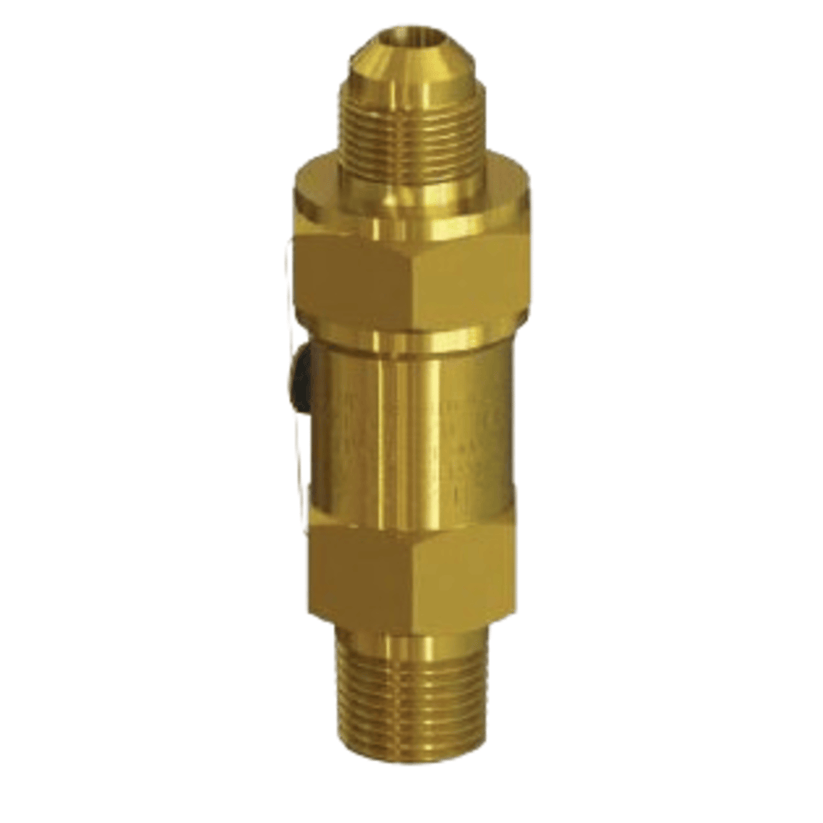

Henry Technologies 5230AX-400 Relief Valve, Brass Straight-Thru Type 400 psi

Product Description

The HENRY TECHNOLOGIES 5230AX-400 'X' Series Pressure Relief Valve features an enhanced design based on the standard range. Compliant with EN ISO 4126, the valve reseats within 15% of set pressure after discharge, minimizing refrigerant loss. Suitable for HFC, HCFC, and CO2 refrigerant gases, the 523 series can operate at pressures up to 46 bar.

• Reseats within 15% of set pressure following a discharge, compliant with EN ISO 4126
• Features high flow capacity
• Constructed with Fluoroelastomer soft seat material for excellent sealing

Product Highlights

This relief valve is suitable for use with HFC, HCFC and CO2 refrigerant gases and has an allowable operating temperature of -40�C to +120�C.

Product Information

Standard Information

• Brand: HENRY TECHNOLOGIES
• Manufacturer Part Number: 5230AX-400

Technical Specifications

• Brand: Henry
• Condition: New
• Refrigerant Gas: suitable for use with HCFC and HFC refrigerants
• Pressure Setting (psig): 400
• Part #: 5230AX-400
