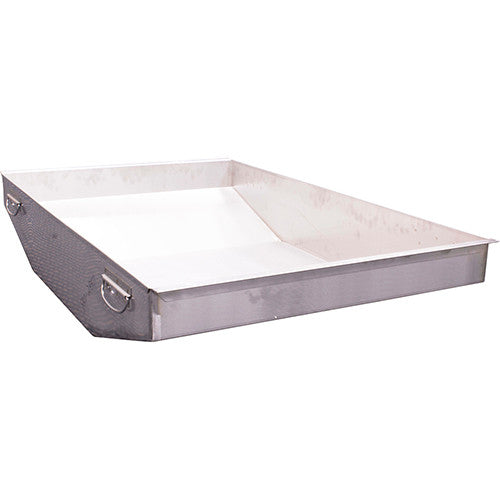

Henny Penny 70346 Drain Pan Weld Assembly Model 323

Product Description

The HENNY PENNY 70346 is a welded drain pan assembly designed for the Henny Penny 323 short configuration commercial fryer. This component serves as the structural drain collection point beneath the fry vessel, channeling used oil and condensate away from the cooking chamber during draining operations. Built as a weld assembly, it provides a rigid, leak-resistant basin that holds up to the thermal cycling and heavy-use demands of commercial frying environments. Installation of this part is typically handled by a commercial kitchen equipment technician or qualified service professional.

This drain pan assembly is intended for use in commercial foodservice operations running Henny Penny pressure or open fryer equipment in the 323 short model line. It is a direct OEM-style replacement component suited for kitchens where the existing drain pan has experienced damage, corrosion, or weld failure. Replacement of this assembly restores proper oil drainage and containment function, which is critical to safe and compliant fryer operation.

Key Features

• Welded construction provides a rigid, leak-resistant drain pan assembly
• Designed specifically for the Henny Penny 323 short fryer configuration
• Functions as a direct OEM-style replacement for damaged or failed drain pans
• Supports proper oil drainage and containment during fryer service cycles

Compatibility

Designed as an OEM-style replacement drain pan weld assembly for the Henny Penny 323 short model commercial fryer.

Installation Notes

Installation should be performed by a qualified commercial kitchen equipment technician. Before beginning any service work, shut down and de-energize the fryer and allow the oil and all components to cool completely to avoid burn or scald hazards. Verify the replacement assembly fits the existing mounting points before final installation. Follow all applicable local health, safety, and equipment codes during service.

Technical Specifications

• Assembly Type: Weld Assembly
• Component: Drain Pan
• Application: Model 323 Short Configuration

Standard Information

• Brand: HENNY PENNY
• Manufacturer Part Number: 70346
