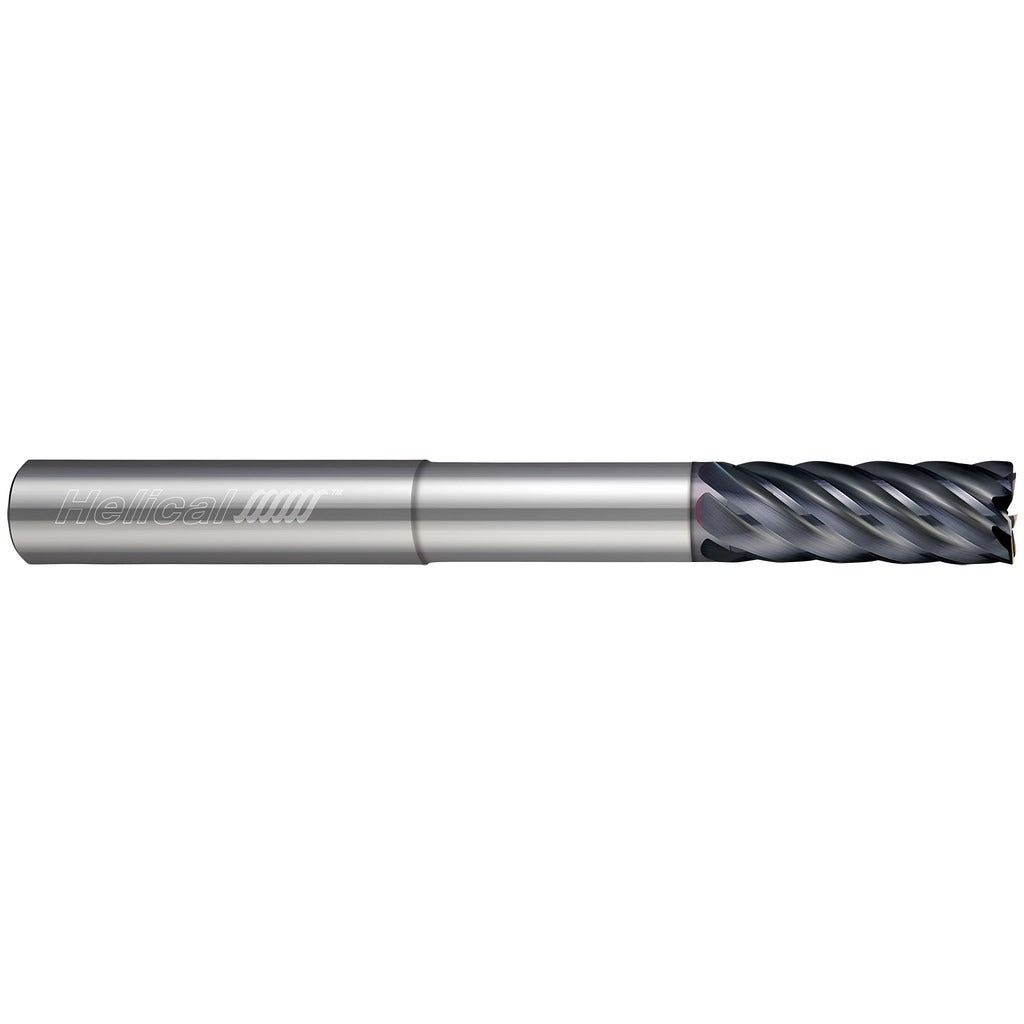

Helical Solutions 86769 Corner Radius End Mill 3/8 in 5 Flute

Product Description

The HELICAL SOLUTIONS 86769 is a 5-flute, solid carbide corner radius end mill engineered for demanding material removal in stainless steel, high-temperature alloys, and hardened steel. It carries a 3/8 inch mill diameter with a 0.50 mm (0.0200 inch) corner radius and a 1/2 inch length of cut. The Tplus PVD coating reduces heat buildup and extends tool life in abrasive and work-hardening materials. At 4 inches overall length with a 1-5/8 inch reach, this single-end, centercutting tool handles both roughing and finishing passes in one setup. The variable pitch geometry helps break up harmonics and reduce chatter at higher feed rates.

The 86769 is suited for aerospace, medical, and general precision machining shops running stainless steels, nickel-based superalloys, and hardened steels in the 45-65 HRC range. Its extended reach of 1-5/8 inches makes it practical for deep-pocket work and shoulder milling where standard-length tools fall short. Right-hand cutting and right-hand flute direction are standard. The straight-cylindrical shank is sized for high-precision toolholders to maintain the 0.0005 inch maximum TIR specification.

Key Features

• 5-flute variable-pitch design reduces chatter and improves surface finish in tough alloys
• Tplus PVD coating provides thermal resistance and extended tool life in stainless and high-temp materials
• 0.50 mm corner radius protects cutting edge and reduces stress concentration at the corner
• Centercutting geometry allows plunge entry and ramp milling
• Extended reach of 1-5/8 inches supports deep-pocket and shoulder milling applications
• Solid carbide substrate delivers rigidity and wear resistance in hardened and abrasive workpiece materials

Compatibility

Designed for use with high-precision toolholders. Intended for machining stainless steel, high-temperature alloys, and hardened steel. Part of the HELICAL SOLUTIONS HEV-RN-5 series.

Installation Notes

Installation should be performed by a qualified machinist following shop-standard toolholder torque procedures. Seat the straight-cylindrical shank fully in a high-precision collet or hydraulic toolholder to maintain TIR within specification. Confirm runout with a dial indicator before cutting. Use appropriate speeds, feeds, and coolant strategies recommended for the specific workpiece material and machine spindle.
