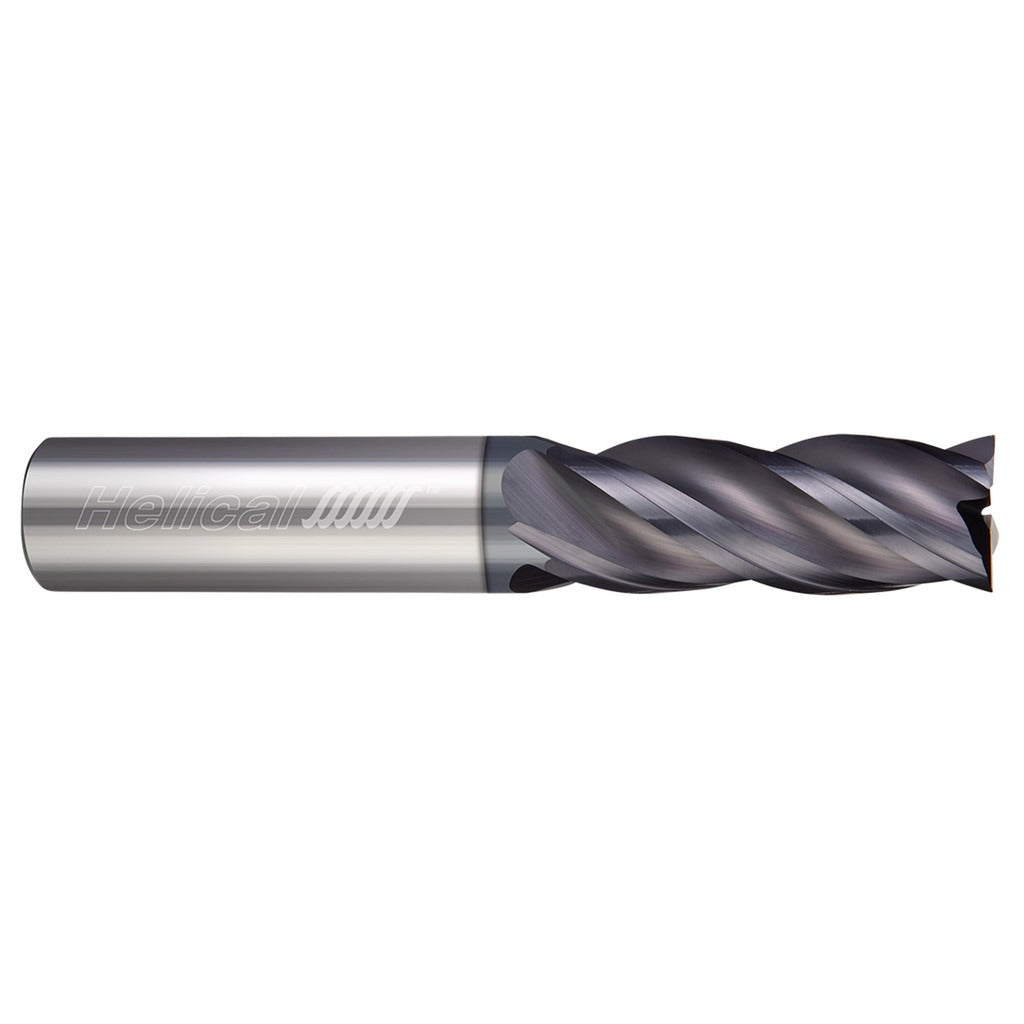

Helical Solutions 84692 Square End Mill 3/4 in 4 Flute Carbide

Product Description

The HELICAL SOLUTIONS 84692 is a solid carbide square end mill engineered for steel milling applications. It features a 3/4 inch cutting diameter, a 4-3/4 inch length of cut, and a 7 inch overall length. The four-flute, right-hand helical geometry is combined with a variable index design that distributes cutting forces unevenly around the tool, reducing chatter and vibration during aggressive cuts. The APLUS coating provides thermal resistance and surface hardness suited to ferrous materials. This tool ships as a single end, straight-cylindrical shank configuration ready for standard collet or end mill holders.

This end mill is intended for use in CNC machining centers and milling machines where steel and other ferrous alloys are the primary workpiece material. It is well suited to full-slot, peripheral, and ramping operations in production and job-shop environments. Machinists and CNC operators working with carbon steels, alloy steels, and tool steels will find the variable pitch indexing and APLUS coating particularly effective for maintaining surface finish and tool life at elevated feed rates. The solid carbide substrate supports high-speed, high-feed strategies without deflection concerns typical of HSS tooling.

Key Features

• 3/4 inch diameter with 4-3/4 inch length of cut for deep pocket and side milling capability
• Variable index geometry reduces harmonic vibration and chatter during heavy cuts
• APLUS coating enhances wear resistance and thermal performance in steel applications
• Four right-hand helical flutes with centercutting capability for plunge entry
• Solid carbide construction provides rigidity and edge retention superior to HSS tools
• Straight-cylindrical shank fits standard collet chucks and end mill holders

Compatibility

Designed as an OEM-style replacement end mill within the Helical Solutions End Mills for Steels - 4 Flute - Square - Variable Pitch series, suitable for standard 3/4 inch collet and end mill holder setups on CNC milling machines.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the spindle is fully powered down and locked before changing tooling. Verify the collet or tool holder is clean and free of chips before seating the shank, and torque the retention nut or drawbar to the machine manufacturer specification. Confirm runout with a dial indicator before beginning a production cut.
