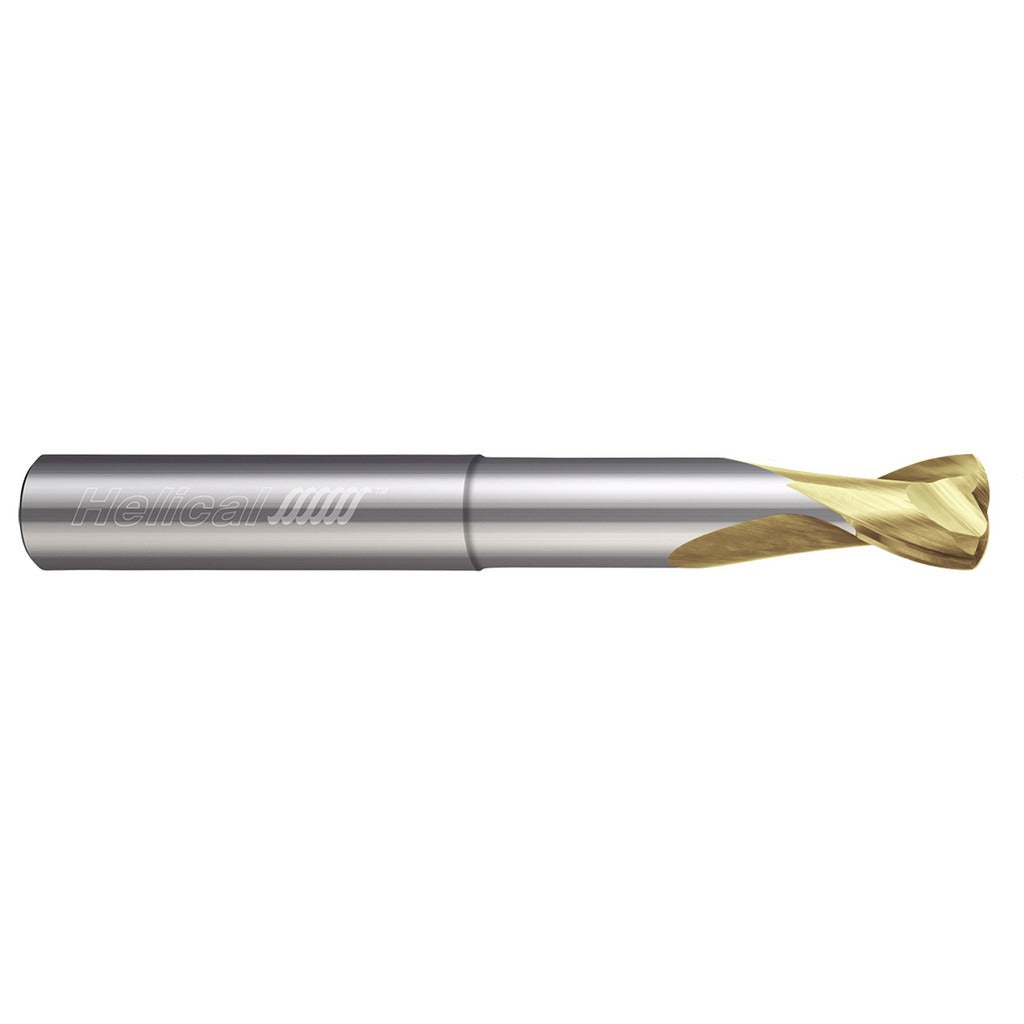

Helical Solutions 84463 High-feed End Mill 0.5in 2 Flute Carbide

Product Description

The HELICAL SOLUTIONS 84463 is a single-end, high-feed end mill designed for aggressive material removal in aluminum machining applications. Built from solid carbide with a Zplus coating, it delivers the hardness and lubricity needed for high-speed, high-feed toolpaths. The 0.5 inch mill diameter pairs with a 0.085 inch program radius, allowing the cutter to take shallow axial depths of cut at elevated feed rates. With 2 flutes and a reduced-neck geometry, it clears chips efficiently in pocketing and profiling operations. Machinists and CNC programmers running aluminum finishing or roughing cycles are the primary users of this tool.

This end mill is suited for CNC milling centers running aluminum alloys in both production and job-shop environments. The reduced-neck, long-reach design makes it well-suited for deep-pocket and cavity work where clearance between the shank and workpiece walls is critical. The 2-inch reach length and 5-inch overall length give operators access to features that standard-length tooling cannot reach. It ships as a single tool and is intended for direct spindle or collet chuck mounting in standard 1/2 inch toolholding systems.

Key Features

• Solid carbide construction for rigidity and wear resistance in aluminum cutting
• Zplus coating reduces friction and improves chip evacuation on non-ferrous materials
• 0.085 inch program radius enables high-feed toolpath strategies at reduced axial depth
• Reduced-neck geometry provides clearance in deep pockets and cavities
• 2-flute design promotes chip clearance in gummy, high-chip-volume aluminum cuts
• Single-end configuration; 0.5 inch shank fits standard collet and hydraulic chuck systems

Compatibility

Designed for use in CNC milling applications targeting aluminum alloys; fits standard 1/2 inch collet chucks, end mill holders, and hydraulic toolholding systems compatible with a 1/2 inch shank diameter.

Installation Notes

Installation is performed by qualified CNC machinists or toolroom personnel. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before changing tooling. Seat the shank fully into the holder to the recommended gauge-line depth and torque the retention mechanism per the toolholder manufacturer specification. Verify runout with a dial indicator before beginning the cut cycle, as excessive runout accelerates edge wear on carbide tools.
