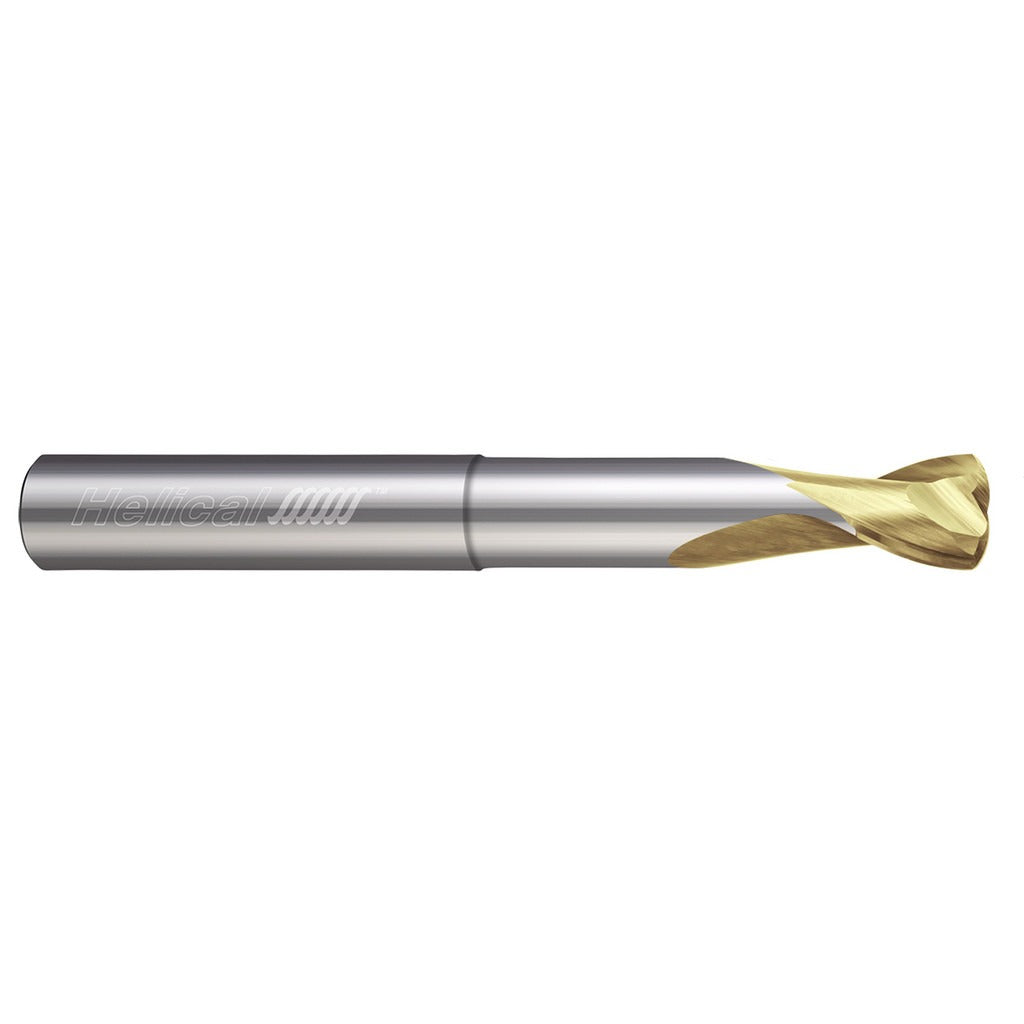

Helical Solutions 84453 High-feed End Mill 1/4 in 2 Flute

Product Description

The HELICAL SOLUTIONS 84453 is a single-end, high-feed end mill designed for aggressive material removal in aluminum machining applications. Built from solid carbide with a Zplus coating, this 2-flute tool features a 0.2500-inch mill diameter and a 0.0425-inch program radius that supports high-feed toolpaths with low axial depth of cut and high feed rates. The reduced-neck geometry extends reach while maintaining rigidity. The 84453 is suited for CNC machining centers running aluminum in both production and job-shop environments.

This end mill fits into the High Feed End Mills - Aluminum - Reduced Neck series. The reduced neck and 1.5000-inch reach length make it well suited for slotting, profiling, and pocketing operations where tool clearance in deeper cavities is required. The 0.2500-inch length of cut keeps the active cutting zone compact, which supports stable high-feed engagement. Machinists working aluminum components in aerospace, automotive, and general manufacturing will find this geometry appropriate for high-efficiency roughing and semi-finishing strategies.

Key Features

• Solid carbide construction for stiffness and wear resistance in aluminum
• Zplus coating reduces built-up edge and improves chip evacuation in non-ferrous materials
• 2-flute design provides large chip clearance at elevated feed rates
• 0.0425-inch program radius enables high-feed toolpath strategies with reduced cutting forces
• Reduced-neck geometry with 1.5000-inch reach for improved access in deeper features
• 1/4-inch shank diameter compatible with standard ER and shrink-fit toolholders

Compatibility

Designed for use in CNC machining centers with standard 1/4-inch bore toolholders; part of the HELICAL SOLUTIONS High Feed End Mills - Aluminum - Reduced Neck series.

Installation Notes

This tool is installed by a machinist or toolroom technician into a compatible 1/4-inch collet, shrink-fit, or hydraulic toolholder. Ensure the toolholder bore and collet are clean and free of chips before seating the shank. Confirm runout at the toolholder is within acceptable limits before engaging the cut, as excessive runout accelerates tool wear on carbide end mills. Follow the tool manufacturer's recommended speeds and feeds for the specific aluminum alloy being machined.
