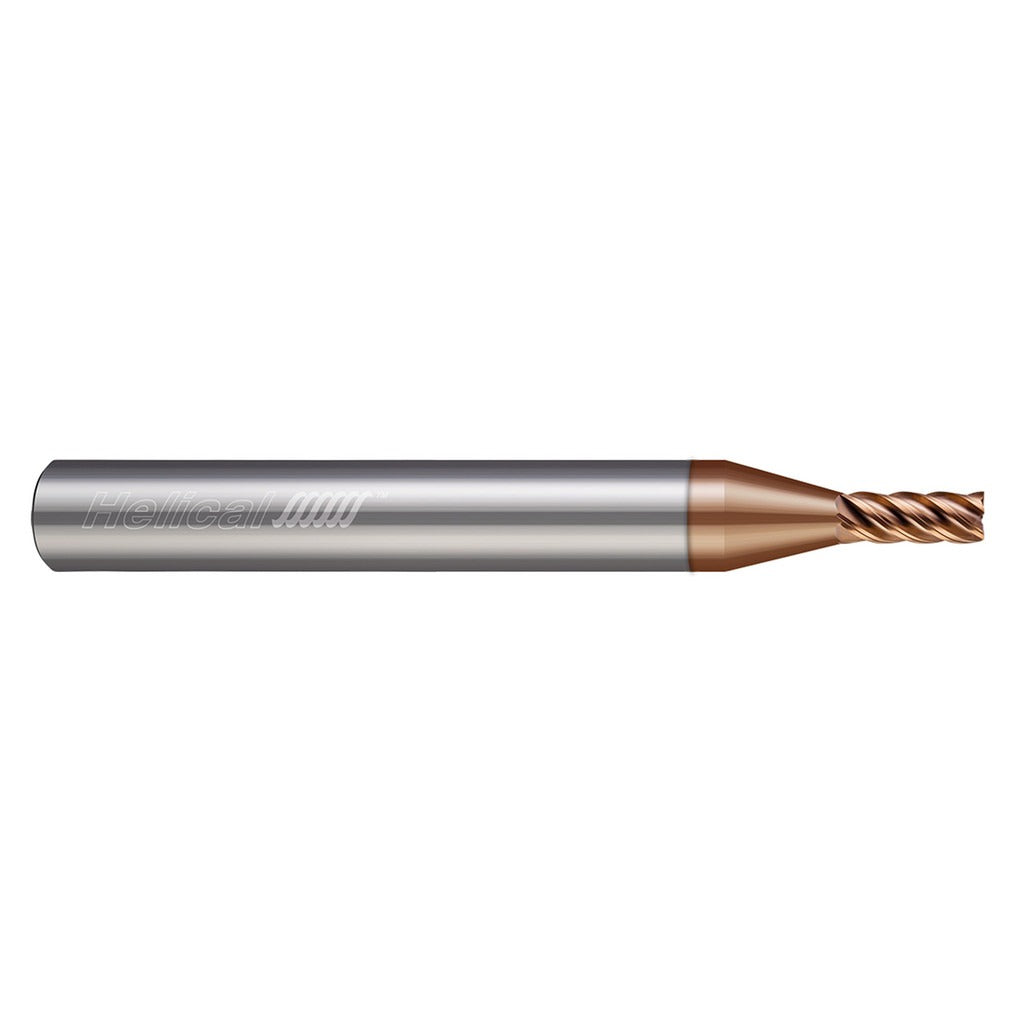

Helical Solutions 84086 Square End Mill 1/16 in 5 Flute Carbide

Product Description

The HELICAL SOLUTIONS 84086 is a 5-flute solid carbide square end mill designed for precision milling in demanding machining applications. With a 1/16 inch (0.0625 inch) cutting diameter and a 5/16 inch length of cut, this tool is engineered for fine-feature work in tight geometries. The Tplus coating improves wear resistance and performance in ferrous and non-ferrous materials. A variable index flute spacing reduces harmonic vibration during cutting, contributing to improved surface finish and tool life. The straight cylindrical 1/4 inch shank provides secure clamping in standard collet or end mill holders.

This end mill is suited for CNC machining centers and manual mills where small-diameter precision cutting is required. Typical applications include slotting, profiling, and contouring in molds, dies, and precision components. The 5-flute geometry increases the number of cutting edges in contact with the workpiece, which supports higher feed rates compared to standard 4-flute tools of the same diameter. The right-hand cut and right-hand helical flutes are standard for conventional CNC programming. Machinists and tooling specialists working in job shops, aerospace, medical, or general manufacturing environments will find this tool suitable for fine-detail work.

Key Features

• 5-flute solid carbide construction for rigidity and wear resistance in precision applications
• Tplus coating enhances surface hardness and reduces tool wear in ferrous materials
• Variable index flute spacing reduces vibration and chatter during cutting operations
• Center-cutting design allows plunge entry into workpiece material
• Right-hand cut with right-hand helical flutes for standard CNC compatibility
• Straight cylindrical 1/4 inch shank fits common collet and end mill holder systems

Compatibility

Designed as a direct-fit replacement or new-install solid carbide square end mill for CNC machining centers and manual mills accepting a 1/4 inch straight cylindrical shank with standard collet or end mill holders.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the machine spindle is fully stopped and locked out before changing tooling. Verify collet condition and holder cleanliness before seating the shank to avoid runout. Follow machine manufacturer torque specifications for collet nut tightening and confirm tool projection matches programmed depth-of-cut requirements before initiating a cut.
