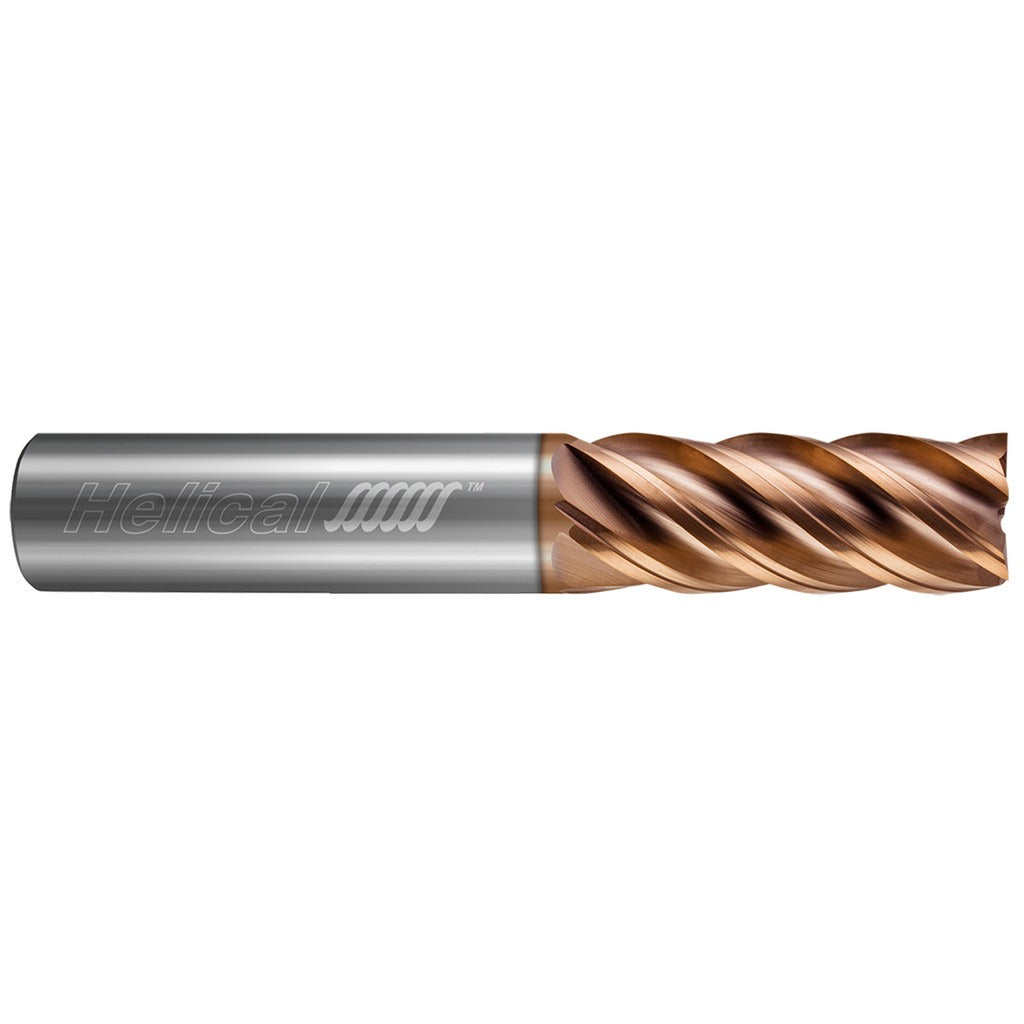

Helical Solutions 82949 Square End Mill 0.125in 5 Flute Carbide

Product Description

The HELICAL SOLUTIONS 82949 is a single-end square end mill engineered for demanding cutting applications in stainless steel, steel, and cast iron. Built from solid carbide and finished with a Tplus coating, this tool delivers consistent performance in high-temperature and work-hardening materials where lesser tooling fails prematurely. It runs a 5-flute, variable-index geometry in a right-hand cutting and right-hand helical flute configuration. The cutter diameter is 0.125 inches with a matching 0.125-inch straight shank, a 0.75-inch length of cut, and a 2.5-inch overall length. Centercutting capability allows plunge entry. This end mill is used by machinists and tool-and-die professionals in CNC milling operations.

This end mill is intended for precision milling of stainless steel, carbon and alloy steel, and cast iron in both production and job-shop environments. The variable-index flute spacing reduces harmonic chatter, making it well suited for side milling, slotting, and finishing passes in challenging materials. The 0.75-inch length of cut provides adequate reach for shallow-to-medium depth pockets and profiles without sacrificing rigidity at this diameter. It is a good fit for shops running tight-tolerance stainless and high-temp alloy components on vertical machining centers and CNC mills.

Key Features

• 5-flute variable-index geometry reduces chatter in stainless steel and cast iron
• Solid carbide construction provides rigidity and heat resistance at small diameters
• Tplus coating extends tool life in abrasive and work-hardening materials
• Centercutting design allows plunge milling capability
• Right-hand cut and right-hand helical flute for standard CNC spindle use
• Straight shank fits standard collets and end mill holders for 0.125-inch bore

Compatibility

Designed for use in CNC milling operations targeting steel, stainless steel, and cast iron workpieces. Part of the Helical Solutions End Mills for Stainless and High Temp 5-Flute Square Variable Pitch series.

Installation Notes

Installation and tool changes should be performed with the machine spindle fully stopped and the control in an e-stop or tool-change state. Use a properly sized collet or end mill holder matched to the 0.125-inch shank diameter to ensure concentricity and prevent tool pullout. Verify runout with a dial indicator before commencing a production cut, as runout is especially critical at this small diameter. Follow the tool manufacturer and machine builder guidelines for feeds, speeds, and depth-of-cut parameters when programming cuts in stainless steel or high-temp alloys.
