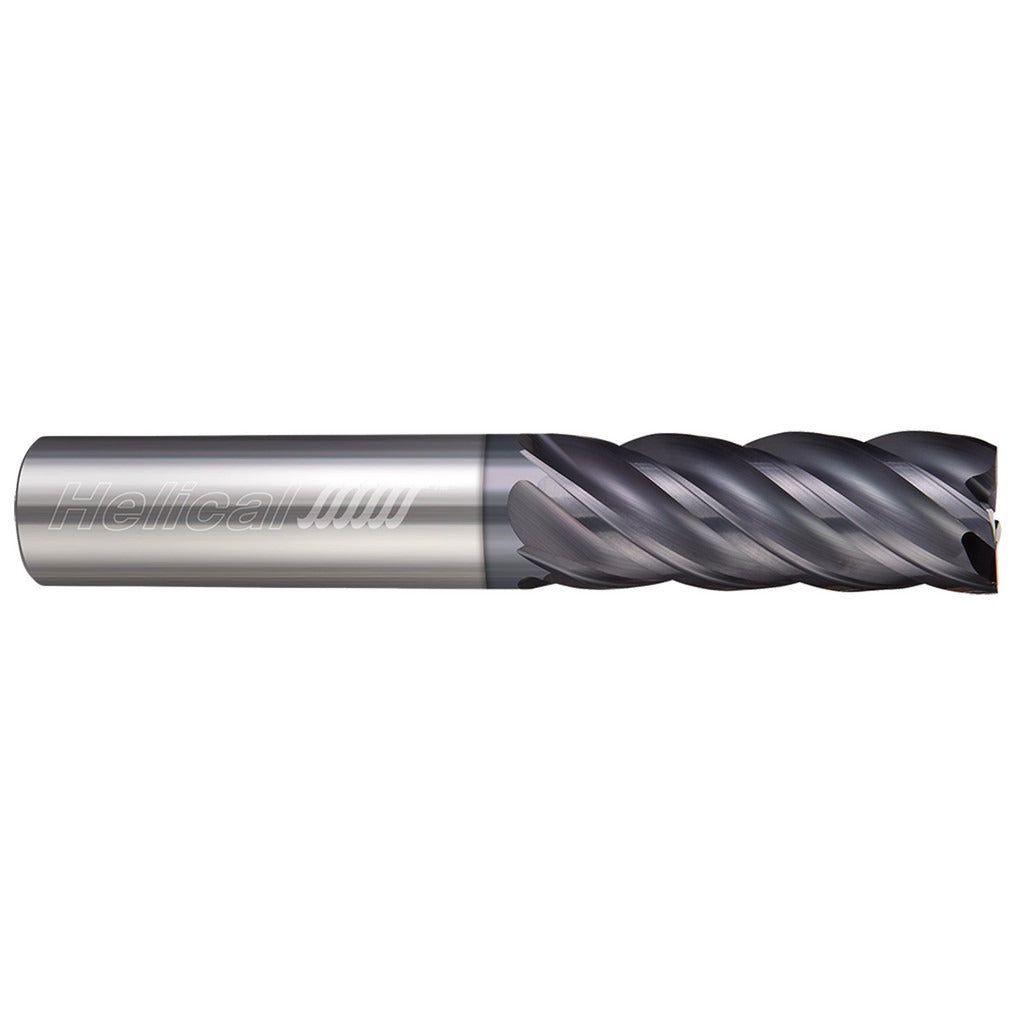

Helical Solutions 81715 Square End Mill 1/2 in 5 Flute Carbide

Product Description

The HELICAL SOLUTIONS 81715 is a 5-flute solid carbide square end mill designed for high-performance milling in ferrous and non-ferrous materials. It features a 1/2-inch mill diameter with a 2.5-inch length of cut and a 5-inch overall length. The APLUS coating improves wear resistance and surface finish during extended cutting operations. A variable index flute geometry reduces harmonic vibration, enabling higher feed rates and better tool life in demanding production environments. This end mill is installed and operated by machinists, tool-and-die makers, and CNC programmers working with vertical or horizontal machining centers.

This end mill suits general-purpose and high-efficiency milling applications including slotting, profiling, and pocketing in steel, stainless steel, cast iron, and similar materials. Its 5-flute configuration supports higher chip loads per revolution compared to 4-flute designs, making it well-suited for semi-finish and finish passes on production runs. The straight cylindrical shank fits standard ER collet chucks and end mill holders accepting a 1/2-inch bore. Right-hand cut and right-hand helix flute direction is standard. The centercutting geometry allows plunge entry where required by the operation.

Key Features

• 5-flute helical design increases material removal rate versus 4-flute alternatives
• APLUS coating provides enhanced wear resistance and extended tool life
• Variable index spacing reduces chatter and harmonic vibration during cuts
• Centercutting geometry permits plunge milling entry
• Right-hand cut with right-hand helix flute direction
• Straight cylindrical shank compatible with standard 1/2-inch bore toolholders

Compatibility

Designed for use in standard ER collet chucks, shrink-fit holders, and set-screw end mill holders with a 1/2-inch bore, as used on vertical and horizontal CNC machining centers.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and locked out before seating or removing the tool from the holder. Verify runout with a dial indicator after clamping to confirm concentricity within the machine and holder specifications. Follow the tool manufacturer and machine builder guidelines for feed rate, spindle speed, and depth-of-cut parameters appropriate to the workpiece material.
