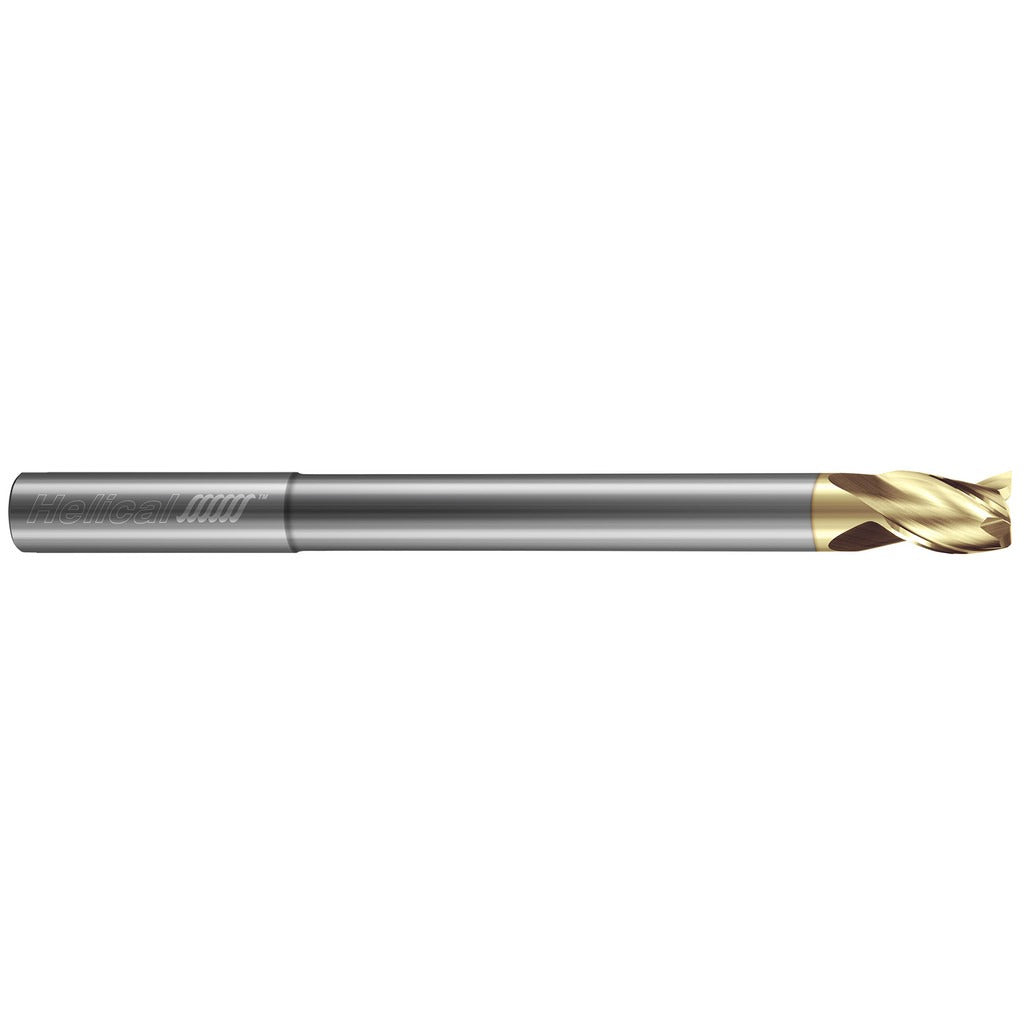

Helical Solutions 81394 Square End Mill 1/2 in 3 Flute Carbide

Product Description

The HELICAL SOLUTIONS 81394 is a single-end, solid carbide square end mill designed for high-performance milling in aluminum and non-ferrous materials. It features a 1/2 inch cutting diameter, a 5/8 inch length of cut, and a 35-degree right-hand helical flute geometry across three flutes. The reduced neck design extends usable reach to 2.75 inches, allowing access to deeper pockets and stepped features without sacrificing rigidity. A ZrN (Zplus) coating reduces built-up edge and promotes clean chip evacuation in aluminum, minimizing the need for frequent tool changes. Centercutting capability supports plunge and ramping entry strategies.

This end mill is built for machining aluminum alloys and other non-ferrous materials in production and job-shop environments. The reduced neck and extended reach configuration makes it well suited for deep pocket milling, cavity work, and finishing passes where a standard-length tool cannot reach. The straight 1/2 inch shank fits standard ER and side-lock toolholders found on vertical machining centers and CNC routers. Machinists and tool-and-die professionals working with aluminum extrusions, cast housings, and structural plate will find the geometry and coating combination effective for high-speed passes at elevated surface footage.

Key Features

• Solid carbide construction for rigidity and wear resistance in non-ferrous applications
• ZrN (Zplus) coating reduces aluminum adhesion and extends tool life
• 35-degree right-hand helix promotes aggressive chip evacuation in aluminum
• Reduced neck design provides 2.75 inch reach for deep pocket access
• Centercutting geometry allows direct plunge and ramp entry
• Three-flute configuration balances chip load and surface finish in aluminum

Compatibility

Designed for use with aluminum and non-ferrous workpiece materials. Part of the Helical Solutions End Mills for Aluminum - 3 Flute - Square - 35 deg Helix - Reduced Neck series. Accepts standard 1/2 inch straight-shank toolholders.

Installation Notes

Installation is performed by a machinist using a compatible 1/2 inch ER collet chuck, hydraulic, or milling chuck toolholder. Ensure the shank is fully seated and the toolholder is torqued to the machine spindle manufacturer specification before running. Verify runout with a dial indicator before engaging the workpiece, as excessive runout accelerates edge wear on carbide tooling. Always confirm spindle speed and feed rate are appropriate for the workpiece material and depth of cut before beginning a cut cycle.
