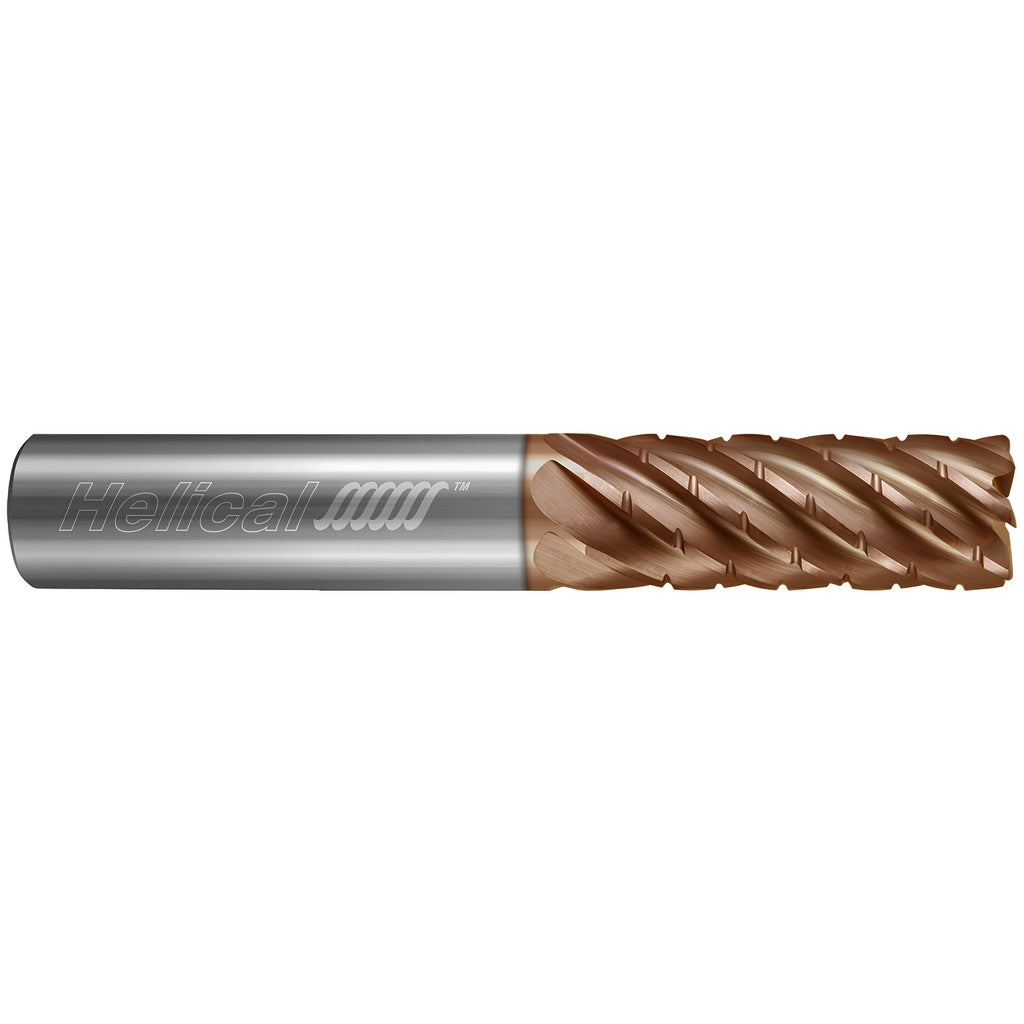

Helical Solutions 59931 Corner Radius End Mill 6 Flute Carbide

Product Description

The HELICAL SOLUTIONS 59931 is a 6-flute, solid carbide corner radius end mill engineered for demanding material removal in stainless steel, high-temperature alloys, and hardened steel. It features a 0.5-inch mill diameter, a 0.06-inch corner radius, and a 0.625-inch length of cut. The HEV-6 series uses a variable pitch design to reduce harmonic vibration during aggressive cuts, supporting both roughing and finishing operations in a single tool. Tplus PVD coating enhances wear resistance and heat stability at the cutting edge. The tool measures 2.5 inches overall with a straight cylindrical 0.5-inch shank, and weighs approximately 0.229 pounds.

This end mill is suited for aerospace, medical, and industrial machining applications where tight tolerances and difficult workpiece materials are routine. It excels in side milling, slotting, and profiling operations on stainless steel and high-temperature alloys such as Inconel, titanium, and similar nickel- or cobalt-based materials. The centercutting geometry allows plunge entry. It is intended for use in high-precision toolholders to maximize rigidity and minimize runout, keeping TIR within the rated 0.0005-inch maximum.

Key Features

• 6-flute variable pitch geometry reduces chatter and vibration during heavy cuts
• Solid carbide construction provides rigidity and heat resistance in difficult alloys
• Tplus PVD coating improves edge wear life in stainless steel and high-temp materials
• 0.06-inch corner radius extends tool life and reduces stress concentration at corners
• Centercutting design permits plunge milling without a pre-drilled hole
• Right-hand cut, right-hand helical flutes in a stub length for increased stiffness

Compatibility

Designed for use with high-precision toolholders. Primary workpiece materials include stainless steel, high-temperature alloys, and hardened steel. Secondary materials include non-ferrous metals and hard materials. Part of the Helical Solutions HEV-6 series.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Seat the shank fully in a high-precision collet or toolholder and verify runout does not exceed the rated TIR maximum before cutting. Ensure the spindle and machine are at a full stop before tool changes. Confirm feed rates, speeds, and depth of cut are appropriate for the workpiece material and machine rigidity before beginning any cut.
