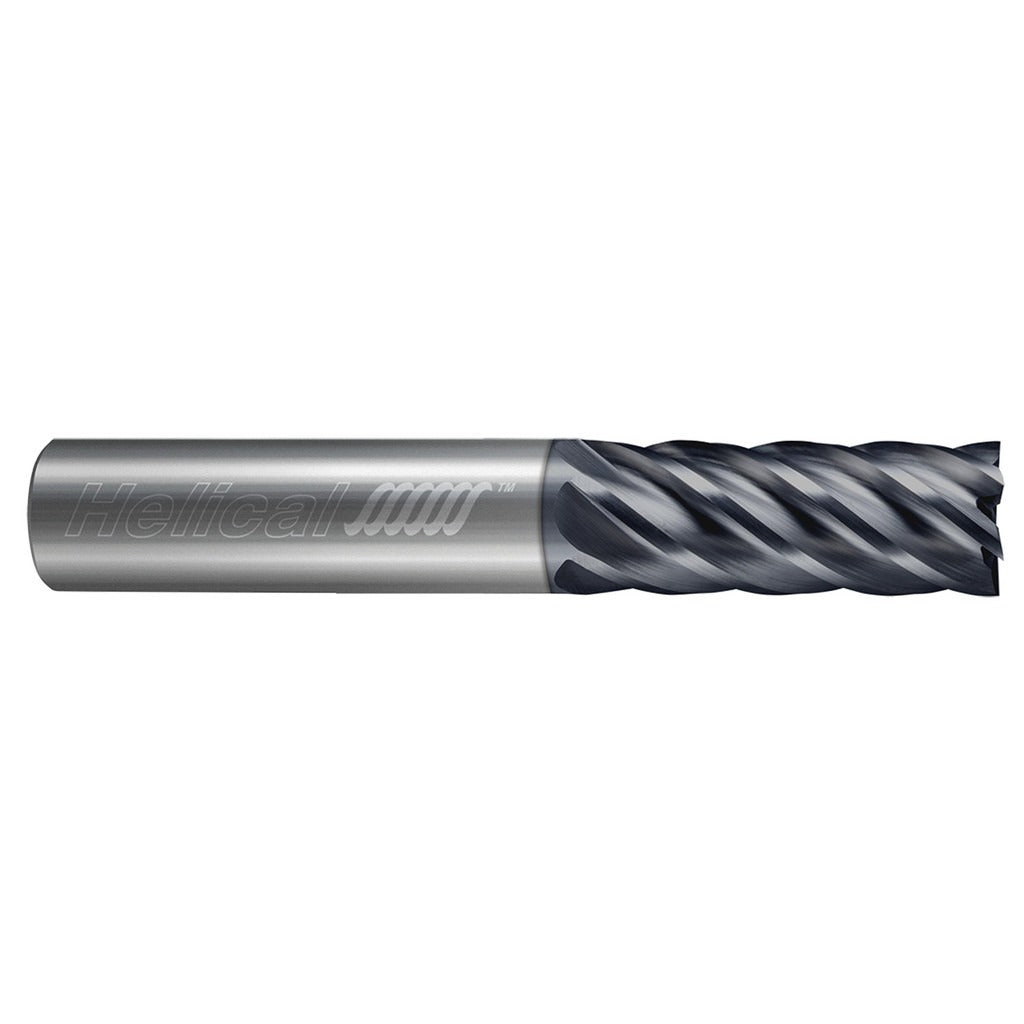

Helical Solutions 59251 Square End Mill 1/4 in 6 Flute Carbide

Product Description

The HELICAL SOLUTIONS 59251 is a single-end, 6-flute square end mill engineered for high-performance milling in ferrous and difficult-to-machine materials. Built from solid carbide and finished with an APLUS coating, it is designed to hold up under the heat and cutting pressure generated when machining steel, stainless steel, cast iron, and high-temperature alloys. The 0.2500-inch mill diameter pairs with a 0.5000-inch length of cut and a 37-degree helix angle. Variable index geometry reduces harmonic chatter, extending tool life and improving surface finish in demanding production environments. CNC machinists and toolmakers are the primary users of this tool.

This end mill is suited for roughing and finishing passes on steel and stainless steel components in job shop and production machining settings. The 6-flute configuration supports higher feed rates at appropriate chip loads, making it practical for steels that require aggressive material removal without sacrificing finish quality. Primary workpiece material categories include steel (P), stainless steel (M), cast iron (K), and high-temperature alloy (S) per ISO material classification. It is a single-end tool with a straight shank, right-hand cut, and right-hand flute direction. No coolant-through capability is present, so flood or mist coolant applied externally is the standard approach for heat management.

Key Features

• Solid carbide construction for rigidity and wear resistance in ferrous materials
• APLUS coating reduces friction and thermal buildup at the cutting edge
• 6-flute design supports higher feed rates compared to 4-flute tooling in steel
• Variable index pitch geometry minimizes chatter and vibration during the cut
• 37-degree helix angle improves chip evacuation and cutting efficiency
• Center-cutting capable, allowing plunge entry into the workpiece

Compatibility

Part of the HELICAL SOLUTIONS End Mills for Steels - 6 Flute - Square - Variable Pitch series. Designed for use in steel, stainless steel, cast iron, and high-temperature alloy applications per the ISO P, M, K, and S material classifications stated by the manufacturer.

Installation Notes

Installation is performed by CNC machinists and toolroom personnel. Secure the straight shank in a properly sized collet or end mill holder to the full recommended grip depth before operation. Verify spindle runout is within acceptable tolerance before beginning a cut, as excess runout accelerates edge wear on carbide tooling. No coolant-through path is present on this tool, so external flood or mist coolant should be directed at the cutting zone to manage heat and assist chip clearance.
