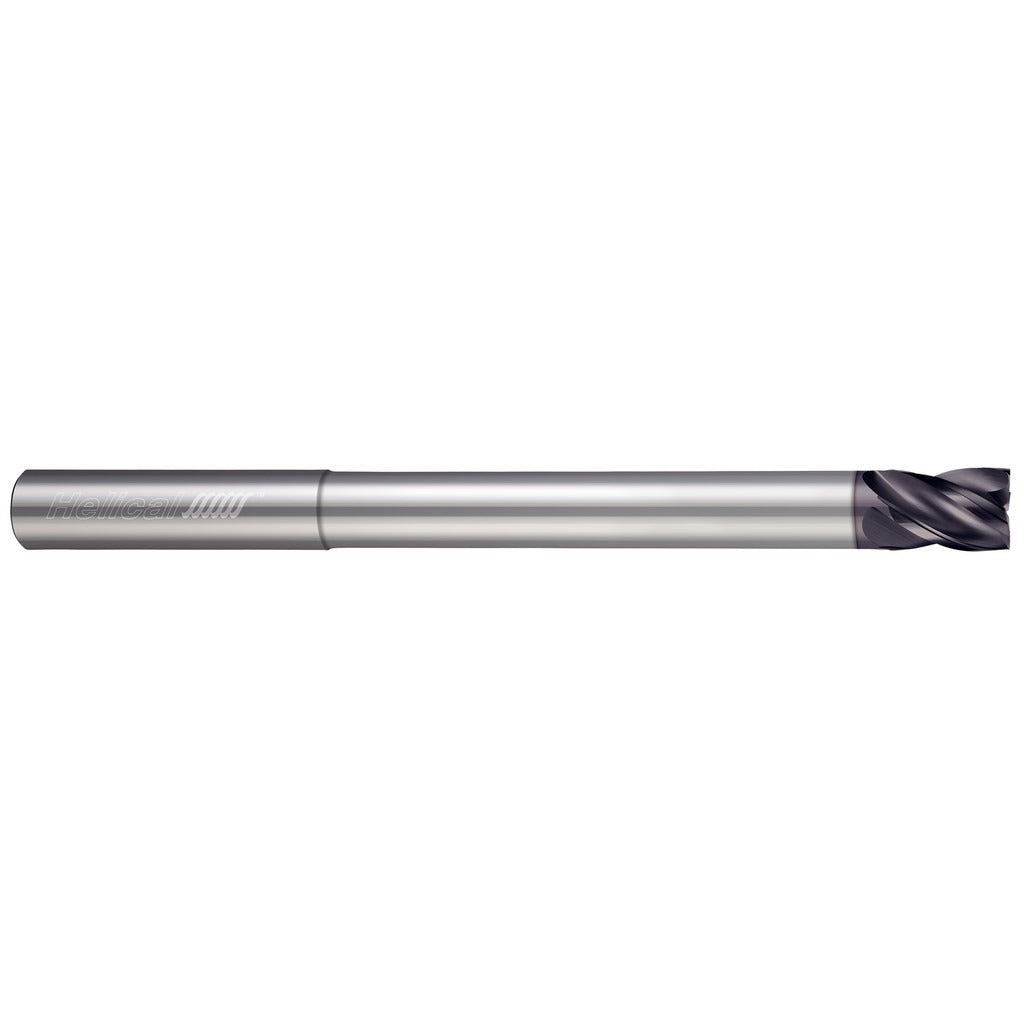

Helical Solutions 52347 Square End Mill 0.75 in 4 Flute

Product Description

The HELICAL SOLUTIONS 52347 is a 4-flute solid carbide square end mill designed for high-performance milling in steel and ferrous alloys. It carries an APLUS coating for improved wear resistance and heat control at elevated cutting speeds. The variable index geometry reduces harmonic chatter, making it well-suited for aggressive material removal in CNC machining centers. With a 0.75 inch mill diameter and a 1 inch length of cut, this tool handles both roughing and finishing passes in a single setup. It is installed and operated by machinists and CNC programmers in job shop, production, and toolroom environments.

This end mill belongs to the Helical Solutions End Mills for Steels series — specifically the 4 Flute Square Variable Pitch Reduced Neck configuration. The reduced neck profile and 2.5 inch reach length allow access to deeper pockets and stepped features without sacrificing rigidity. The 0.75 inch straight-cylindrical shank seats directly into standard ER or hydraulic toolholders. Centercutting capability supports both plunge and ramping entry strategies. It is oriented for right-hand cutting with a right-hand helical flute direction.

Key Features

• Solid carbide construction provides rigidity and tool life in steel milling applications
• APLUS coating improves surface hardness and reduces built-up edge at higher feeds and speeds
• Variable index flute spacing reduces chatter and vibration during heavy cuts
• Reduced neck geometry enables extended reach of 2.5 inches into deep pockets
• Centercutting design supports plunge entry, ramping, and helical interpolation
• Right-hand cut, right-hand helix — standard orientation for conventional CNC setups

Compatibility

Part of the Helical Solutions End Mills for Steels — 4 Flute Square Variable Pitch Reduced Neck series. Designed for use in CNC machining centers with toolholders accepting a 0.75 inch straight-cylindrical shank. Best suited for steel and ferrous alloy workpiece materials.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Secure the shank fully into the toolholder to the recommended gauge depth before tightening; insufficient clamping length increases runout and accelerates tool wear. Confirm spindle direction and tool offset values in the control before first use. Do not exceed the tool manufacturer's published feeds and speeds for the specific workpiece material and coating.
