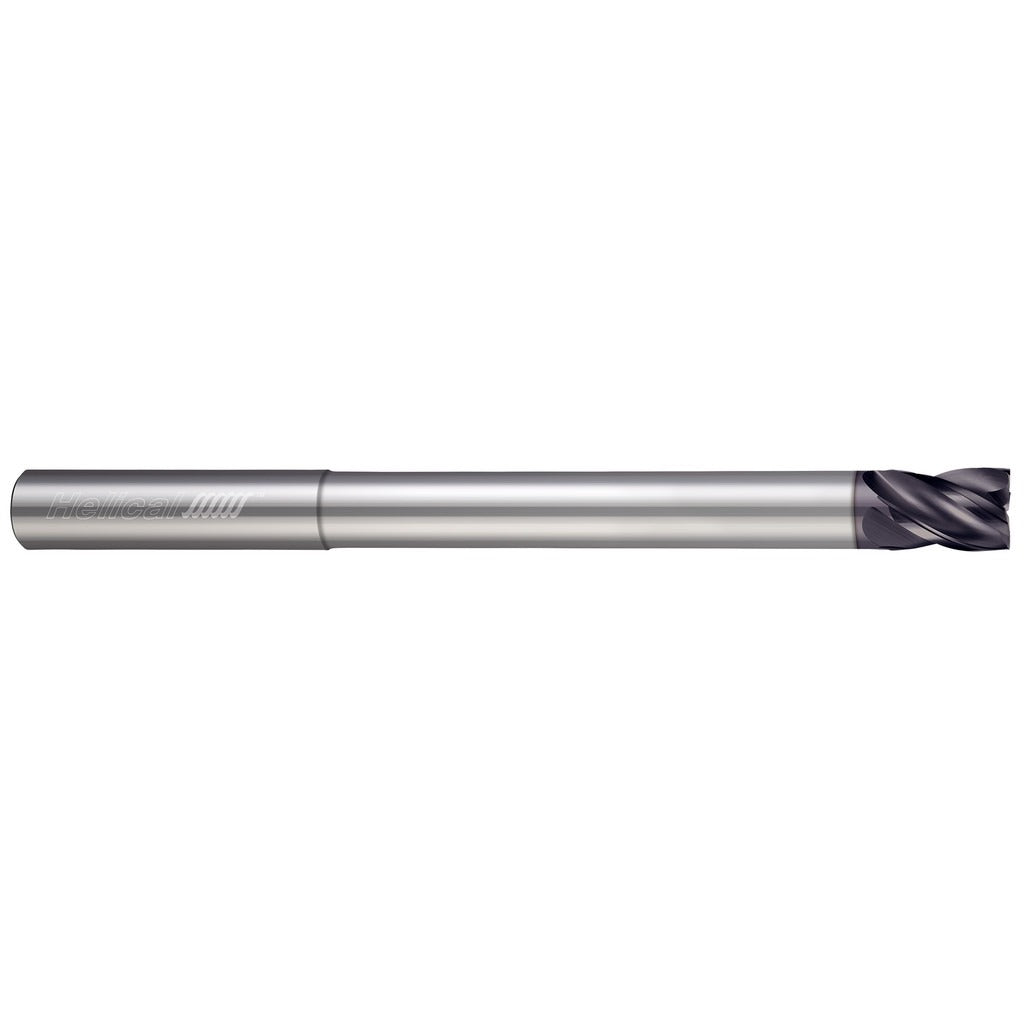

Helical Solutions 52137 Square End Mill 4 Flute 0.25 in

Product Description

The HELICAL SOLUTIONS 52137 is a 4-flute solid carbide square end mill designed for high-performance milling in steel and ferrous alloys. It features a variable index (unequal flute spacing) geometry that reduces harmonic chatter during aggressive cuts, improving surface finish and tool life. The APLUS coating adds lubricity and heat resistance for extended performance in steel applications. With a 0.25-inch mill diameter and a 0.375-inch length of cut, this end mill is suited for finishing and light-to-medium roughing passes where precision and tool stability are critical. Licensed machinists and CNC programmers working in job shops, aerospace, and general manufacturing will recognize this as a purpose-built steel-cutting tool.

This end mill is built for steel milling applications in CNC machining centers and manual mills. The reduced neck geometry provides extended reach of 2.125 inches beyond the shank, allowing access to deep pockets and stepped features without a full-length reach tool. The straight-cylindrical shank at 0.25 inches seats directly in standard ER collets, end mill holders, or hydraulic chucks. It is centercutting, enabling plunge entry as well as conventional ramping and helical interpolation strategies.

Key Features

• Variable index flute spacing reduces chatter and improves stability at higher feed rates
• APLUS coating provides enhanced lubricity and thermal resistance for steel cutting
• Reduced neck design delivers 2.125 inches of reach for deep-pocket and stepped-feature work
• Centercutting geometry supports plunge milling, ramping, and helical entry
• Right-hand cut and right-hand helical flutes match standard CNC spindle rotation
• Solid carbide construction maintains rigidity and edge integrity at elevated cutting temperatures

Compatibility

Part of the HELICAL SOLUTIONS End Mills for Steels series: 4 Flute, Square, Variable Pitch, Reduced Neck. Designed for use in CNC machining centers with standard 0.25-inch collet or end mill holder tooling.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before changing tooling. Seat the straight shank fully into the collet or holder to the recommended gauge depth and torque the retention nut to the tool holder manufacturer's specification. Verify runout with a dial indicator before beginning a production cut, as excessive runout will reduce tool life significantly on carbide end mills.
