Helical Solutions 48586 Square End Mill 3/4 in 3 Flute Carbide

Product Description

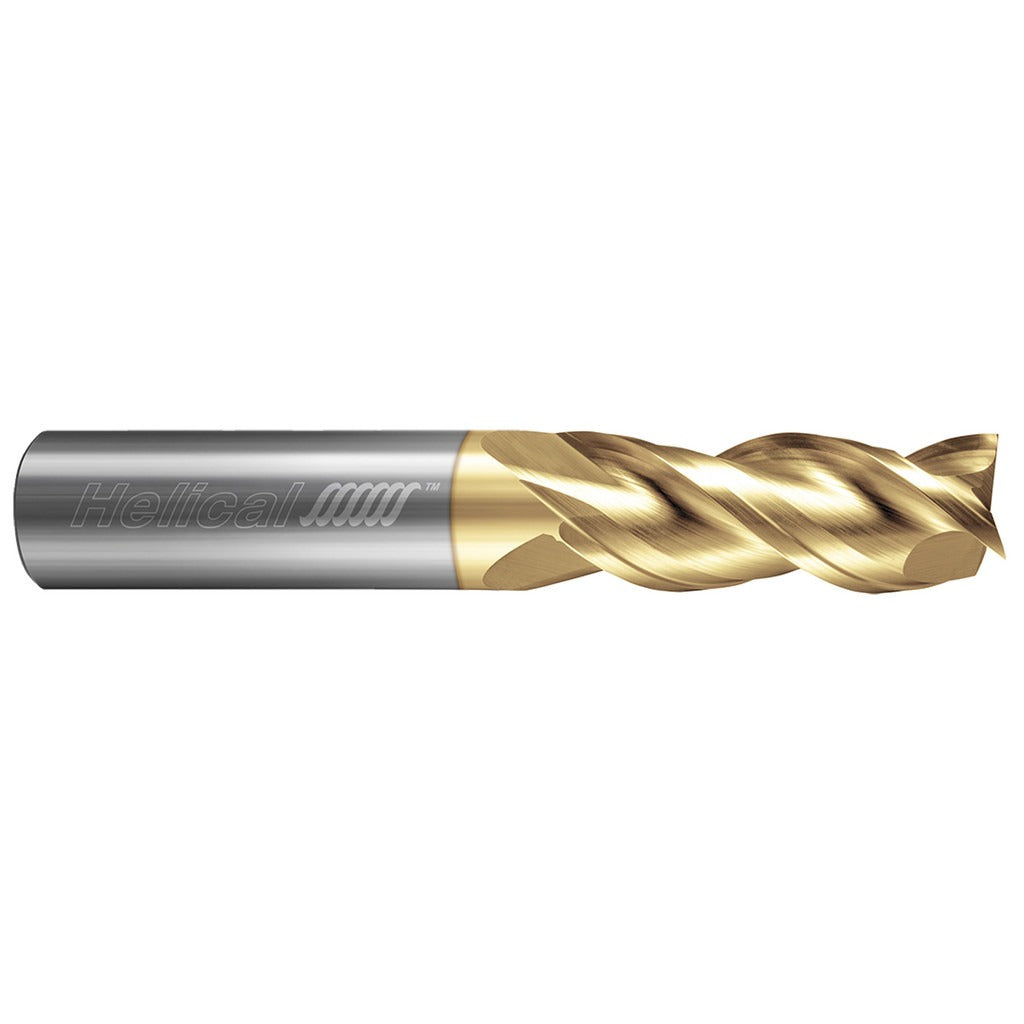

The HELICAL SOLUTIONS 48586 is a solid carbide square end mill designed for high-performance milling in metal, alloy, and composite materials. It features a 3/4 inch cutting diameter, a 1 inch length of cut, and three flutes with a 40-degree helix angle. The variable index geometry reduces harmonic vibration during cuts, improving surface finish and tool life. A Zplus coating provides added wear resistance and heat protection at the cutting edge. This end mill is a single-end tool with a right-hand cut and right-hand flute direction, suited for conventional and climb milling operations performed by machinists and CNC operators.

This end mill is used in CNC machining centers and manual knee mills for slotting, profiling, and peripheral milling. The 3/4 inch straight-cylindrical shank fits standard ER collet chucks and end mill holders commonly found in job shops, production facilities, and tool rooms. The 3 inch overall length and 1 inch length of cut make it well suited for shallow-to-moderate depth applications where rigidity and chatter control are priorities.

Key Features

• 3/4 inch cutting diameter with a 1 inch length of cut
• Three flutes with a 40-degree helix angle for efficient chip evacuation
• Variable index flute spacing reduces vibration and chatter
• Zplus coating improves wear resistance and thermal stability
• Center-cutting design allows plunge entry
• Solid carbide construction for hardness and rigidity

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide square end mill for standard 3/4 inch end mill holders and ER collet systems in CNC and manual milling applications.

Installation Notes

Installation is performed by machinists using standard end mill holders or collet chucks rated for the 3/4 inch shank diameter. Ensure the holder is clean and free of chips before seating the tool. Torque retention screws or collet nuts to the holder manufacturer's specification. Verify runout with a dial indicator before beginning the cut.
