Helical Solutions 30512W Square End Mill 0.5in 4 Flute Carbide

Product Description

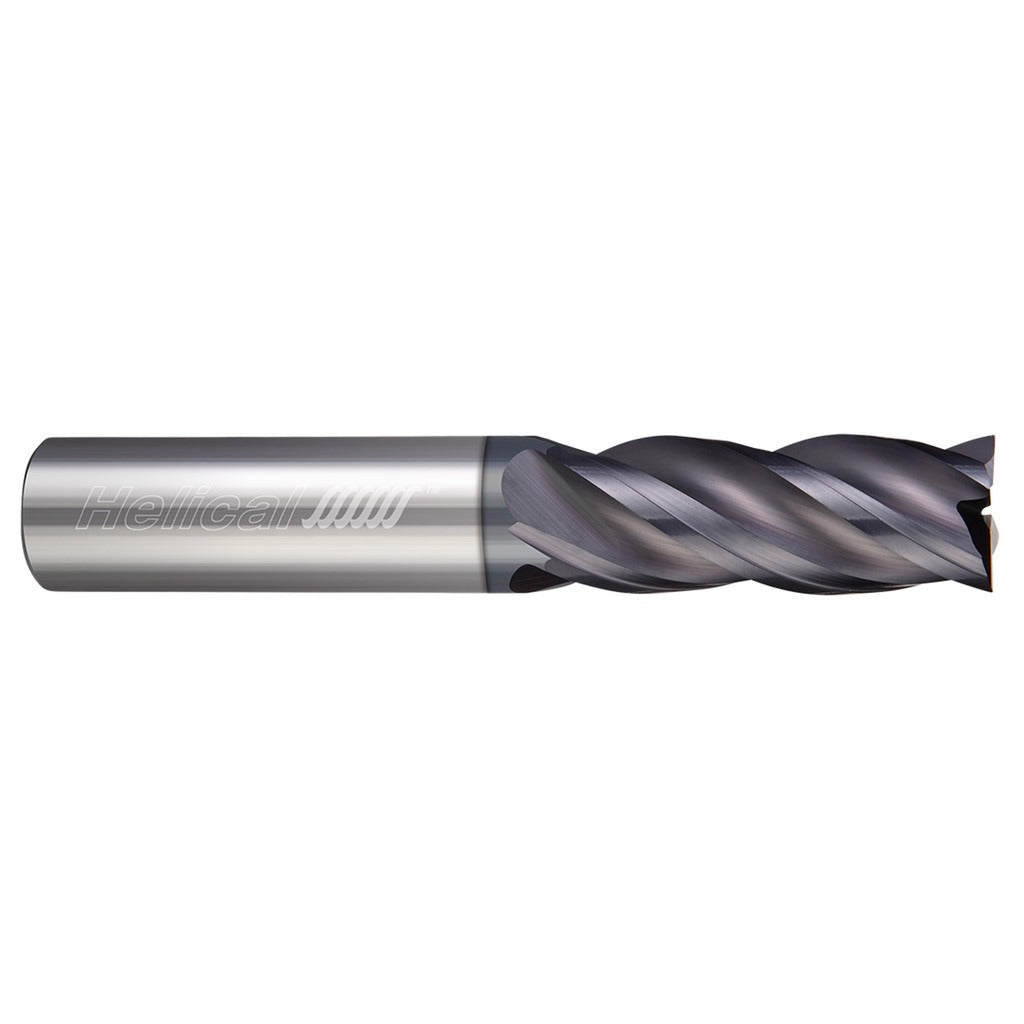

The HELICAL SOLUTIONS 30512W is a solid carbide square end mill designed for high-performance milling in steel and ferrous alloys. With a 0.5 inch cutting diameter, 1.0 inch length of cut, and 3.0 inch overall length, this tool delivers precision material removal in demanding machining environments. The APLUS coating improves heat resistance and surface lubricity, extending tool life in abrasive cuts. A variable index flute geometry reduces harmonic vibration, which helps maintain dimensional accuracy and surface finish quality in deep or aggressive passes. This end mill is run by machinists and toolroom professionals on CNC vertical and horizontal machining centers.

This tool is suited for milling operations on steels and similar ferrous materials in both job shop and production environments. The right-hand cutting and right-hand helical flute configuration make it compatible with standard CNC spindle setups. The straight cylindrical shank seats securely in standard collet chucks and end mill holders. Center-cutting capability allows for direct plunge entry, expanding its use in slotting, profiling, and pocket milling applications without a pre-drilled entry point.

Key Features

• Solid carbide construction for rigidity and wear resistance in steel milling
• APLUS coating for enhanced heat resistance and reduced friction at the cutting edge
• Variable index flute spacing reduces chatter and vibration during aggressive cuts
• Center-cutting design supports direct plunge milling
• Right-hand cut and right-hand helix for standard CNC spindle compatibility
• Straight cylindrical shank fits standard collet chucks and end mill holders

Compatibility

Designed as an OEM-style replacement or direct-use tooling option for CNC machining centers requiring a 0.5 inch diameter square end mill with a 0.5 inch straight shank. Optimized for use in end mills for steels applications per the 4-flute variable index series designation.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer guidelines. Ensure the spindle is fully stopped and the machine is in an e-stop or powered-down state before changing tooling. Seat the shank fully into the collet or end mill holder and torque the retention hardware to the tool holder manufacturer specification. Verify runout with a dial indicator before beginning a production cut.
