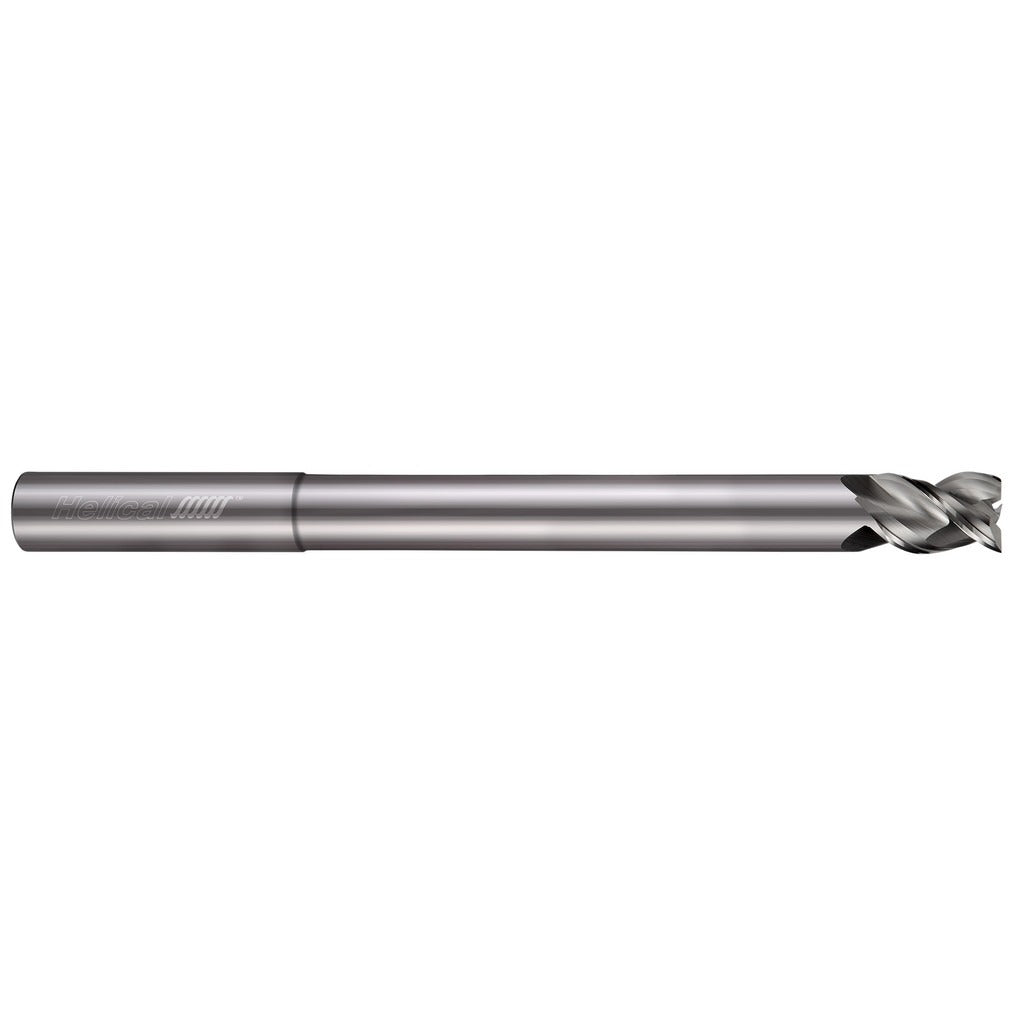

Helical Solutions 19210 Square End Mill 3/8 in 3 Flute Carbide

Product Description

The HELICAL SOLUTIONS 19210 is a solid carbide square end mill designed for high-performance aluminum machining. With a 3/8-inch cutting diameter, 3 flutes, and a 45-degree helix angle, this tool delivers efficient chip evacuation and smooth surface finishes in aluminum alloys. The reduced neck geometry extends reach to 1.125 inches while maintaining rigidity. At 4 inches overall length with a 1/2-inch length of cut, it fits standard toolholding setups on CNC machining centers and manual mills. It is centercutting and right-hand cutting with a right-hand flute direction, making it suitable for conventional slotting, profiling, and ramping operations.

This end mill is engineered specifically for aluminum applications where chip packing and built-up edge are primary concerns. The 45-degree helix promotes aggressive shearing action and rapid chip removal, reducing heat buildup in the cut zone. The reduced neck design allows access to deeper pockets and stepped features without sacrificing tool stability. Machinists working in aerospace, automotive, and general job shop environments will find this geometry well suited to finishing and semi-finishing passes in aluminum. The bright uncoated finish is standard for aluminum cutting, preventing material adhesion that coated tools can sometimes promote.

Key Features

• 3/8-inch cutting diameter with 1/2-inch length of cut for precise aluminum slotting and profiling
• 45-degree helix angle promotes aggressive shearing and efficient chip evacuation in aluminum
• Reduced neck geometry provides 1.125-inch reach for deep pocket and stepped-feature access
• 3-flute solid carbide construction balances chip clearance with core strength
• Centercutting design allows plunge entry without a pre-drilled hole
• Bright uncoated finish prevents aluminum adhesion and galling on cutting edges

Compatibility

Designed for use in the HELICAL SOLUTIONS End Mills for Aluminum series — 3 Flute, Square, 45-degree Helix, Reduced Neck. Compatible with standard straight-cylindrical 3/8-inch toolholders including collet chucks, end mill holders, and shrink-fit holders on CNC and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist following shop-standard toolholding procedures. Ensure the shank is fully seated to the recommended gauge length in the holder and that the collet or holder is torqued to the toolholder manufacturer's specification. Verify spindle runout before cutting to protect edge integrity on carbide tooling. Never exceed the tool manufacturer's recommended speeds and feeds for the specific aluminum alloy being machined.
